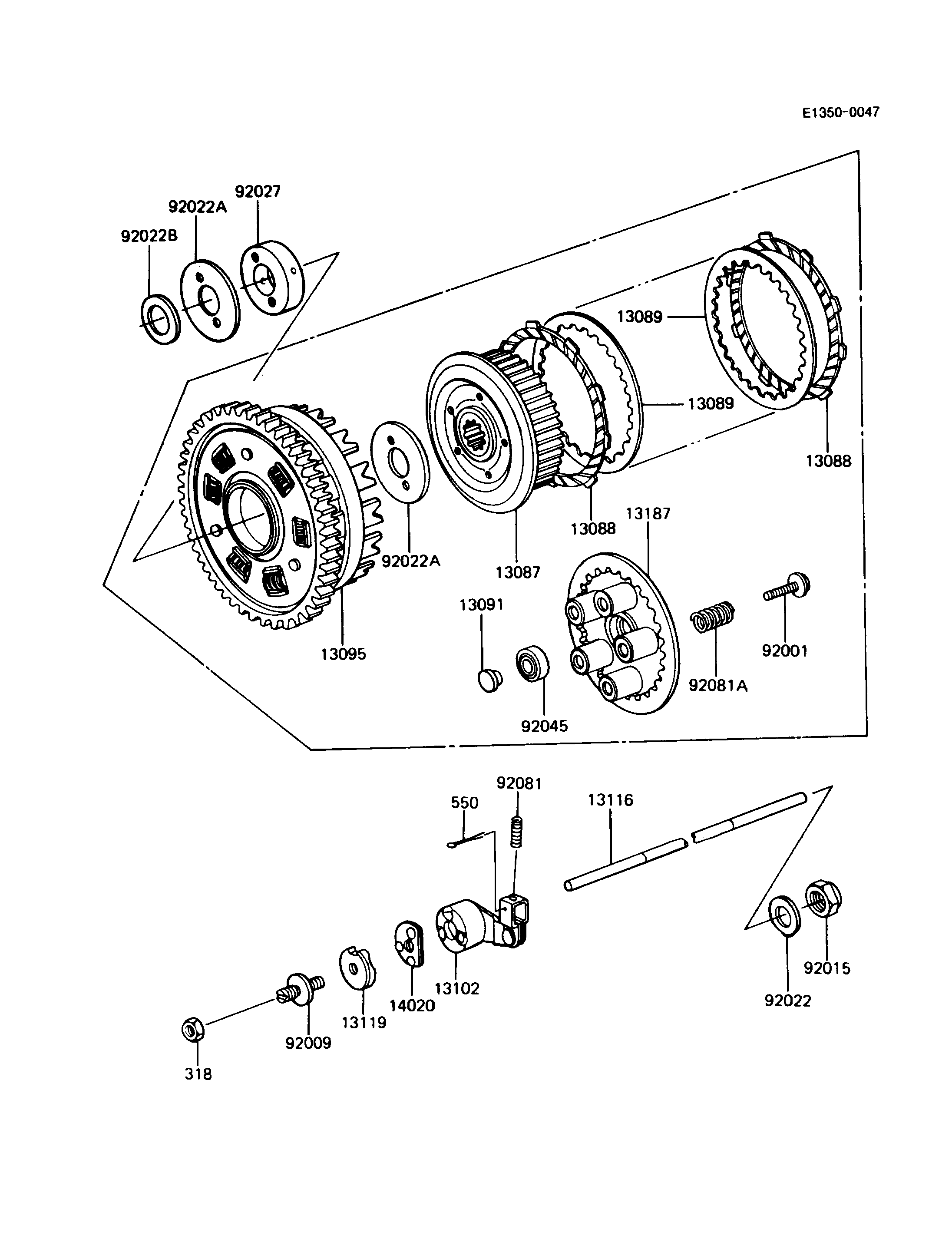

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HUB-CLUTCH 13087 13087-1015 1
PLATE-FRICTION 13088 13088-1013 9
PLATE-CLUTCH,T=2.3 13089 13089-1004 8
HOLDER,CLUTCH PUSH ROD 13091 13091-1085 1
HOUSING-COMP-CLUTCH 13095 13095-1037 1
RELEASE-COMP-CLUTCH 13102 13102-1012 1
ROD-PUSH,CLUTCH 13116 13116-1148 1
CAM-RELEASE,CLUTCH 13119 13119-1003 1
PLATE-CLUTCH OPERATING 13187 13187-1006 1
RETAINER,CLUTCH RELEASE 14020 14020-1091 1
BOLT,FLANGED,6X18 92001 92001-1066 5
SCREW,8MM 92009 92009-1009 1
NUT,20MM 92015 92015-1555 1
WASHER,20.3X36X2.3 92022 92022-1116 1
WASHER,CLUTCH THRUST 92022A 92022-1221 2
WASHER,25.3X36X2.5 92022B 92022-1223 1
COLLAR,25X57X16.1 92027 92027-1284 1
BEARING-BALL,6001C3ML01 92045 92045-1235 1
SPRING,CLUTCH RELEASE 92081 92081-069 1
SPRING,CLUTCH 92081A 92081-1033 5
NUT-HEX-SMALL,8MM 318 318B0800 1
PIN-COTTER,1.6X15 550 550D1615 1
