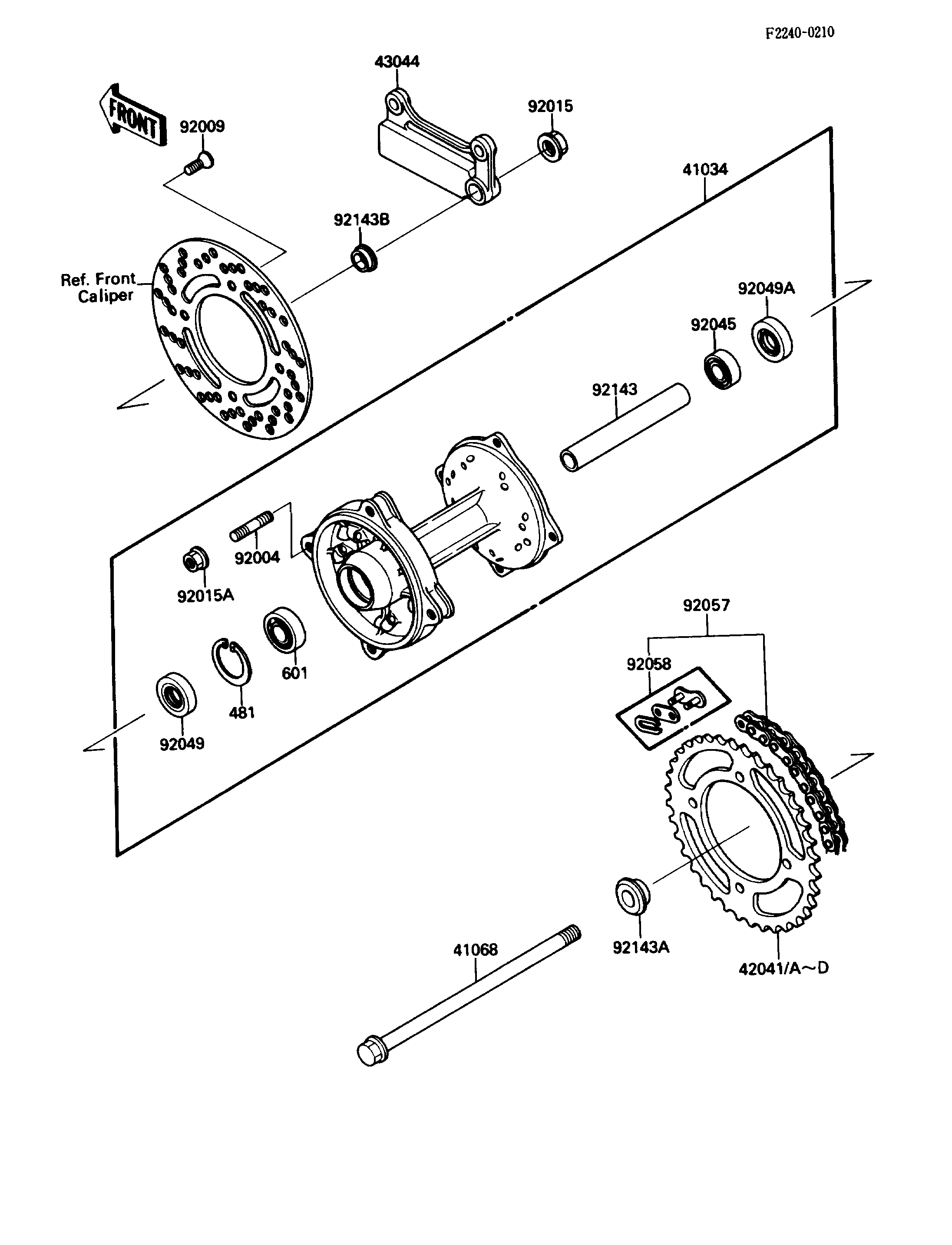

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM-ASSY,REAR BRAKE 41034 41034-1165 1
AXLE,RR 41068 41068-1251 1
SPROCKET-HUB,49T 42041 42041-1207 1 (OPTION)
SPROCKET-HUB,47T 42041A 42041-1226 1 (OPTION)
SPROCKET-HUB,48T 42041B 42041-1227 1
SPROCKET-HUB,50T 42041C 42041-1228 1 (OPTION)
SPROCKET-HUB,46T 42041D 42041-1301 1 (OPTION)
HOLDER-COMP-CALIPER 43044 43044-1073 1
STUD,8X16 92004 92004-1183 4
SCREW,6X10 92009 92009-1375 4
NUT,FLANGED,12MM 92015 92015-1156 1
NUT,FLANGED,LOCK,8MM 92015A 92015-1668 4
BEARING-BALL,TMB201LLUC3/2A 92045 92045-1062 1
SEAL-OIL,DD20377 92049 92049-1096 1
SEAL-OIL,DC17343.5 92049A 92049-1290 1
CHAIN,DRIVE,DID420MBK-1X120L 92057 92057-1251 1
JOINT-CHAIN 92058 92058-1053 1
COLLAR,12.2X17.3X110.5 92143 92143-1128 1
COLLAR,REAR AXLE,L=14.5 92143A 92143-1129 1
COLLAR,REAR AXLE,L=9 92143B 92143-1130 1
CIRCLIP-TYPE-C,37MM 481 481J3700 1
BEARING-BALL,#6201UUC3 601 601B6301UU 1
