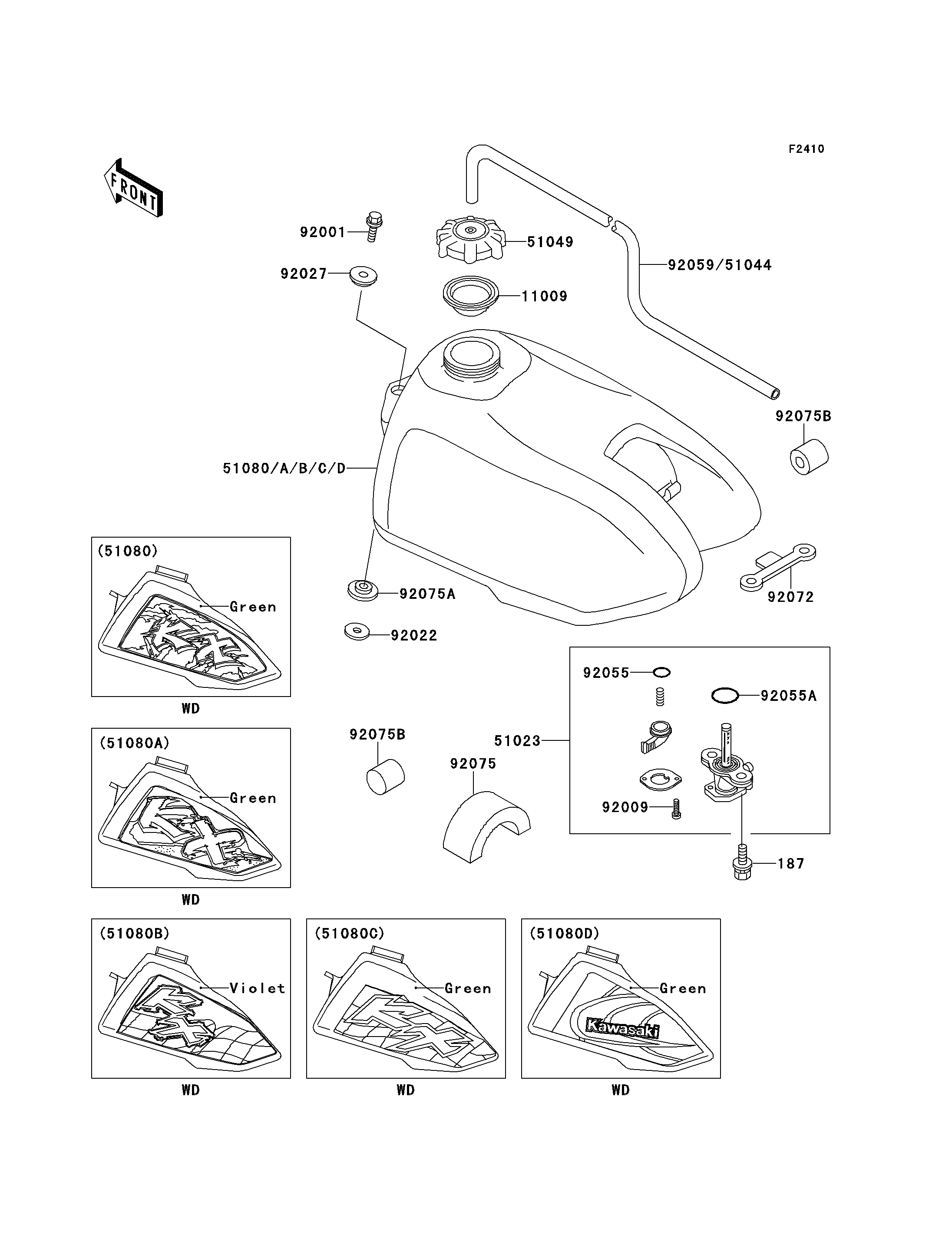

1997 KX60 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
187
11009
51023
51044
51049
51080C
92001
92009
92022
92027
92055
92055A
92072
92075
92075A
92075B
92075B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WSP 187 187B0616 2
GASKET,FUEL TANK CAP 11009 11009-1452 1
TAP-ASSY,FUEL 51023 51023-1115 1
TUBE-ASSY 51044 51044-1185 1
CAP-TANK,FUEL 51049 51049-1006 1
TANK-COMP-FUEL,LIME GREEN 51080C 51080-5324-6W 1
BOLT,W/WASHER,6X12 92001 92001-1516 1
SCREW,3X8 92009 92009-1386 2
WASHER,10X22X3.2 92022 92022-176 1
COLLAR,L=4.7 92027 92027-122 1
RING-O,FUEL TAP LEVER 92055 92055-1299 1
RING-O,FUEL TAP PACKING 92055A 92055-1300 1
BAND,FUEL TANK 92072 92072-1056 1
DAMPER,FUEL TANK 92075 92075-1382 1
DAMPER,FUEL TANK,FR 92075A 92075-1404 1
DAMPER 92075B 92075-243 2
