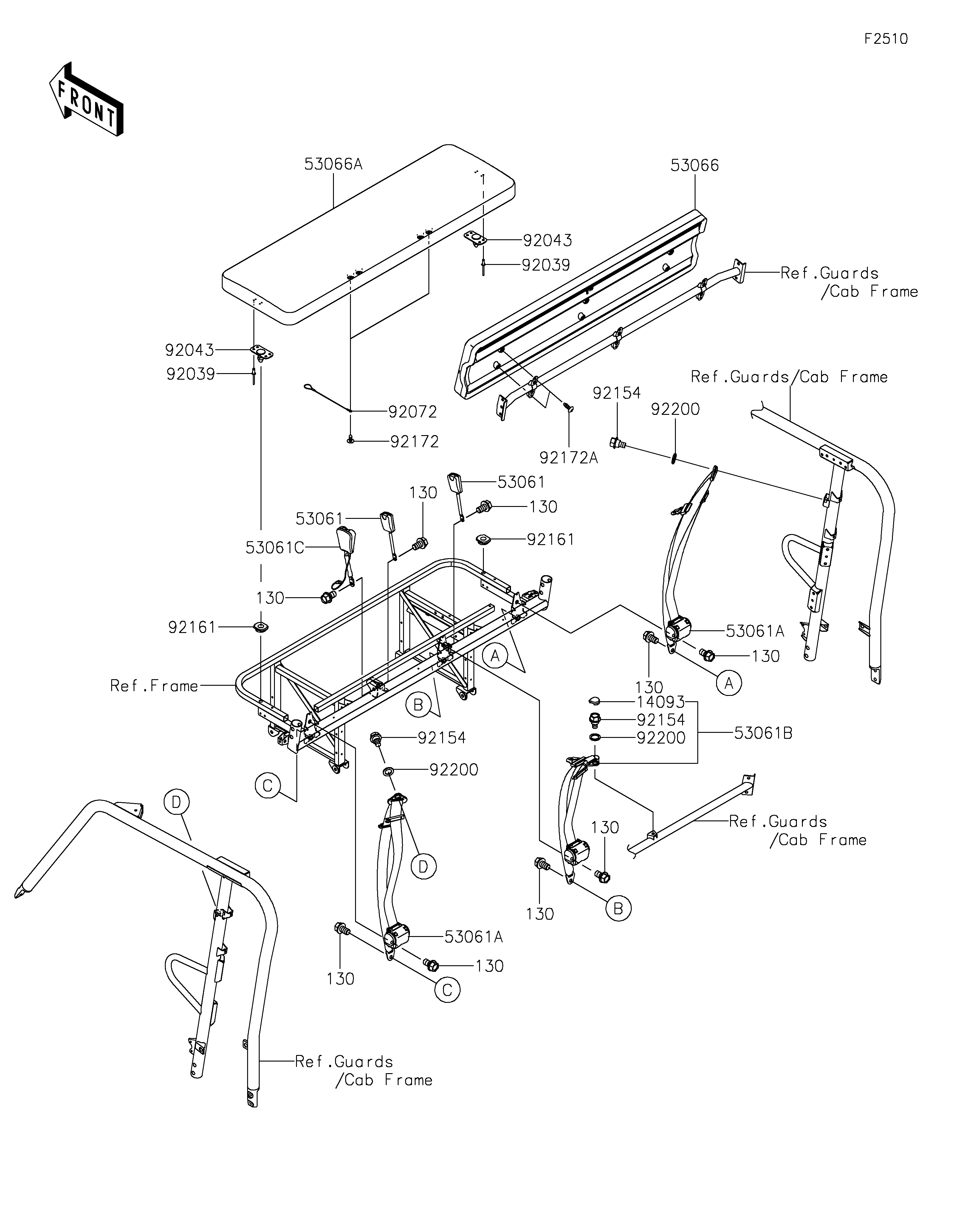

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,12X20 130 130BA1220 9
COVER,D-RING 14093 14093-1037 1
BELT-SEAT,BUCKLE 53061 53061-0039 2
BELT-SEAT,FR,LH&RH 53061A 53061-0340 2
BELT-SEAT,MIDDLE 53061B 53061-0341 1
BELT-SEAT,BUCKLE,SW. 53061C 53061-0364 1
SEAT-ASSY,BACK,BLACK 53066 53066-0426-MA 1
SEAT-ASSY,BOTTOM,BLACK 53066A 53066-0495-MA 1
RIVET 92039 92039-0747 8
PIN 92043 92043-0859 2
BAND 92072 92072-0769 2
BOLT,FLANGED,10X19.5 92154 92154-1959 3
DAMPER,10.5X30X8.2 92161 92161-1784 2
SCREW,6X16 92172 92172-0284 2
SCREW,TAPPING,6X20 92172A 92172-0488 6
WASHER,16X22X2 92200 92200-1798 3
