132
132
132
132
14037
14037A
39061
39061A
39062
39062A
39062B
39062C
39062D
39062E
49085
49085A
49131
49131A
92005
92037
92037
92037
92037
92075
92075
92075
92075
92152
92152
92152
92152
92153
92153
92153
92153
92153
92153
92153
92153
92153A
92153A
92170
92170
92170
92170
92170A
92170A
92171
92171
92192
92200
92200
92200
92200

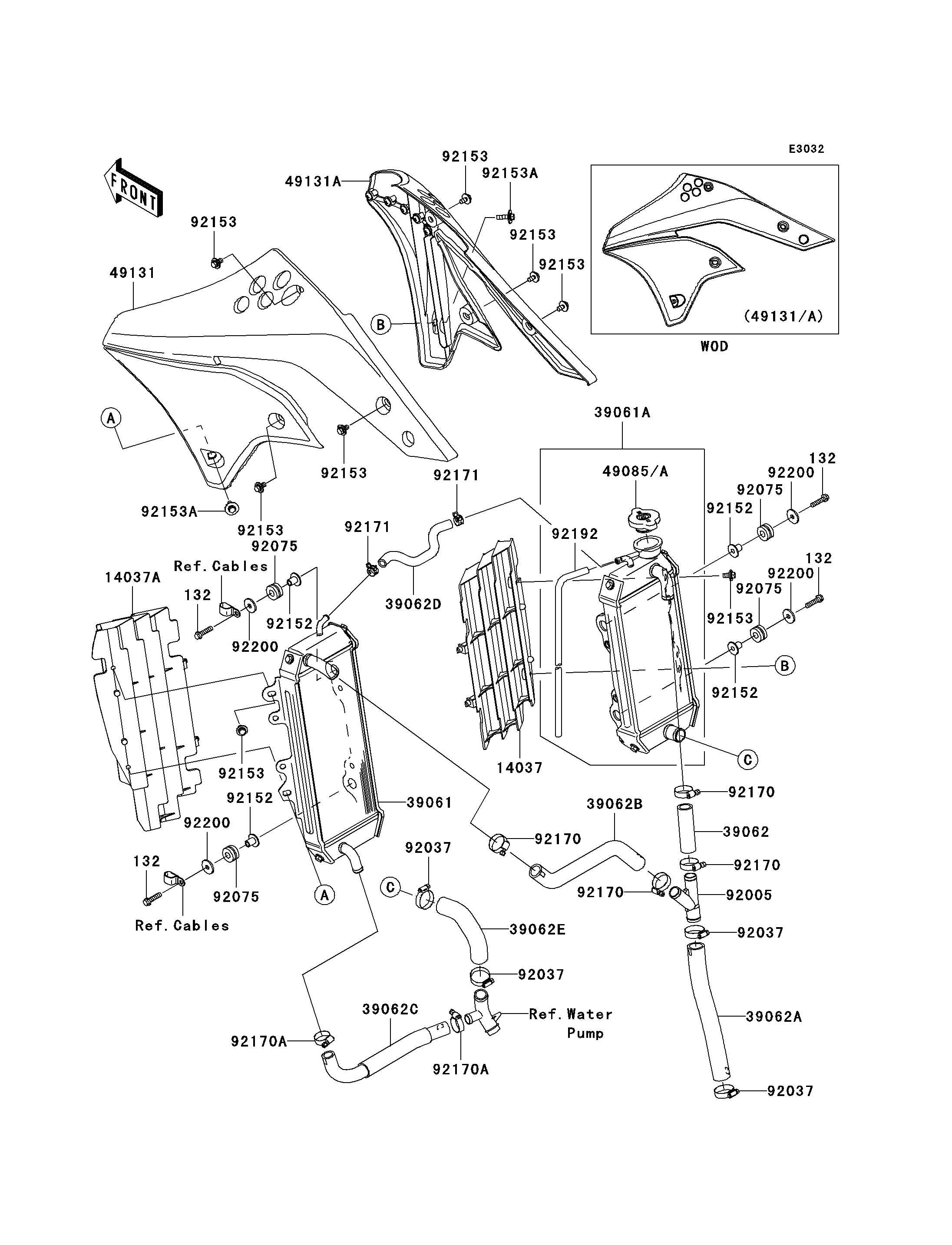

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X25 132 132L0625 4
SCREEN,RH,WHITE 14037 14037-0058-RZ 1
SCREEN,LH,WHITE 14037A 14037-0063-RZ 1
RADIATOR-ASSY,LH 39061 39061-0054 1
RADIATOR-ASSY,RH 39061A 39061-0074 1
HOSE-COOLING 39062 39062-0091 1
HOSE-COOLING,HEAD-FIT 39062A 39062-0126 1
HOSE-COOLING,RAD LH-FIT 39062B 39062-0127 1
HOSE-COOLING,RAD LH-W/P 39062C 39062-0129 1
HOSE-COOLING,RAD LH-RAD RH 39062D 39062-0130 1
HOSE-COOLING,RAD RH-W/P 39062E 39062-0153 1
CAP-ASSY-PRESSURE,P1.1 49085 49085-1070 1
CAP-ASSY-PRESSURE,P1.6 49085A 49085-1073 1 (OPTION)
SHROUD-ENGINE,LH 49131 49131-5095 1
SHROUD-ENGINE,RH 49131A 49131-5096 1
FITTING 92005 92005-0065 1
CLAMP,COOLING HOSE 92037 92037-1589 4
DAMPER 92075 92075-209 4
COLLAR,L=12.6,T=1.6 92152 92152-0379 4
BOLT,6X12 92153 92153-0503 8
BOLT,6X20 92153A 92153-0864 2
CLAMP,COOLING HOSE 92170 92170-1077 4
CLAMP 92170A 92170-1283 2
CLAMP 92171 92171-0372 2
TUBE,6X9X640 92192 92192-0167 1
WASHER,6.5X22X2.3 92200 92200-0271 4
