12004
12004
12005
12005
12009
12009
12009A
12009A
12011
12011
12011
12011
12011
12011
12011
12011
12032
12032
12032A
12032A
16007
16007
16007A
16007A
49078
49078
49078A
49078A
92049
92049
92049
92049
92180
92180
92180
92180
92180A
92180A
92180A
92180A
92180B
92180B
92180B
92180B
92180C
92180C
92180C
92180C
92180D
92180D
92180D
92180D
92180E
92180E
92180E
92180E
92180F
92180F
92180F
92180F
92180G
92180G
92180G
92180G
92180H
92180H
92180H
92180H
92180I
92180I
92180I
92180I
92180J
92180J
92180J
92180J
92180K
92180K
92180K
92180K
92180L
92180L
92180L
92180L
92180M
92180M
92180M
92180M
92180N
92180N
92180N
92180N
92180O
92180O
92180O
92180O
92180P
92180P
92180P
92180P
92180Q
92180Q
92180Q
92180Q
92180R
92180R
92180R
92180R
92180S
92180S
92180S
92180S
92180T
92180T
92180T
92180T
92180U
92180U
92180U
92180U
92180V
92180V
92180V
92180V
92180W
92180W
92180W
92180W
92180X
92180X
92180X
92180X
92180Y
92180Y
92180Y
92180Y
92180Z
92180Z
92180Z
92180Z
92181
92181
92181
92181
92181A
92181A
92181A
92181A
92181B
92181B
92181B
92181B
92181C
92181C
92181C
92181C
92181D
92181D
92181D
92181D
92181E
92181E
92181E
92181E
92181F
92181F
92181F
92181F
92181G
92181G
92181G
92181G
92181H
92181H
92181H
92181H
92181I
92181I
92181I
92181I
92181J
92181J
92181J
92181J
92181K
92181K
92181K
92181K
92181L
92181L
92181L
92181L
92181M
92181M
92181M
92181M

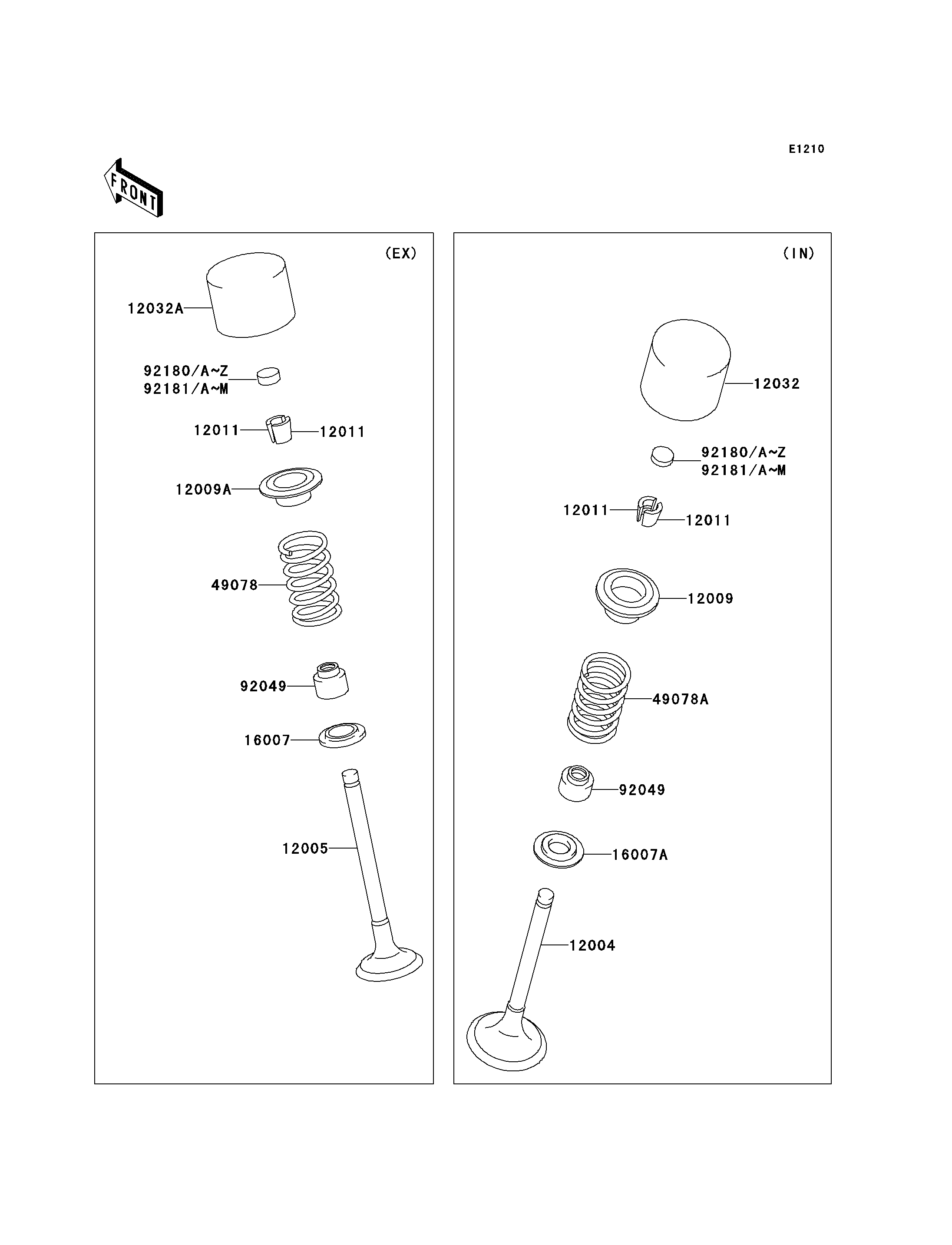

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE-INTAKE 12004 12004-0023 2
VALVE-EXHAUST 12005 12005-0002 2
RETAINER-VALVE SPRING 12009 12009-0010 2
RETAINER-VALVE SPRING 12009A 12009-1073 2
COLLET 12011 12011-1053 8
TAPPET,IN 12032 12032-0005 2
TAPPET,EX 12032A 12032-0006 2
SEAT-SPRING 16007 16007-0002 2
SEAT-SPRING 16007A 16007-0029 2
SPRING-ENGINE VALVE 49078 49078-0003 2
SPRING-ENGINE VALVE 49078A 49078-0056 2
SEAL-OIL,VSB 4.3 7.5 5.3 8.3 92049 92049-1349 4
SHIM,T=2.500 92180 92180-0167 4
SHIM,T=2.525 92180A 92180-0168 AR
SHIM,T=2.550 92180B 92180-0169 AR
SHIM,T=2.575 92180C 92180-0170 AR
SHIM,T=2.600 92180D 92180-0171 AR
SHIM,T=2.625 92180E 92180-0172 AR
SHIM,T=2.650 92180F 92180-0173 AR
SHIM,T=2.675 92180G 92180-0174 AR
SHIM,T=2.700 92180H 92180-0175 AR
SHIM,T=2.725 92180I 92180-0176 AR
SHIM,T=2.750 92180J 92180-0177 AR
SHIM,T=2.775 92180K 92180-0178 AR
SHIM,T=2.800 92180L 92180-0179 AR
SHIM,T=2.825 92180M 92180-0180 AR
SHIM,T=2.850 92180N 92180-0181 AR
SHIM,T=2.875 92180O 92180-0182 AR
SHIM,T=2.900 92180P 92180-0183 AR
SHIM,T=2.925 92180Q 92180-0184 AR
SHIM,T=2.950 92180R 92180-0185 AR
SHIM,T=2.975 92180S 92180-0186 AR
SHIM,T=3.000 92180T 92180-0187 AR
SHIM,T=3.025 92180U 92180-0188 AR
SHIM,T=3.050 92180V 92180-0189 AR
SHIM,T=3.075 92180W 92180-0190 AR
SHIM,T=3.100 92180X 92180-0191 AR
SHIM,T=3.125 92180Y 92180-0192 AR
SHIM,T=3.150 92180Z 92180-0193 AR
SHIM,T=3.175 92181 92180-0194 AR
SHIM,T=3.200 92181A 92180-0195 AR
SHIM,T=3.225 92181B 92180-0196 AR
SHIM,T=3.250 92181C 92180-0197 AR
SHIM,T=3.275 92181D 92180-0198 AR
SHIM,T=3.300 92181E 92180-0199 AR
SHIM,T=3.325 92181F 92180-0200 AR
SHIM,T=3.350 92181G 92180-0201 AR
SHIM,T=3.375 92181H 92180-0202 AR
SHIM,T=3.400 92181I 92180-0203 AR
SHIM,T=3.425 92181J 92180-0204 AR
SHIM,T=3.450 92181K 92180-0205 AR
SHIM,T=3.475 92181L 92180-0206 AR
SHIM,T=3.500 92181M 92180-0207 AR
