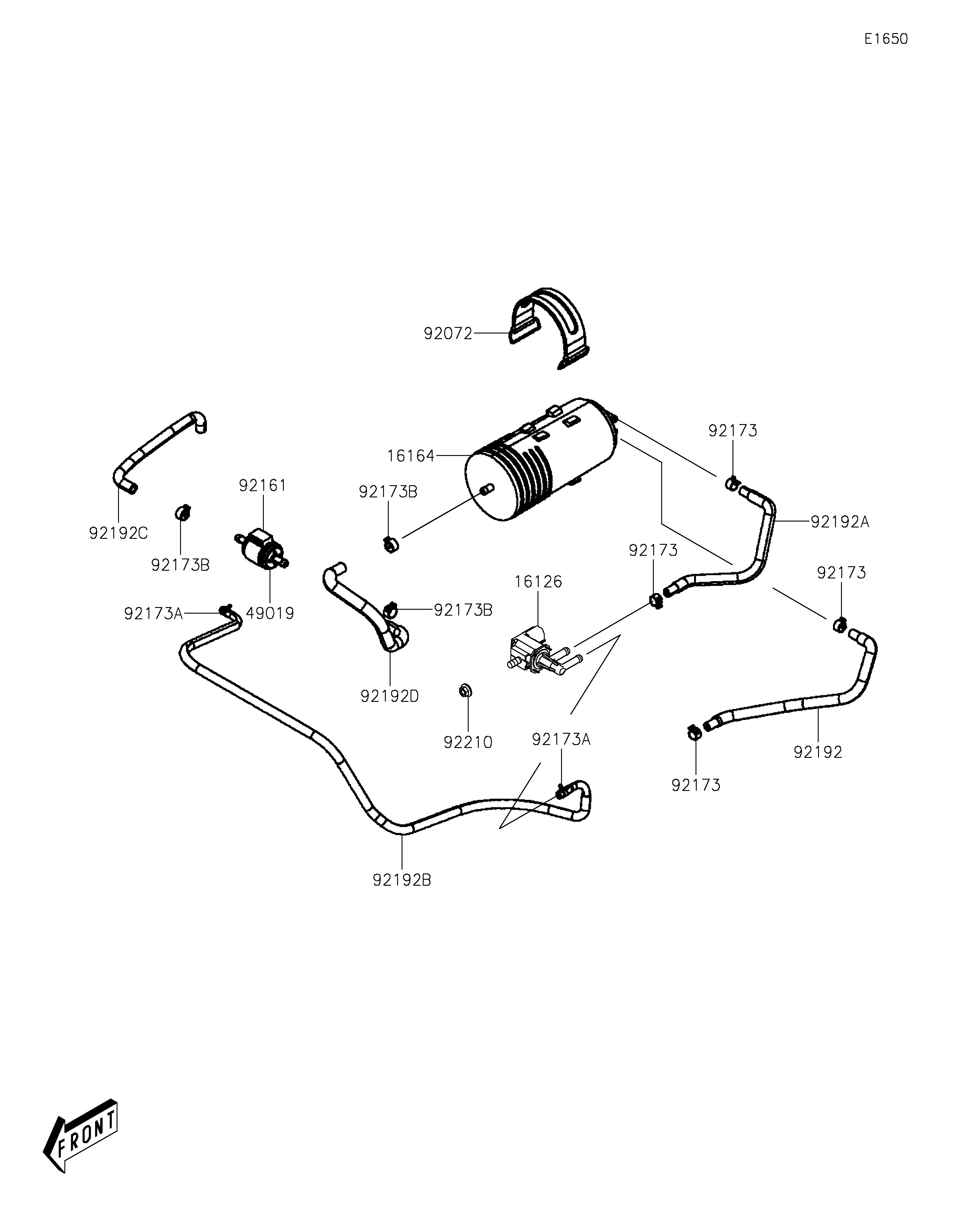

2021 MULE PRO-MX - Fuel Evaporative System(CA)

16126
16164
49019
92072
92161
92173
92173
92173
92173
92173A
92173A
92173B
92173B
92173B
92192
92192A
92192B
92192C
92192D
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE,SOLENOID 16126 16126-0705 1 CA
CANISTER 16164 16164-Y003 1 CA
FILTER-FUEL 49019 49019-Y002 1 CA
BAND,L=168 92072 92072-1306 1 CA
DAMPER 92161 92161-Y039 1 CA
CLAMP 92173 92173-Y083 4 CA
CLAMP 92173A 92173-Y085 2 CA
CLAMP 92173B 92173-Y086 3 CA
TUBE,CHECK VALVE-CANISTER 92192 92192-Y063 1 CA
TUBE,CANISTER-VALVE 92192A 92192-Y064 1 CA
TUBE,VALVE-VACUUM 92192B 92192-Y065 1 CA
TUBE,AIR FILTER 92192C 92192-Y066 1 CA
TUBE,AIR FILTER-CANISTER 92192D 92192-Y067 1 CA
NUT,6MM 92210 92210-Y026 1 CA
