13042
13042
13091
13280
27010
46003
46003A
46019
46075
46076
46091
46091A
46092
92145
92150
92150
92151
92152
92154
92154A
92154A
92154B
92154B
92154C
92154C
92154D
92154E
92154F
92172
92210
236
236A

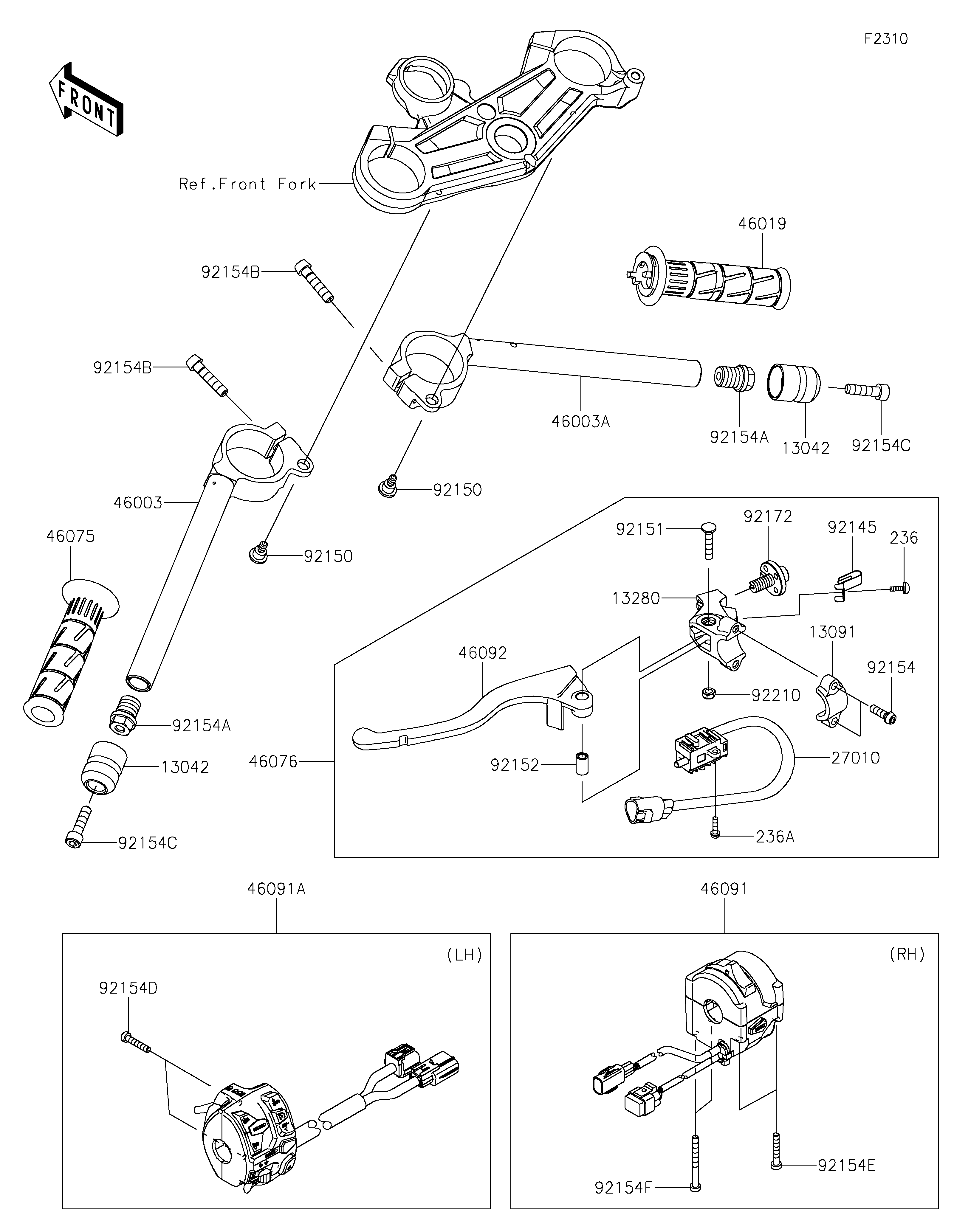

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WEIGHT,HANDLE 13042 13042-5032 2
HOLDER,CLUTCH LEVER 13091 13091-1624 1
HOLDER 13280 13280-1319 1
SWITCH,CLUTCH 27010 27010-0971 1
HANDLE,LH 46003 46003-0786 1
HANDLE,RH 46003A 46003-0787 1
GRIP-ASSY,THROTTLE 46019 46019-0100 1
GRIP,HANDLE,LH 46075 46075-1144 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0184 1
HOUSING-ASSY-CONTROL,RH 46091 46091-0574 1
HOUSING-ASSY-CONTROL,LH 46091A 46091-0576 1
LEVER-GRIP 46092 46092-0581 1
SPRING 92145 92145-1286 1
BOLT,6MM 92150 92150-1090 2
BOLT 92151 92151-1523 1
COLLAR 92152 92152-0103 1
BOLT,SOCKET,6X20 92154 92154-1644 2
BOLT,17X18 92154A 92154-1902 2
BOLT,SOCKET,8X35 92154B 92154-1969 2
BOLT,SOCKET,8X30 92154C 92154-2292 2
BOLT,SOCKET,5X25 92154D 92154-2596 2
BOLT,5X30 92154E 92154-3921 2
BOLT,5X50 92154F 92154-3922 2
SCREW,ADJUST NUT 92172 92172-1060 1
NUT,LOCK,6MM 92210 92210-1544 1
SCREW-PAN-WSP-CROS,4X10 236 236AB0410 1
SCREW-PAN-WSP-CROS 236A 236AB0416 1
