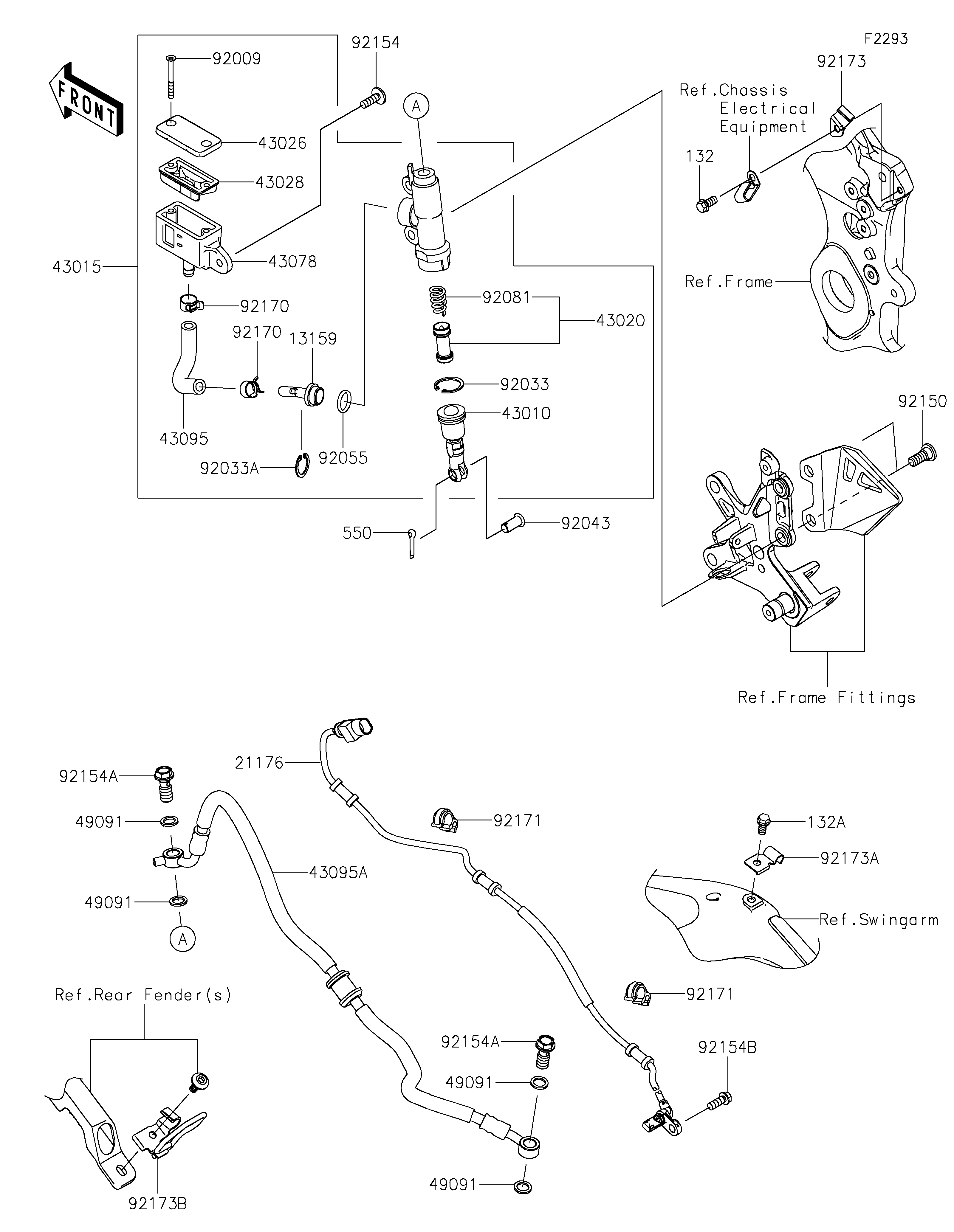

2021 Ninja® ZX-10R (US) - Rear Master Cylinder

13159
21176
43010
43015
43020
43026
43028
43078
43095
43095A
49091
49091
49091
49091
92009
92033
92033A
92043
92055
92081
92150
92154
92154A
92154A
92154B
92170
92170
92171
92171
92173
92173A
92173B
132
132A
550
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CONNECTOR 13159 13159-0009 1
SENSOR,RR WHEEL 21176 21176-0980 1
ROD-ASSY-BRAKE 43010 43010-0016 1
CYLINDER-ASSY-MASTER,RR 43015 43015-0775 1
PISTON-COMP-BRAKE 43020 43020-1057 1
CAP-BRAKE 43026 43026-0031 1
DIAPHRAGM 43028 43028-1067 1
RESERVOIR 43078 43078-1189 1
HOSE-BRAKE,RR CALIPER 43095 43095-1518 1
HOSE-BRAKE,RR M/C-CALIPER 43095A 43095-1787 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
SCREW,4X40 92009 92009-1596 2
RING-SNAP,20.9X24.6X1.2 92033 92033-0079 1
RING-SNAP,20.5MM 92033A 92033-1186 1
PIN 92043 92043-0904 1
RING-O,14.8X2.4 92055 92055-0741 1
SPRING,MASTER CYLINDER 92081 92081-1737 1
BOLT,SOCKET,8X25 92150 92150-1837 2
BOLT,SOCKET,6X18 92154 92154-1694 1
BOLT,BANJO,10X23 92154A 92154-1712 2
BOLT,FLANGED,6X16 92154B 92154-4217 1
CLAMP,HOSE 92170 92170-1091 2
CLAMP,BRAKE HOSE 92171 92171-1819 2
CLAMP,MAIN FRAME,RR 92173 92173-1516 1
CLAMP,SWING ARM,MID 92173A 92173-1517 1
CLAMP,SWING ARM,RR 92173B 92173-2423 1
BOLT-FLANGED-SMALL,6X12 132 132BA0612 1
BOLT-FLANGED-SMALL,6X12 132A 132BB0612 1
PIN-COTTER,2.0X15 550 550AA2015 1
