11057
120
39156
92072
92104
92104A
92106
92107
92107A
92110
92127

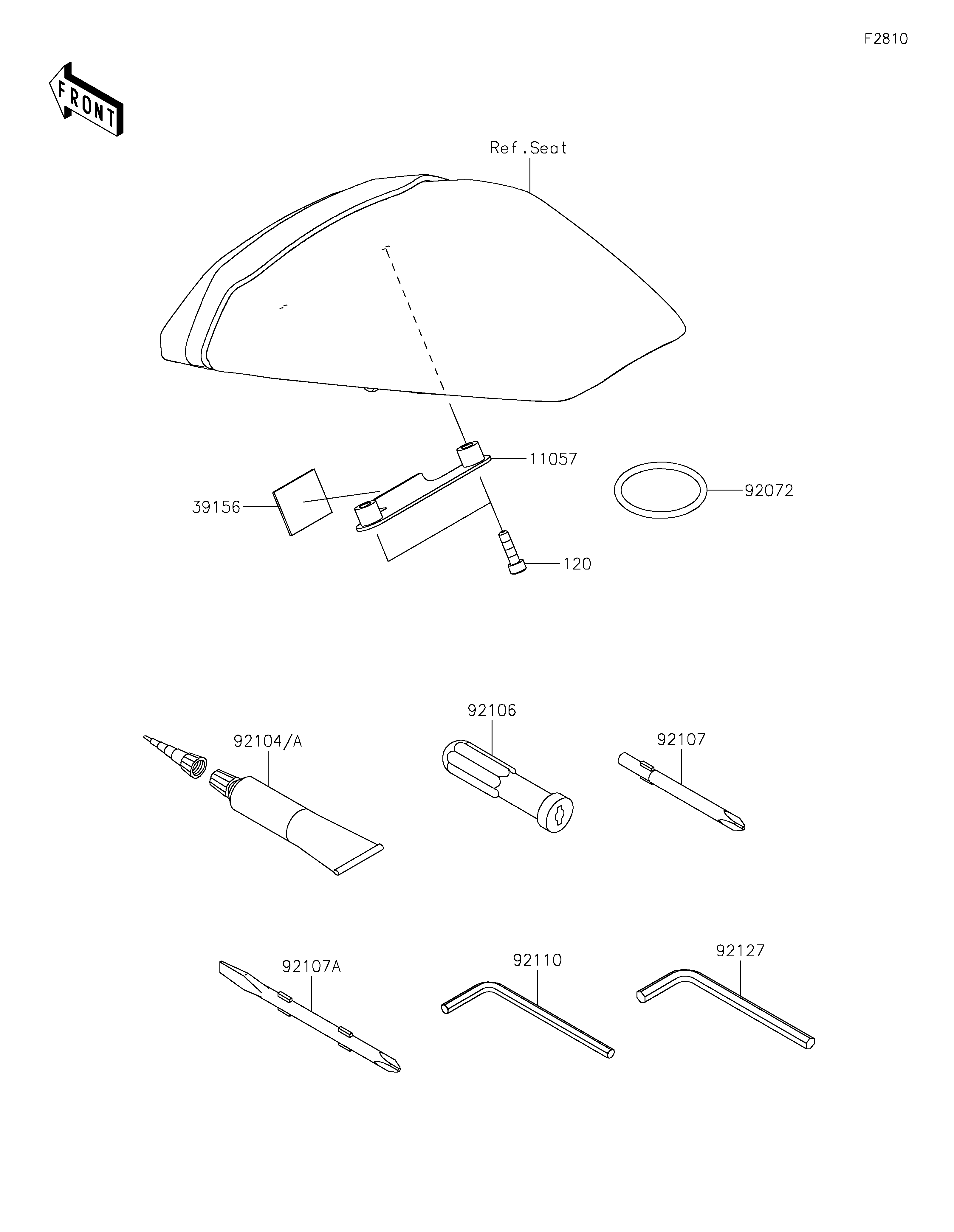

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11057 11057-1770 1
BOLT-SOCKET,5X18 120 120CB0518 2
PAD,30X30X1 39156 39156-2289 1
BAND 92072 92072-0820 1
GASKET-LIQUID,TB1211F,CLEAR 92104 92104-0004 1
GASKET-LIQUID,TB1216B,BLACK 92104A 92104-1064 1
GRIP-SCREW DRIVER 92106 92106-1001 1
TOOL-DRIVER,#3PHILLIPS 92107 92107-005 1
TOOL-DRIVER,#2PHILLIPS&SLOT 92107A 92107-1051 1
TOOL-WRENCH,ALLEN,4MM 92110 92110-3703 1
TOOL-WRENCH,ALLEN,6MM 92127 92127-003 1
