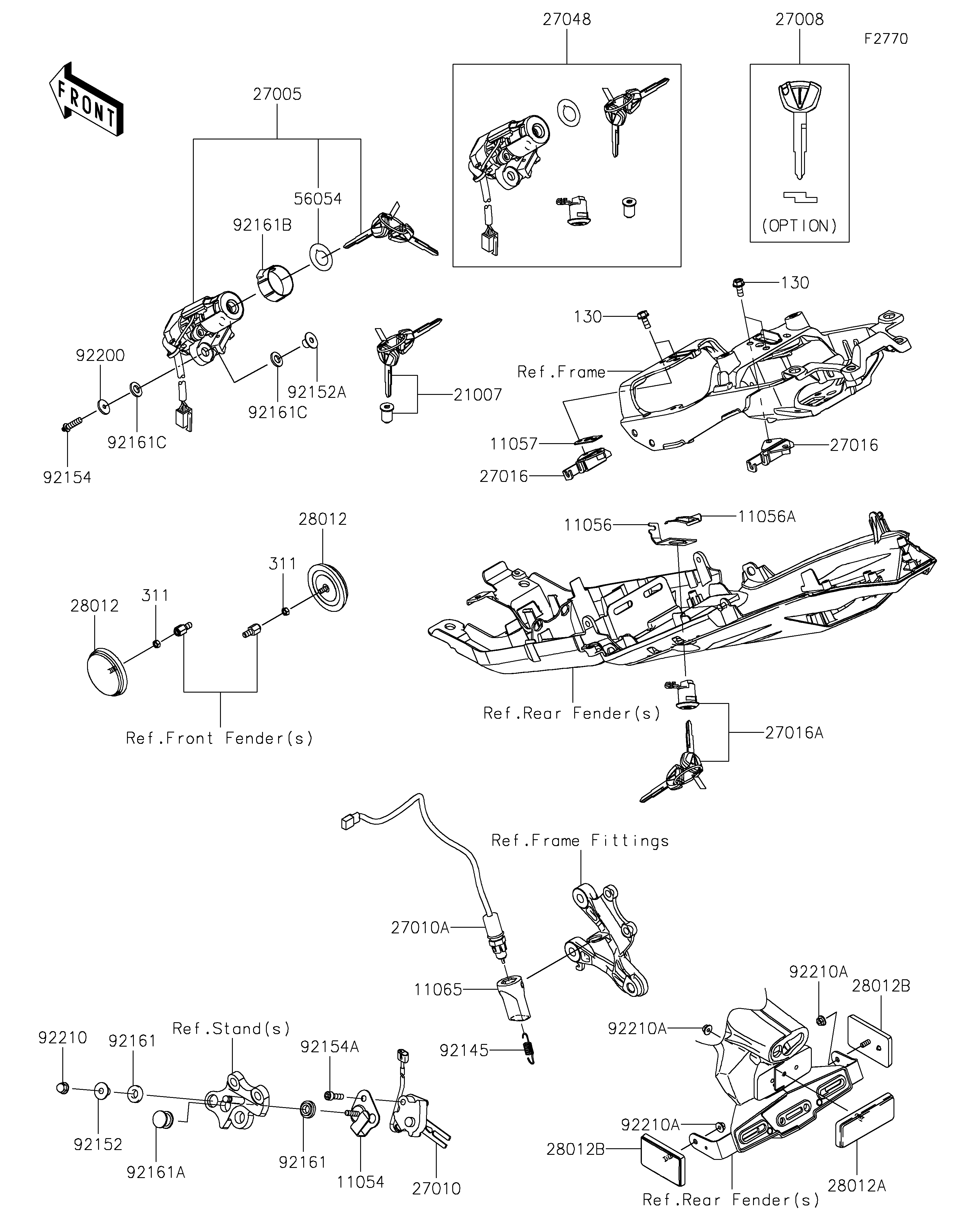

2019 NINJA® ZX-6R - Ignition Switch/Locks/Reflectors

11054
11056
11056A
11057
11065
130
130
21007
27005
27008
27010
27010A
27016
27016
27016A
27048
28012
28012
28012A
28012B
28012B
311
311
56054
92145
92152
92152A
92154
92154A
92161
92161
92161A
92161B
92161C
92161C
92200
92210
92210A
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SIDE STAND SWITCH 11054 11054-1904 1
BRACKET 11056 11056-0237 1
BRACKET,CLASP 11056A 11056-0238 1
BRACKET,FR 11057 11057-2650 1
CAP,RR BRAKE SWITCH 11065 11065-0381 1
BOLT-FLANGED,6X14 130 130BC0614 4
ROTOR,LOCK,TANK CAP 21007 21007-5068 1
SWITCH-ASSY-IGNITION 27005 27005-0568 1
KEY-LOCK,BLANK 27008 27008-0069 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-0741 1
SWITCH,RR BRAKE 27010A 27010-0867 1
LOCK-ASSY,SEAT STRIKER 27016 27016-1115 2
LOCK-ASSY,SEAT 27016A 27016-5373 1
SWITCH-ASSY 27048 27048-5023 1
REFLECTOR-REFLEX,FR,SIDE 28012 28012-0001 2
REFLECTOR-REFLEX 28012A 28012-1077 1
REFLECTOR-REFLEX 28012B 28012-1088 2
NUT-HEX,5MM 311 311AB0500 2
MARK,IGNITION SWITCH 56054 56054-0969 1
SPRING,REAR BRAKE SWITCH 92145 92145-1890 1
COLLAR 92152 92152-1074 1
COLLAR,6.8X10X11.6 92152A 92152-1699 2
BOLT,TORX,6X24 92154 92154-1129 2
BOLT,SOCKET,6X22 92154A 92154-1898 1
DAMPER 92161 92161-0117 2
DAMPER 92161A 92161-0118 1
DAMPER 92161B 92161-1506 1
DAMPER,10X17X3 92161C 92161-1507 4
WASHER,6X20X1.6 92200 92200-0212 2
NUT,CAP,6MM 92210 92210-0003 1
NUT,FLANGED,5MM 92210A 92210-0007 3
