11060
11061
11061A
130
130
130A
132
132
18091
21174
23062
32069
39178
49062
54010
54010A
55020
55020A
59091
92092
92092
92092A
92092A
92151
92152
92152
92152
92152
92154
92154A
92154B
92154C
92154C
92154C
92154C
92161
92161
92161
92161
92161A
92171
92171A
92171A
92173
92173A
92173B
92200
92200A
92200A
92210
92210A

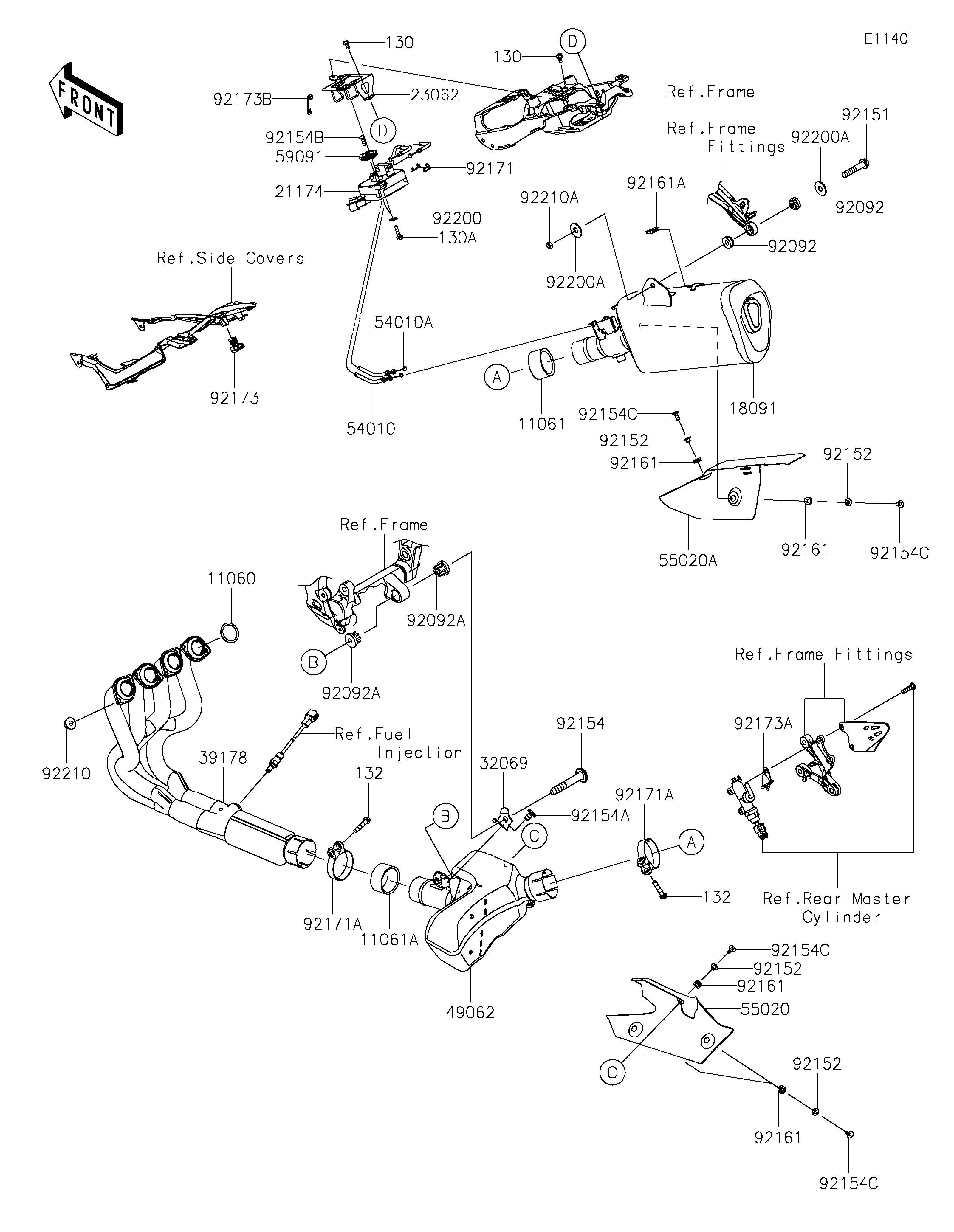

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE 11060 11060-1203 4
GASKET,50.8X62X30 11061 11061-0447 1
GASKET,54X62X30 11061A 11061-0448 1
BOLT-FLANGED,6X12 130 130BA0612 2
BOLT-FLANGED,6X25 130A 130BA0625 2
BOLT-FLANGED-SMALL,8X40 132 132BC0840 2
BODY-COMP-MUFFLER 18091 18091-1155 1
MOTOR-ELECTRIC 21174 21174-0009 1
BRACKET-COMP,ACTUATOR 23062 23062-1155 1
BRACKET-MUFFLER 32069 32069-0340 1
MANIFOLD-COMP-EXHAUST 39178 39178-0333 1
PIPE-COMP-EXHAUST 49062 49062-0740 1
CABLE,CLOSE 54010 54010-0624 1
CABLE,OPEN 54010A 54010-0625 1
GUARD,CHAMBER 55020 55020-0864 1
GUARD,FRONT COVER 55020A 55020-2228 1
PULLEY 59091 59091-0007 1
BUSHING-RUBBER 92092 92092-0018 2
BUSHING-RUBBER,MUFFLER 92092A 92092-1087 2
BOLT,FLANGED,8X40 92151 92151-1532 1
COLLAR,6.3X8.3X16 92152 92152-0286 5
BOLT,SOCKET,10X61 92154 92154-0125 1
BOLT,SOCKET,10X16 92154A 92154-0126 1
BOLT,TORX,5X18 92154B 92154-0217 1
BOLT,SOCKET,6X14 92154C 92154-0907 5
DAMPER 92161 92161-0308 5
DAMPER 92161A 92161-1228 1
CLAMP 92171 92171-0292 1
CLAMP,64.5MM 92171A 92171-1668 2
CLAMP,CLIP 92173 92173-0799 1
CLAMP 92173A 92173-1053 1
CLAMP,RUBBER PLATE 92173B 92173-1229 1
WASHER 92200 92200-0078 2
WASHER,8.0X22.0X1.5 92200A 92200-0174 2
NUT,8MM 92210 92210-0076 8
NUT,8MM 92210A 92210-0173 1
