11065
11065
44005
44006
44013
44013
44023
44023
44026
44026
44029
44029
44037
44039
44045
44045
44065
44065
44065A
44065A
44071
44071A
55020
55020
92022
92026
92026
92033
92033
92047
92049
92049
92055
92055
92056
92093
92093
92143
92143
92153
92153
92153A
92153A
92154
92154

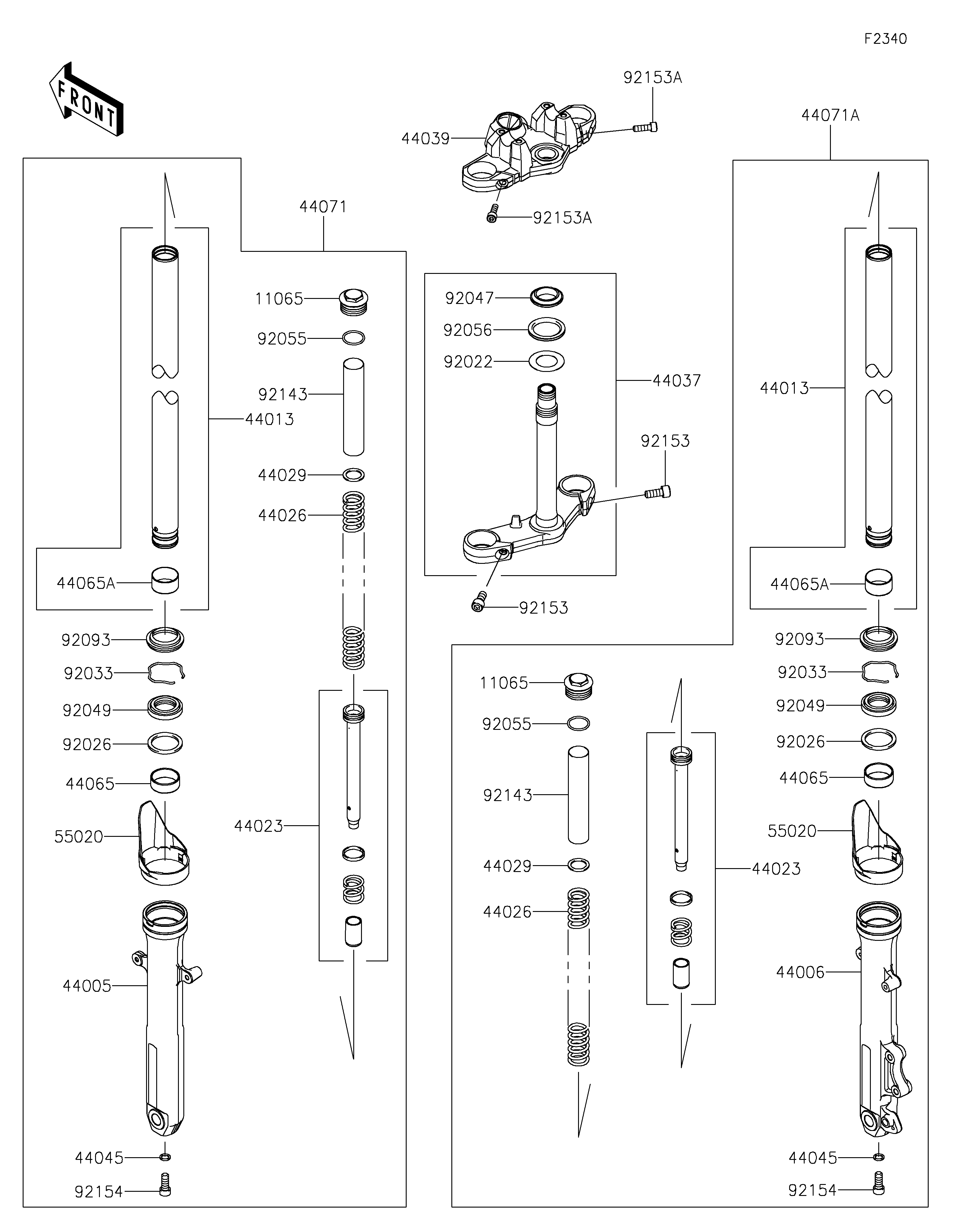

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-0997 2
PIPE-LEFT FORK OUTER,F.S.BLACK 44005 44005-0117-18R 1
PIPE-RIGHT FORK OUTER,F.S.BLK 44006 44006-0114-18R 1
PIPE-FORK INNER 44013 44013-0305 2
CYLINDER-SET-FORK 44023 44023-0140 2
SPRING-FRONT FORK 44026 44026-0210 2
SEAT-FORK SPRING 44029 44029-1131 2
HOLDER-FORK UNDER,F.BLACK 44037 44037-0171-21 1
HOLDER-FORK UPPER,F.S.BLACK 44039 44039-0169-18R 1
GASKET,FORK CYLINDER BOLT 44045 44045-051 2
BUSHING-FRONT FORK,GUIDE 44065 44065-0030 2
BUSHING-FRONT FORK 44065A 44065-0036 2
DAMPER-ASSY,FORK,LH,F.S.BLACK 44071 44071-1306-18R 1
DAMPER-ASSY,FORK,RH,F.S.BLACK 44071A 44071-1307-18R 1
GUARD 55020 55020-1996 2
WASHER,30.5X50X0.6 92022 92022-231 1
SPACER,FORK OUTER 92026 92026-1276 2
RING-SNAP 92033 92033-1222 2
RACE,STEERING STEM BEARING 92047 92047-012 1
SEAL-OIL 92049 92049-0125 2
RING-O,FORK TOP 92055 92055-1420 2
SEAL-OIL,STEERING STEM 92056 92056-003 1
SEAL,DUST 92093 92093-0035 2
COLLAR,FORK,L=150 92143 92143-1251 2
BOLT,SOCKET,10X25 92153 92153-0301 2
BOLT,SOCKET,8X25 92153A 92153-1625 2
BOLT 92154 92154-2551 2
