13270
13270A
21003
21007
21066
21119
220
220A
220A
220B
220C

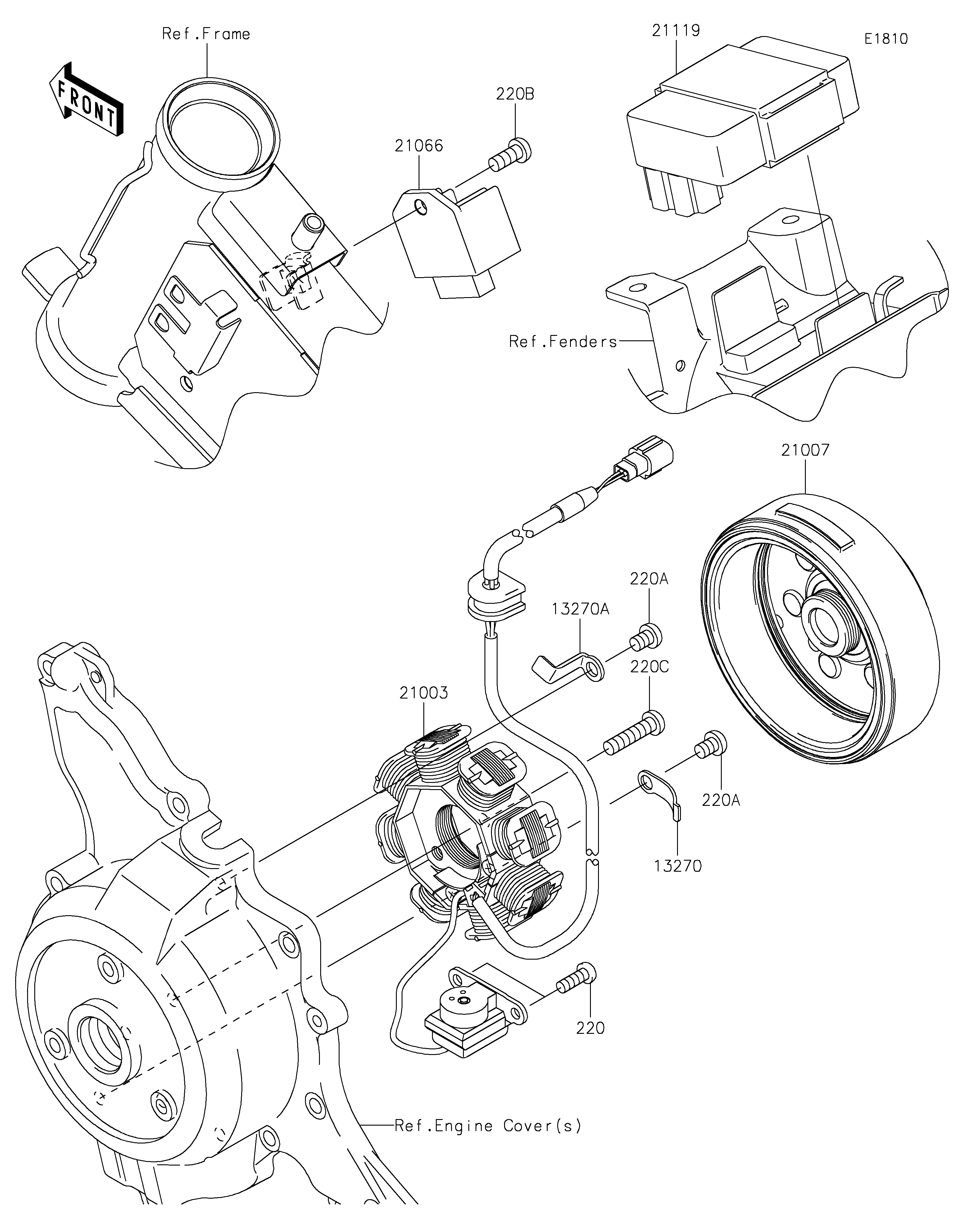

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE 13270 13270-1754 1
PLATE 13270A 13270-1961 1
STATOR 21003 21003-0097 1
ROTOR 21007 21007-0137 1
REGULATOR-VOLTAGE 21066 21066-0778 1
IGNITER 21119 21119-0102 1
SCREW-PAN-CROS,5X14 220 220AA0514 2
SCREW-PAN-CROS,6X8 220A 220AA0608 2
SCREW-PAN-CROS,6X14 220B 220AA0614 1
SCREW-PAN-CROS,6X25 220C 220AA0625 2
