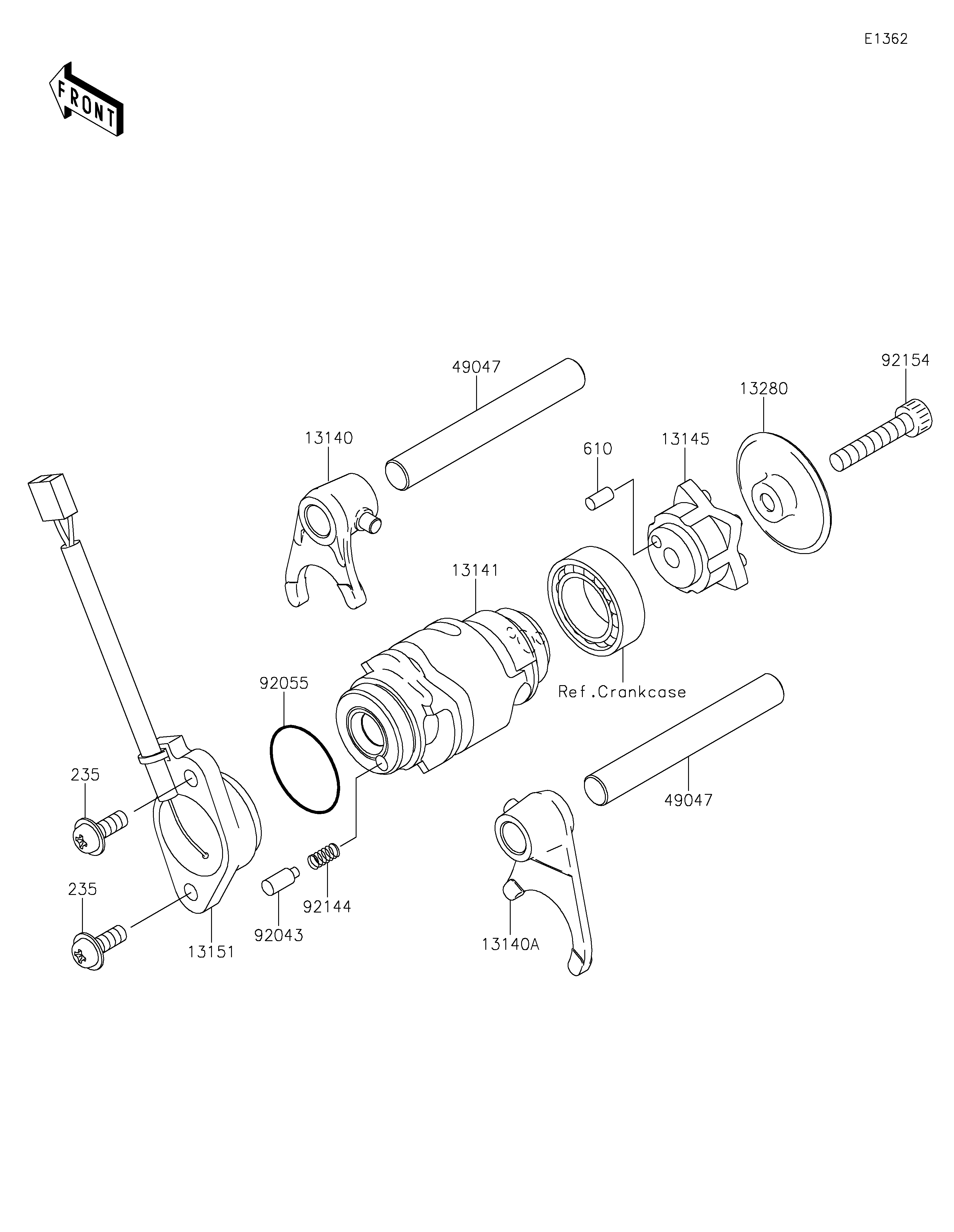

2021 KLX®110R L - Gear Change Drum/Shift Fork(s)

13140
13140A
13141
13145
13151
13280
235
235
49047
49047
610
92043
92055
92144
92154
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-SHIFT 13140 13140-0036 1
FORK-SHIFT 13140A 13140-0037 1
DRUM-CHANGE 13141 13141-0603 1
CAM-CHANGE DRUM 13145 13145-0049 1
SWITCH-COMP 13151 13151-0051 1
HOLDER 13280 13280-1228 1
SCREW-PAN-WP-CROS,5X14 235 235AA0514 2
ROD-SHIFT 49047 49047-1058 2
ROLLER,4X8 610 610A0408 1
PIN 92043 92043-1385 1
RING-O,27.7X2.4 92055 92055-091 1
SPRING 92144 92144-1245 1
BOLT,SOCKET,6X30 92154 92154-0388 1
