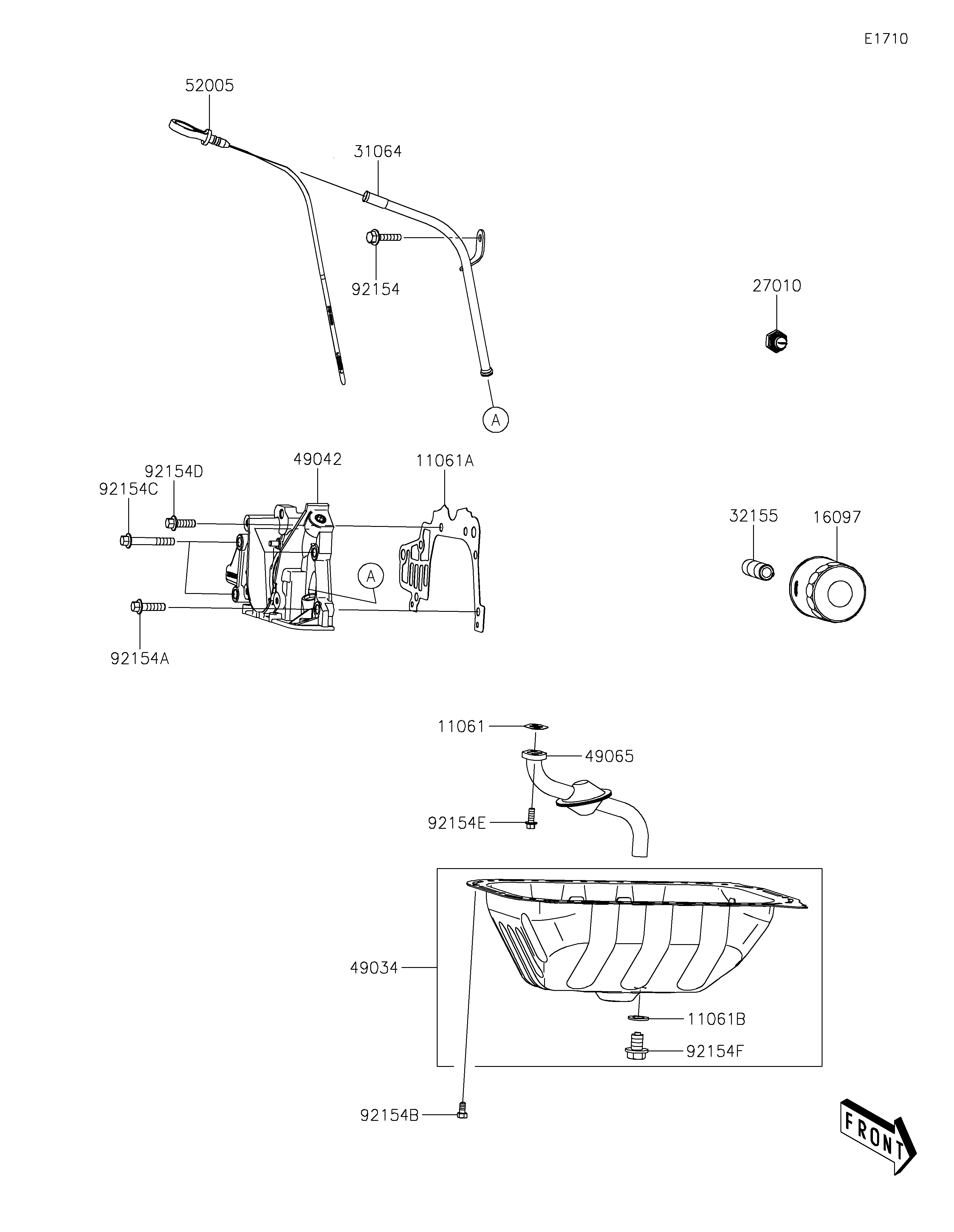

2020 MULE PRO-FXT RANCH EDITION - Oil Pump/Oil Filter

11061
11061A
11061B
16097
27010
31064
32155
49034
49042
49065
52005
92154
92154A
92154B
92154C
92154D
92154E
92154F
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,OIL PICKUP 11061 11061-0957 1
GASKET,OIL PUMP 11061A 11061-0958 1
GASKET,DRAIN 11061B 11061-0962 1
FILTER-ASSY-OIL 16097 16097-0010 1
SWITCH,OIL PRESSURE 27010 27010-0804 1
PIPE-COMP,LEVEL GAUGE 31064 31064-0633 1
PIPE,OIL FILTER 32155 32155-1893 1
PAN-OIL 49034 49034-0558 1
PUMP-OIL 49042 49042-0001 1
FILTER-OIL 49065 49065-0029 1
GAUGE,OIL LEVEL 52005 52005-0728 1
BOLT,FLANGED 92154 92154-1579 1
BOLT,FLANGED,8X30 92154A 92154-1592 3
BOLT,6X12 92154B 92154-1594 17
BOLT,FLANGED,8X55 92154C 92154-1601 2
BOLT,FLANGED,8X25 92154D 92154-1602 1
BOLT,6X16 92154E 92154-1617 2
BOLT,DRAIN 92154F 92154-1635 1
