11056
11056A
11056B
132
132
224
23004
23020
92022
92022
92022
92022
92027
92027
92069
92075
92075
92081
92172
92172
92172
92210
92210

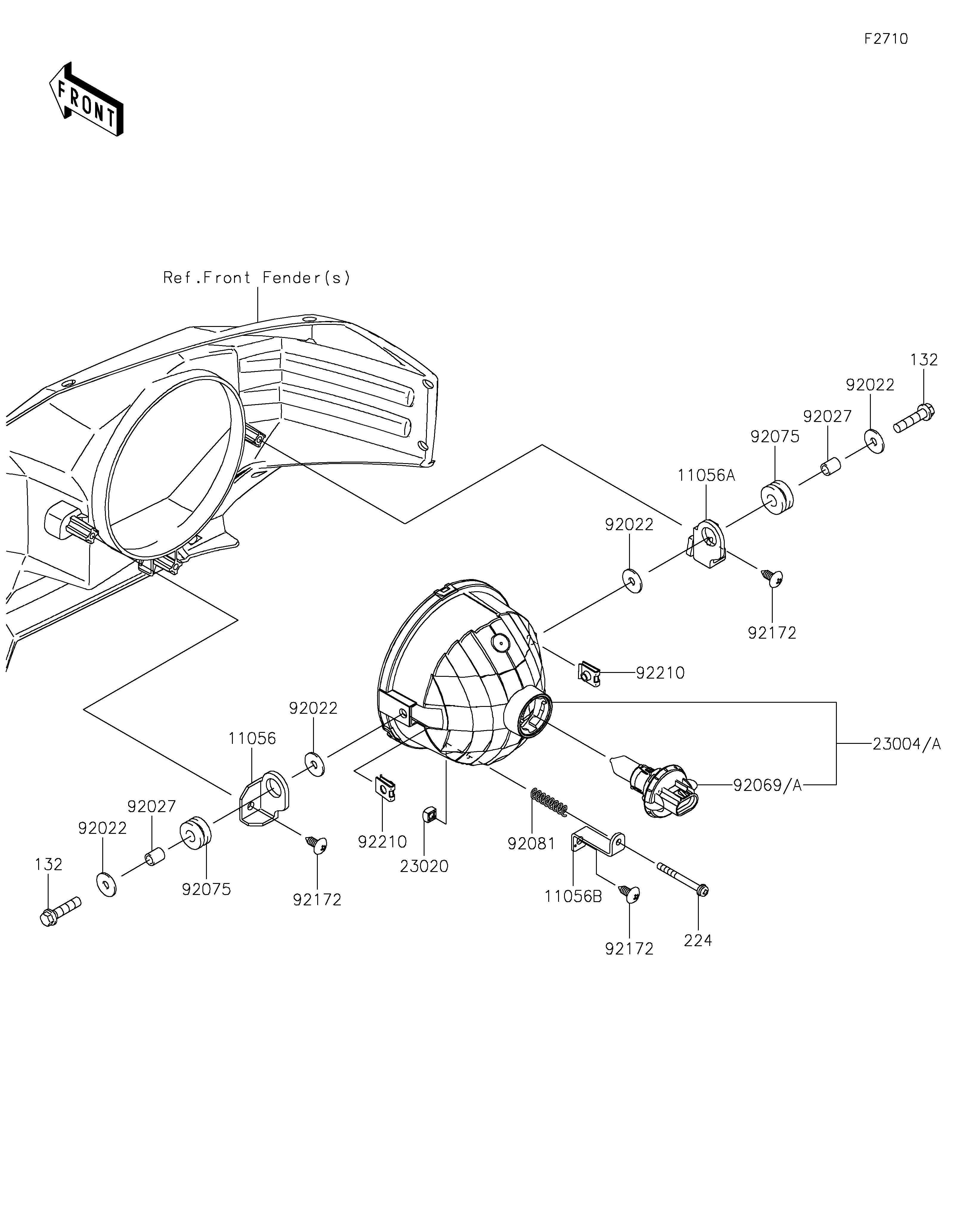

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LH 11056 11056-2931 2
BRACKET,RH 11056A 11056-2932 2
BRACKET 11056B 11056-2933 2
BOLT-FLANGED-SMALL,6X25 132 132BA0625 4
SCREW-PAN-WP-CROS 224 224AA0440 2
LAMP-HEAD 23004 23004-0339 2
NUT,4MM,FOCUS ADJUST 23020 23020-018 2
WASHER,6.5X20X1.6 92022 92022-125 8
COLLAR,6.8X10X12 92027 92027-162 4
BULB,H13-12-8V 92069 92069-0082 2
DAMPER,10X24X12 92075 92075-1690 4
SPRING,FOCUS ADJUST 92081 92081-1896 2
SCREW,6X16 92172 92172-0284 6
NUT 92210 92210-1125 4
