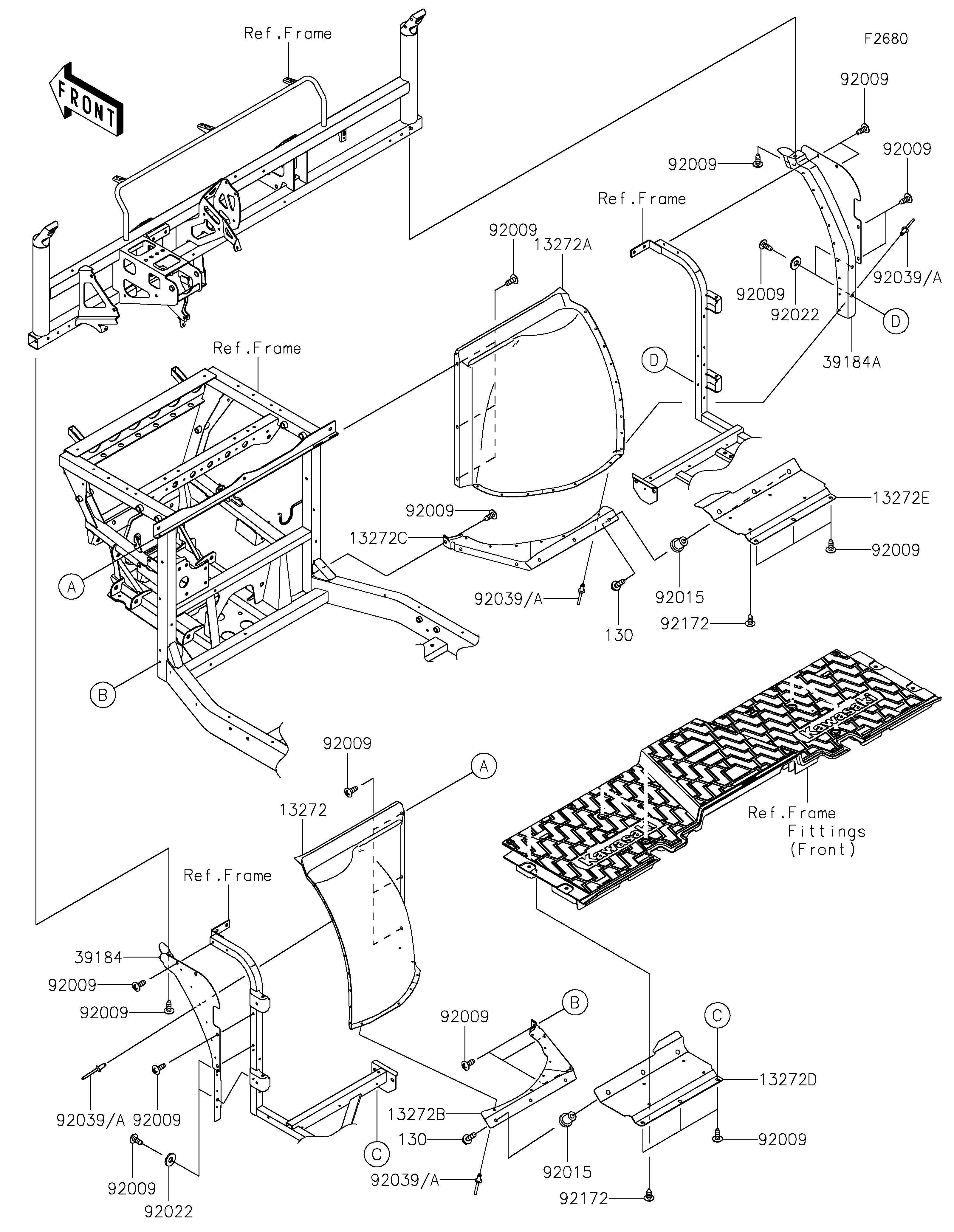

130
130
13272
13272A
13272B
13272C
13272D
13272E
39184
39184A
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92015
92015
92022
92022
92039
92039
92039
92039
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X20 130 130BA0620 6
PLATE 13272 13272-2323 1
PLATE 13272A 13272-2324 1
PLATE 13272B 13272-2327 1
PLATE 13272C 13272-2328 1
PLATE,UNDER GUARD,LH 13272D 13272-2330 1
PLATE,UNDER GUARD,RH 13272E 13272-2331 1
BRACKET-ASSY,SIDE,LH 39184 39184-0718 1
BRACKET-ASSY,SIDE,RH 39184A 39184-0719 1
SCREW,TAPPING,6X16 92009 92009-1166 32
NUT,RUBBER,6MM 92015 92015-1692 6
WASHER,8.2X19X2 92022 92022-1533 4
RIVET 92039 92039-0778 30
SCREW,6X16 92172 92172-0284 8
