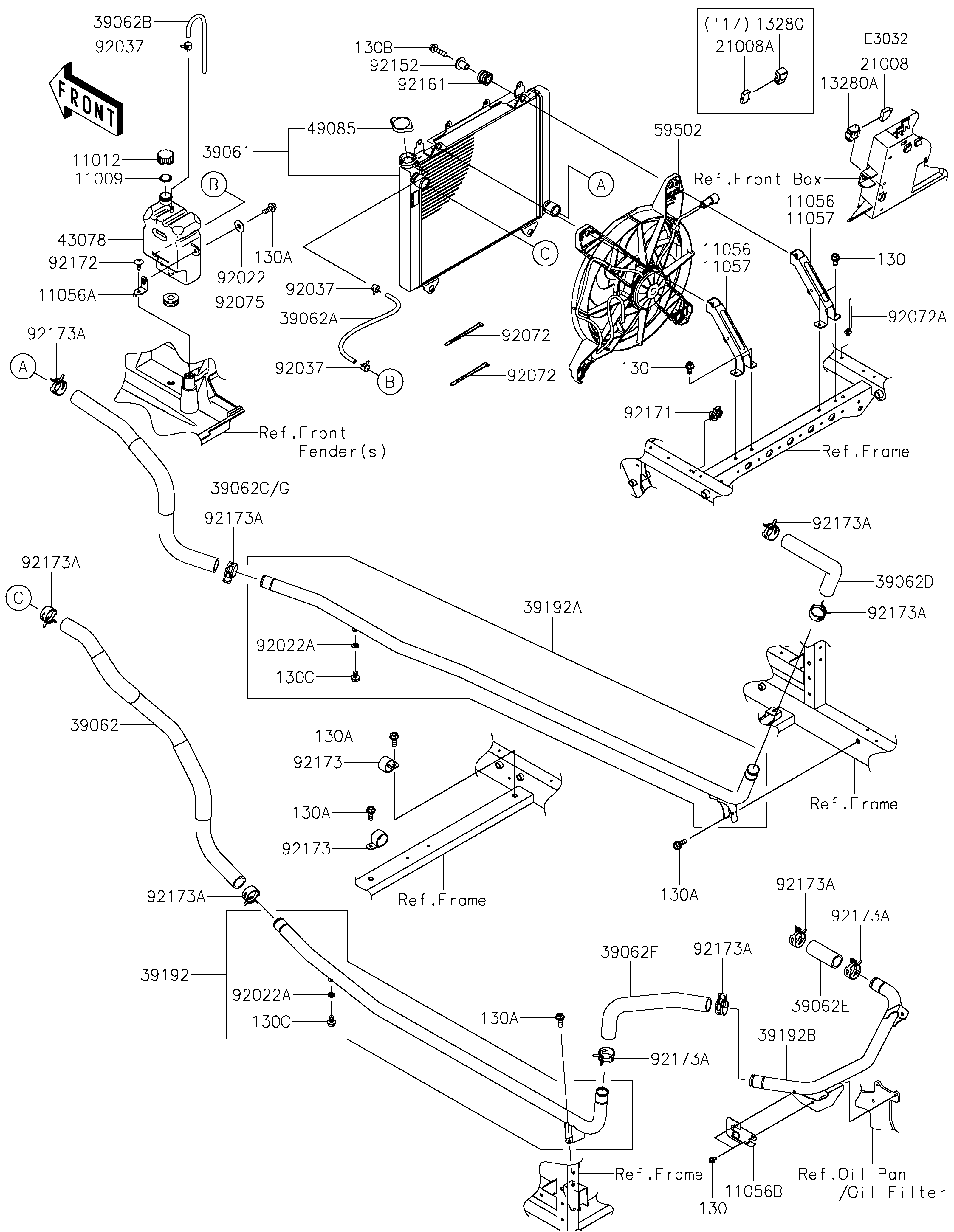

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
BRACKET,RADIATOR 11056 11056-2833 2
BRACKET,RESERVOIR 11056A 11056-3856 1
BRACKET,HARNESS 11056B 11056-7479 1
BOLT-FLANGED,6X12 130 130BA0612 6
BOLT-FLANGED,6X16 130A 130BA0616 5
BOLT-FLANGED,6X25 130B 130BA0625 4
HOLDER,BREAKER 13280 13280-0082 1
BREAKER,RAD. FAN,20A 21008A 21008-0554 1
RADIATOR-ASSY 39061 39061-0706 1
HOSE-COOLING,RADIATOR IN 39062 39062-0650 1
HOSE-COOLING,RAD.-RESERVOIR 39062A 39062-0657 1
HOSE-COOLING,OVER FLOW 39062B 39062-0696 1
HOSE-COOLING,RADIATOR OUT 39062C 39062-0697 1
HOSE-COOLING,ENGINE IN 39062D 39062-0713 1
HOSE-COOLING,ENGINE OUT 39062E 39062-0714 1
HOSE-COOLING,ENGINE OUT 39062F 39062-0715 1
PIPE-WATER,LH 39192 39192-0575 1
PIPE-WATER,RH 39192A 39192-0591 1
PIPE-WATER,CNT 39192B 39192-0593 1
RESERVOIR 43078 43078-0571 1
CAP-ASSY-PRESSURE 49085 49085-0005 1
FAN-ASSY 59502 59502-0609 1
WASHER,PLAIN,6.5X20X1 92022 92022-165 1
WASHER,6.2X11X1 92022A 92022-304 2
CLAMP,TUBE 92037 92037-1461 3
BAND,L=123 92072 92072-030 2
BAND,OS170-FT7(BLACK) 92072A 92072-1414 1
DAMPER 92075 92075-1185 1
COLLAR 92152 92152-1512 4
DAMPER 92161 92161-1349 4
CLAMP 92171 92171-0453 1
SCREW,6X16 92172 92172-0284 1
CLAMP 92173 92173-1204 2
CLAMP,28.6MM 92173A 92173-1205 10
BOLT-FLANGED,6X10 130C 130BB0610 2
