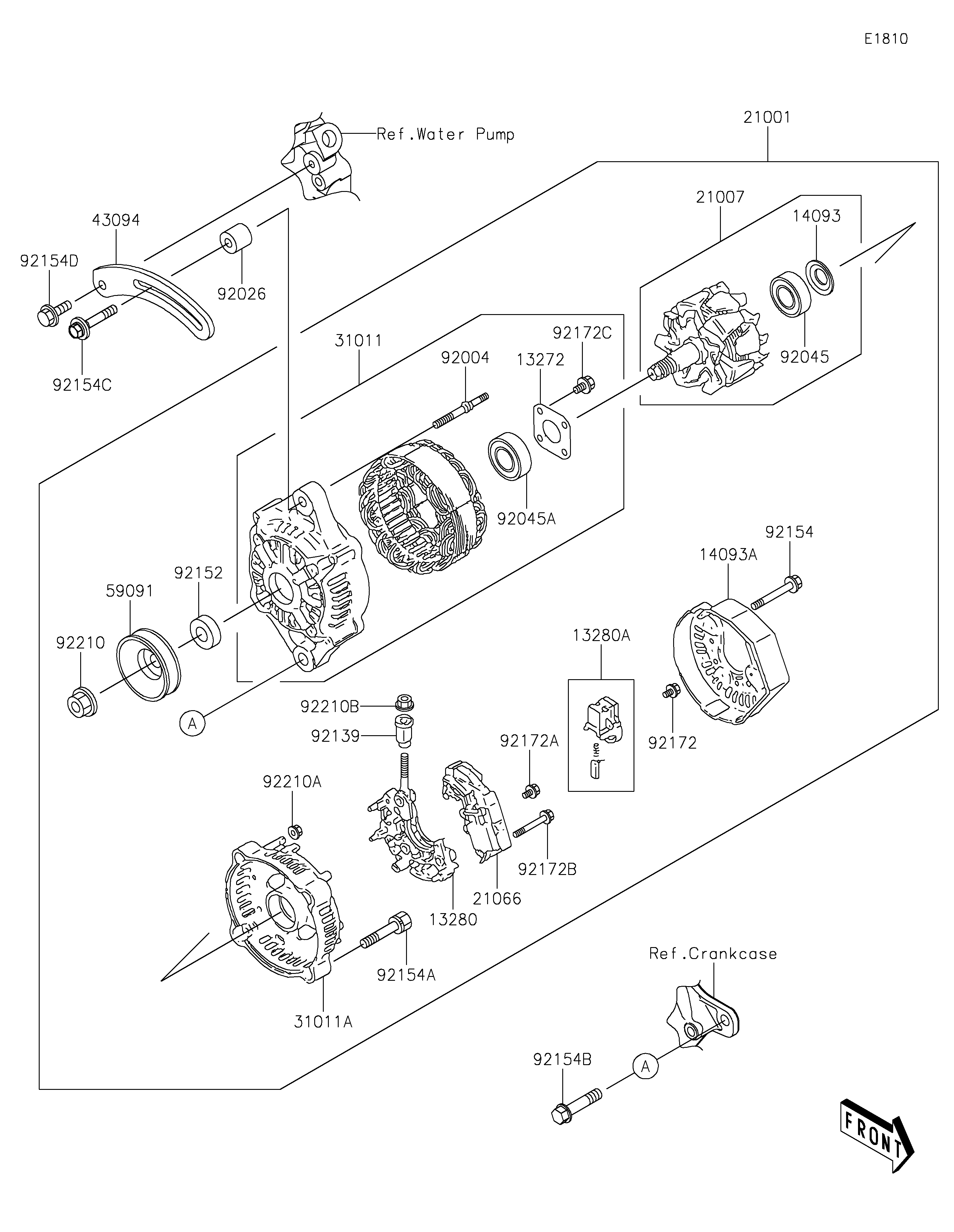

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE,RETAINER 13272 13272-2135 1
HOLDER 13280 13280-0864 1
HOLDER,BRUSH 13280A 13280-0865 1
COVER 14093 14093-0450 1
COVER 14093A 14093-0451 1
GENERATOR 21001 21001-0613 1
ROTOR 21007 21007-0637 1
REGULATOR-VOLTAGE 21066 21066-0749 1
FRAME 31011 31011-0027 1
FRAME 31011A 31011-0028 1
ADJUSTER 43094 43094-0007 1
PULLEY 59091 59091-0015 1
STUD 92004 92004-0751 2
SPACER 92026 92026-0821 1
BEARING-BALL 92045 92045-0812 1
BEARING-BALL 92045A 92045-0816 1
BUSHING 92139 92139-0861 1
COLLAR 92152 92152-2198 1
BOLT 92154 92154-2074 3
BOLT 92154A 92154-2075 2
BOLT,FLANGED,10X45 92154B 92154-2076 1
BOLT 92154C 92154-2077 1
BOLT,FLANGED,8X20 92154D 92154-2078 1
SCREW 92172 92172-0989 6
SCREW 92172A 92172-0990 1
SCREW 92172B 92172-0991 2
SCREW 92172C 92172-1096 4
NUT 92210 92210-1474 1
NUT 92210A 92210-1475 2
NUT 92210B 92210-1476 1
