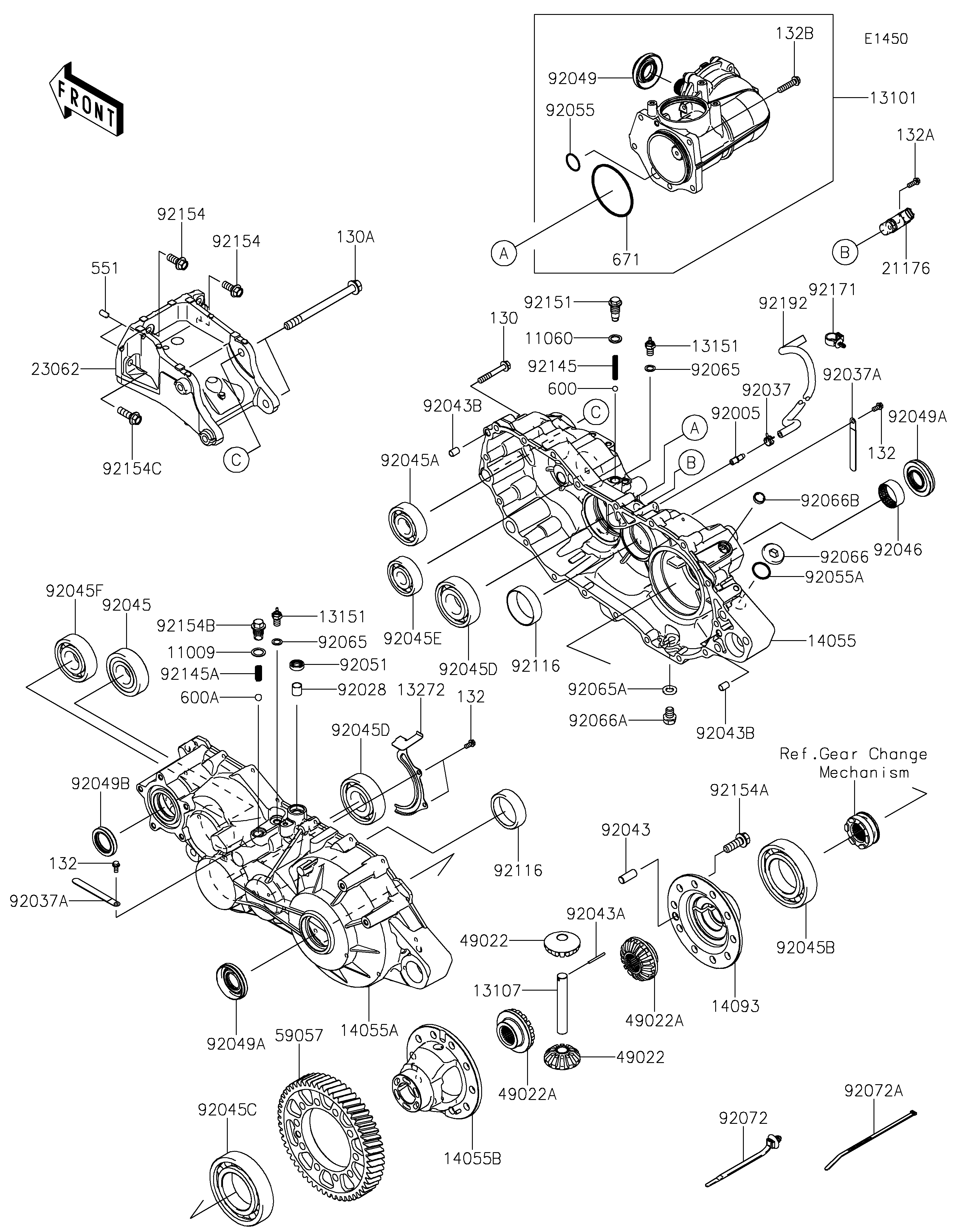

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,15.5X22X1 11009 11009-1008 1
GASKET,14X20X2 11060 11060-1287 1
GEAR-ASSY,PARTICULAR 13101 13101-0636 1
SHAFT 13107 13107-0793 1
SWITCH-COMP,NEUTRAL 13151 13151-1080 2
PLATE 13272 13272-1624 1
CASE-GEAR,RH 14055 14055-0607 1
CASE-GEAR,LH 14055A 14055-0608 1
CASE-GEAR,DIFF 14055B 14055-0614 1
COVER,DIFF 14093 14093-0048 1
SENSOR,ROTATION 21176 21176-0767 1
BRACKET-COMP 23062 23062-0855 1
GEAR-BEVEL,PINION,12T 49022 49022-0585 2
GEAR-BEVEL,OUTPUT,16T 49022A 49022-0589 2
GEAR-HELICAL,55T 59057 59057-0012 1
FITTING,BREATHER 92005 92005-1127 1
BUSHING 92028 92028-1347 1
CLAMP,TUBE 92037 92037-1505 1
CLAMP 92037A 92037-1993 2
PIN,DOWEL,12X30 92043 92043-0789 1
PIN,DOWEL 92043A 92043-0806 1
PIN,DOWEL,10X14 92043B 92043-1037 2
BEARING-BALL,63/32 92045 92045-0764 1
BEARING-BALL,63/28 92045A 92045-0765 1
BEARING-BALL,6212 92045B 92045-0766 1
BEARING-BALL,6213 92045C 92045-0767 1
BEARING-BALL,6307C3 92045D 92045-0768 2
BEARING-BALL,B22-19C3 UR 92045E 92045-0769 1
BEARING-BALL,63/32C3 92045F 92045-1364 1
BEARING-NEEDLE,BTM35.6 92046 92046-0612 1
SEAL-OIL 92049 92049-0160 1
SEAL-OIL 92049A 92049-0749 2
SEAL-OIL,TC32488 92049B 92049-1361 1
SEAL-OIL,TB13225.5 92051 92051-005 1
RING-O,1.9X26.2 92055 92055-0782 1
RING-O,25.7X2.4 92055A 92055-1136 1
GASKET,10.5X16X1 92065 92065-058 2
GASKET,12X22X2 92065A 92065-097 1
PLUG,25X8 92066 92066-0012 1
PLUG,OIL DRAIN,12X15 92066A 92066-1174 1
BOLT-FLANGED,8X55 130 130BA0855 18
BOLT-FLANGED,12X150 130A 130CA12150 2
BOLT-FLANGED-SMALL,6X12 132 132BA0612 4
BOLT-FLANGED-SMALL,6X16 132A 132BA0616 1
BOLT-FLANGED-SMALL,8X35 132B 132BA0835 5
PIN-DOWEL,8X14 551 551A0814 2
BALL-STEEL,5/16 600 600A1000 1
BALL-STEEL,13/32 600A 600A1300 1
O RING 671 671D2585 1
PLUG 92066B 92066-7014 1
BAND,OS170-FT7(BLACK) 92072 92072-1414 AR
BAND,L=292.1 92072A 92072-3509 AR
BEARING-ROLLER,HR32206JA LC 92116 92116-0008 2
SPRING 92145 92145-1589 1
SPRING 92145A 92145-1590 1
BOLT,CHANGE POSITION 92151 92151-1687 1
BOLT,FLANGED,10X25 92154 92154-1329 3
BOLT,FLANGED,12X35 92154A 92154-1332 10
BOLT,CHANGE POSITION 92154B 92154-1366 1
BOLT,FLANGED,10X32 92154C 92154-1740 1
CLAMP 92171 92171-0453 1
TUBE,BREATHER 92192 92192-1340 1
