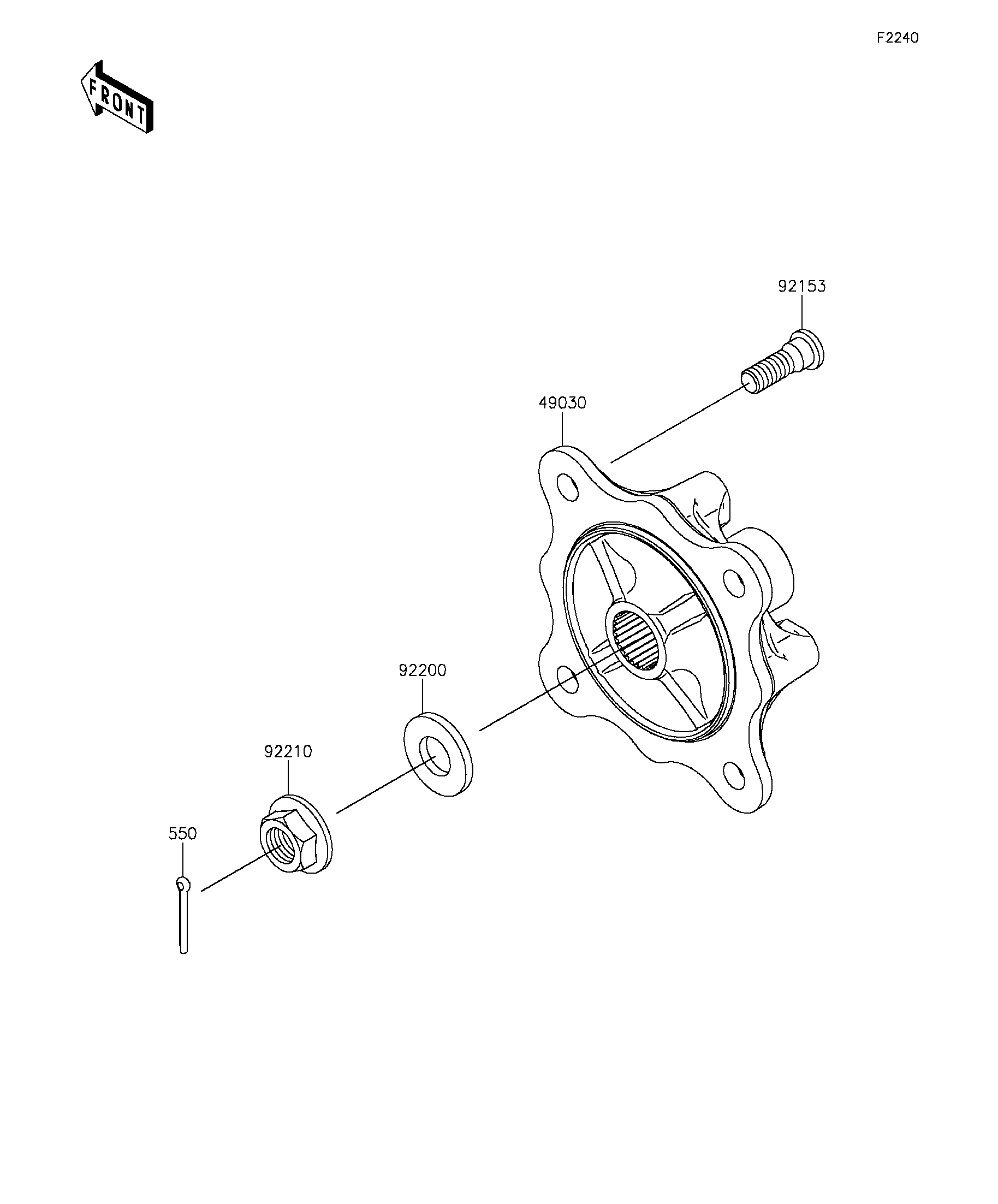

2016 MULE PRO-DXT EPS LE DIESEL - Rear Hubs/Brakes

49030
550
92153
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HUB,RR 49030 49030-0049 2
PIN-COTTER,4.0X30 550 550AA4030 2
BOLT,12MM 92153 92153-1915 8
WASHER,20.3X41X4.5 92200 92200-0921 2
NUT,FLANGED,20MM 92210 92210-2093 2
