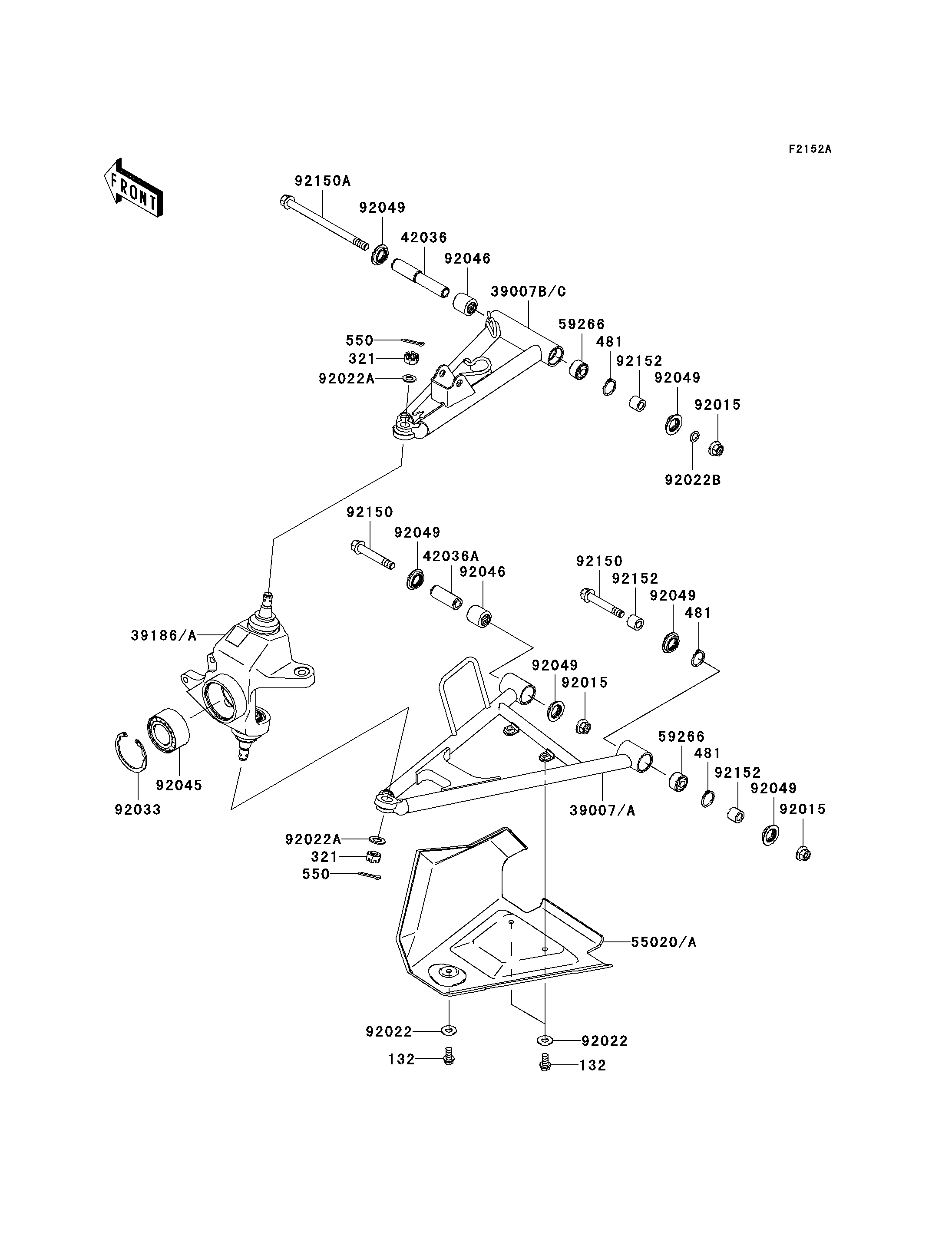

2007 Brute Force 750 4x4i - Front Suspension(JKAVFDB1 6B510241-)

132
132
321
321
481
481
481
550
550
39007
39007A
39007B
39007C
39186
39186A
42036
42036A
55020
55020A
59266
59266
92015
92015
92015
92022
92022
92022A
92022A
92022B
92033
92045
92046
92046
92049
92049
92049
92049
92049
92049
92150
92150
92150A
92152
92152
92152
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X12 132 132J0612 6
NUT-CASTLE,12MM 321 321H1200 4
CIRCLIP 481 481J2400 6
PIN-COTTER,3.0X25 550 550D3025 4
ARM-SUSP,FR,LWR,LH 39007 39007-0064 1
ARM-SUSP,FR,LWR,RH 39007A 39007-0065 1
ARM-SUSP,FR,UPP,LH 39007B 39007-0066 1
ARM-SUSP,FR,UPP,RH 39007C 39007-0067 1
KNUCKLE ASSY,FR,LH 39186 39186-0033 1
KNUCKLE ASSY,FR,RH 39186A 39186-0034 1
SLEEVE,SUSPENSION ARM 42036 42036-0016 2
SLEEVE 42036A 42036-1376 2
GUARD,FRONT ARM,LH,F.BLACK 55020 55020-0109-6Z 1
GUARD,FRONT ARM,RH,F.BLACK 55020A 55020-0110-6Z 1
JOINT-BALL 59266 59266-0013 4
NUT,FLANGED,10MM 92015 92015-1415 6
WASHER,7X16X1.2 92022 92022-024 6
WASHER,12.3X22X1.6 92022A 92022-1065 4
WASHER,10.2X16X1 92022B 92022-1829 AR
RING-SNAP,55MM 92033 92033-1274 2
BEARING-BALL,30BWD08A 92045 92045-1448 2
BEARING-NEEDLE 92046 92046-1046 4
SEAL-OIL,MHA17245.7F 92049 92049-1223 12
BOLT,FLANGED,10X63 92150 92150-1384 4
BOLT,FLANGED,10X150 92150A 92150-1686 2
COLLAR,10X17X14.5 92152 92152-1455 6
