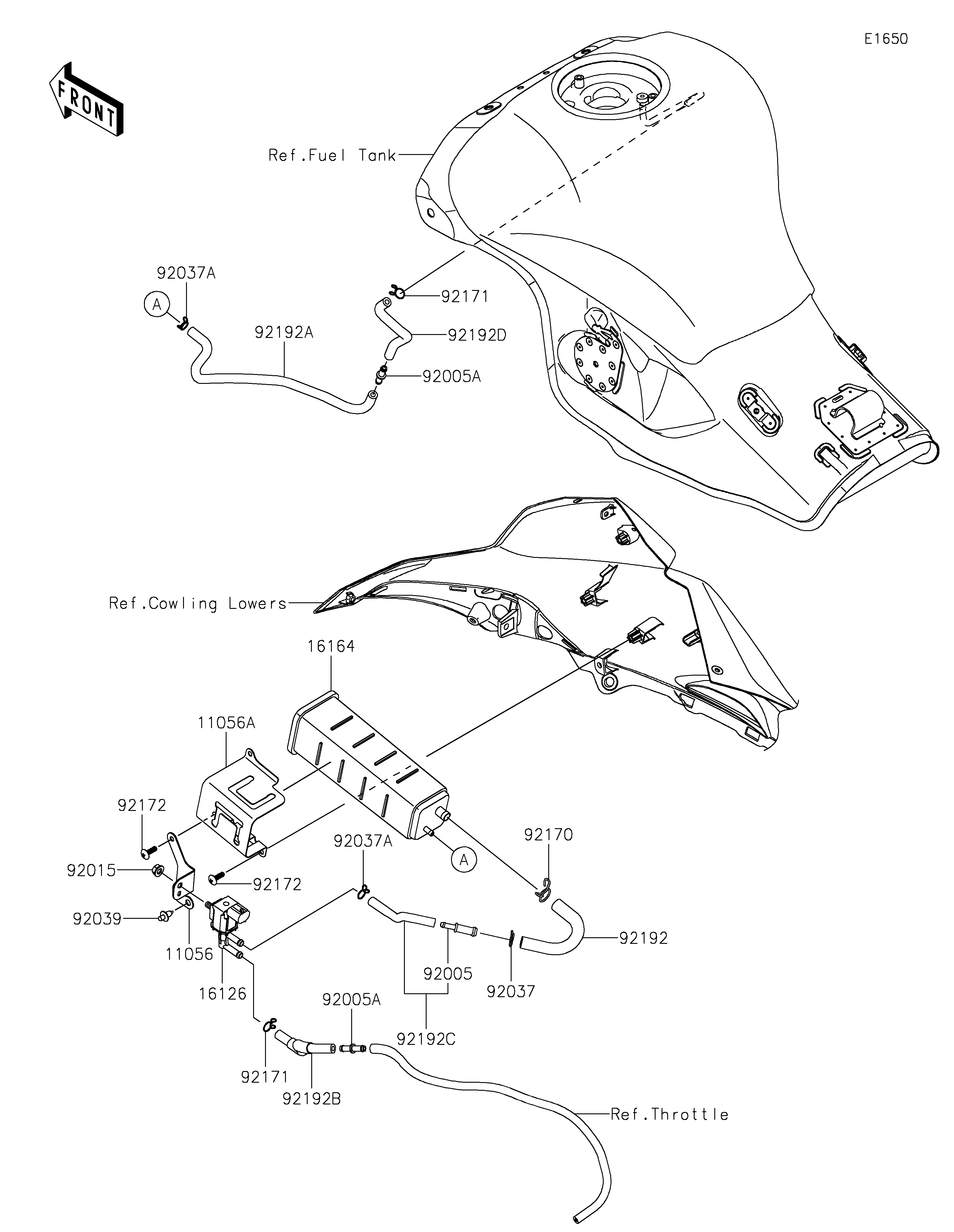

2020 NINJA® ZX-10R ABS - Fuel Evaporative System(CA)

11056
11056A
16126
16164
92005
92005A
92005A
92015
92037
92037A
92037A
92039
92170
92171
92171
92172
92172
92192
92192A
92192B
92192C
92192D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SOLENOID VALVE 11056 11056-7697 1 CA
BRACKET,CANISTER 11056A 11056-7751 1 CA
VALVE,SOLENOID 16126 16126-0705 1 CA
CANISTER 16164 16164-0009 1 CA
FITTING 92005 92005-0032 1 CA
FITTING 92005A 92005-0721 2 CA
NUT,FLANGED,6MM 92015 92015-1367 1 CA
CLAMP,12.5MM 92037 92037-1271 1 CA
CLAMP 92037A 92037-1712 2 CA
RIVET 92039 92039-0068 1 CA
CLAMP 92170 92170-1695 1 CA
CLAMP 92171 92171-0718 2 CA
SCREW,TAPPING,5X16 92172 92172-0175 2 CA
TUBE,TUBE(VALVE)-CANISTER 92192 92192-1502 1 CA
TUBE,CANISTER-FITTING(TANK) 92192A 92192-1503 1 CA
TUBE,VALVE-THROTTLE BODY 92192B 92192-1504 1 CA
TUBE,VALVE-TUBE(CANISTER) 92192C 92192-1505 1 CA
TUBE,FITTING(CANISTER)-TANK 92192D 92192-1506 1 CA
