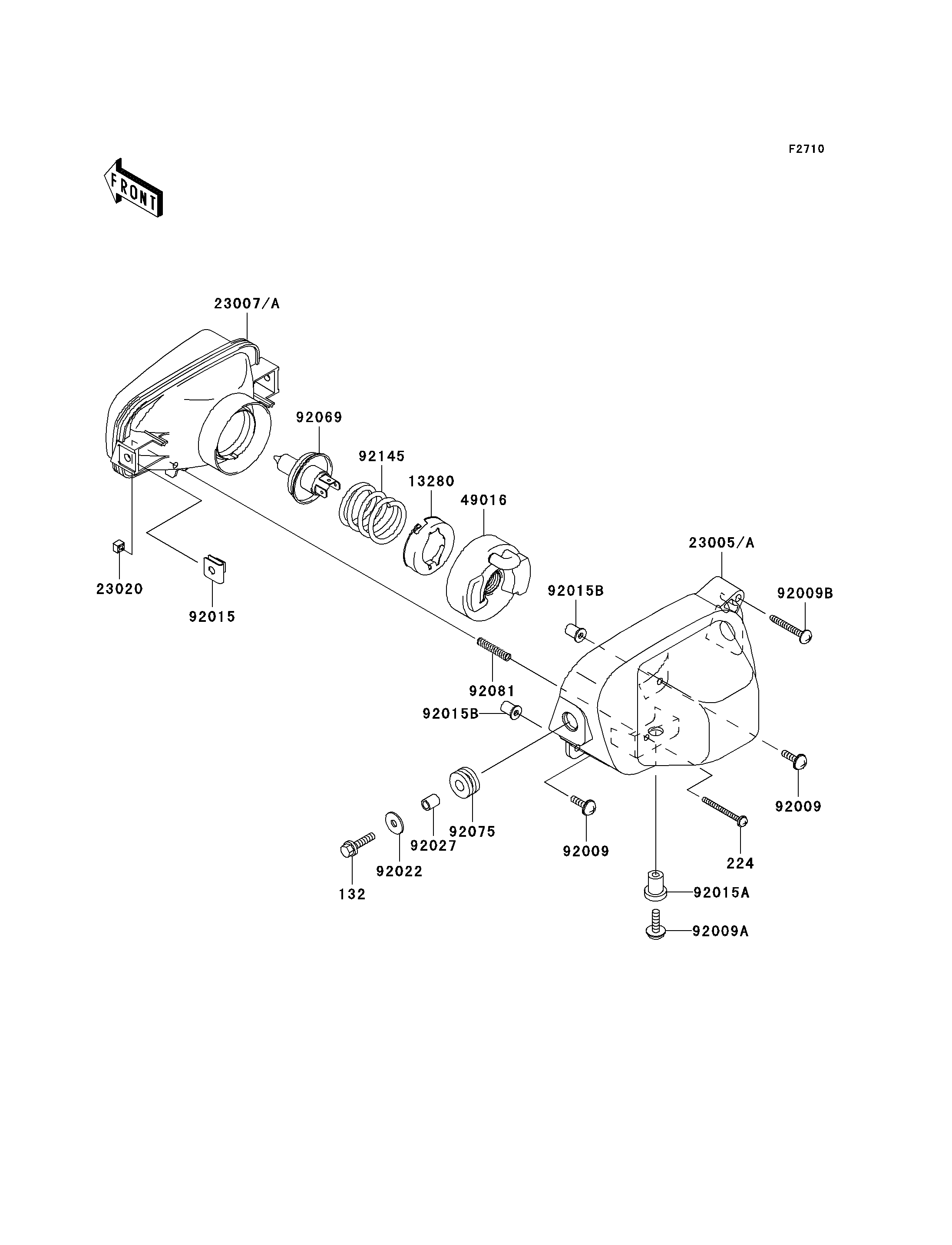

132
224
13280
23005
23005A
23007
23007A
23020
49016
92009
92009
92009A
92009B
92015
92015A
92015B
92015B
92022
92027
92069
92075
92081
92145
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X25 132 132H0625 4
SCREW-PAN-WP-CROS,4X45 224 224D0445 2
HOLDER,BULB SETTING 13280 13280-1198 2
BODY-COMP-HEAD LAMP,LH 23005 23005-1180 1
BODY-COMP-HEAD LAMP,RH 23005A 23005-1181 1
LENS-COMP,HEAD LAMP,LH 23007 23007-1389 1
LENS-COMP,HEAD LAMP,RH 23007A 23007-1390 1
NUT,4MM,FOCUS ADJUST 23020 23020-018 2
COVER-SEAL,HEAD LAMP 49016 49016-1213 2
SCREW,5X16,BLACK 92009 92009-1654 4
SCREW,6X22 92009A 92009-1664 2
SCREW,TAPPING,5X40 92009B 92009-1928 2
NUT,6MM 92015 92015-1094 4
NUT,RUBBER,6MM 92015A 92015-1692 2
NUT,WELL,5MM 92015B 92015-1757 4
WASHER,6.5X20X1.6 92022 92022-125 4
COLLAR,6.8X10X12 92027 92027-162 4
BULB,12V 45/45W,T15 92069 92069-1114 2
DAMPER 92075 92075-1690 4
SPRING,FOCUS ADJUST 92081 92081-1896 2
SPRING,BULB SETTING 92145 92145-1346 2
