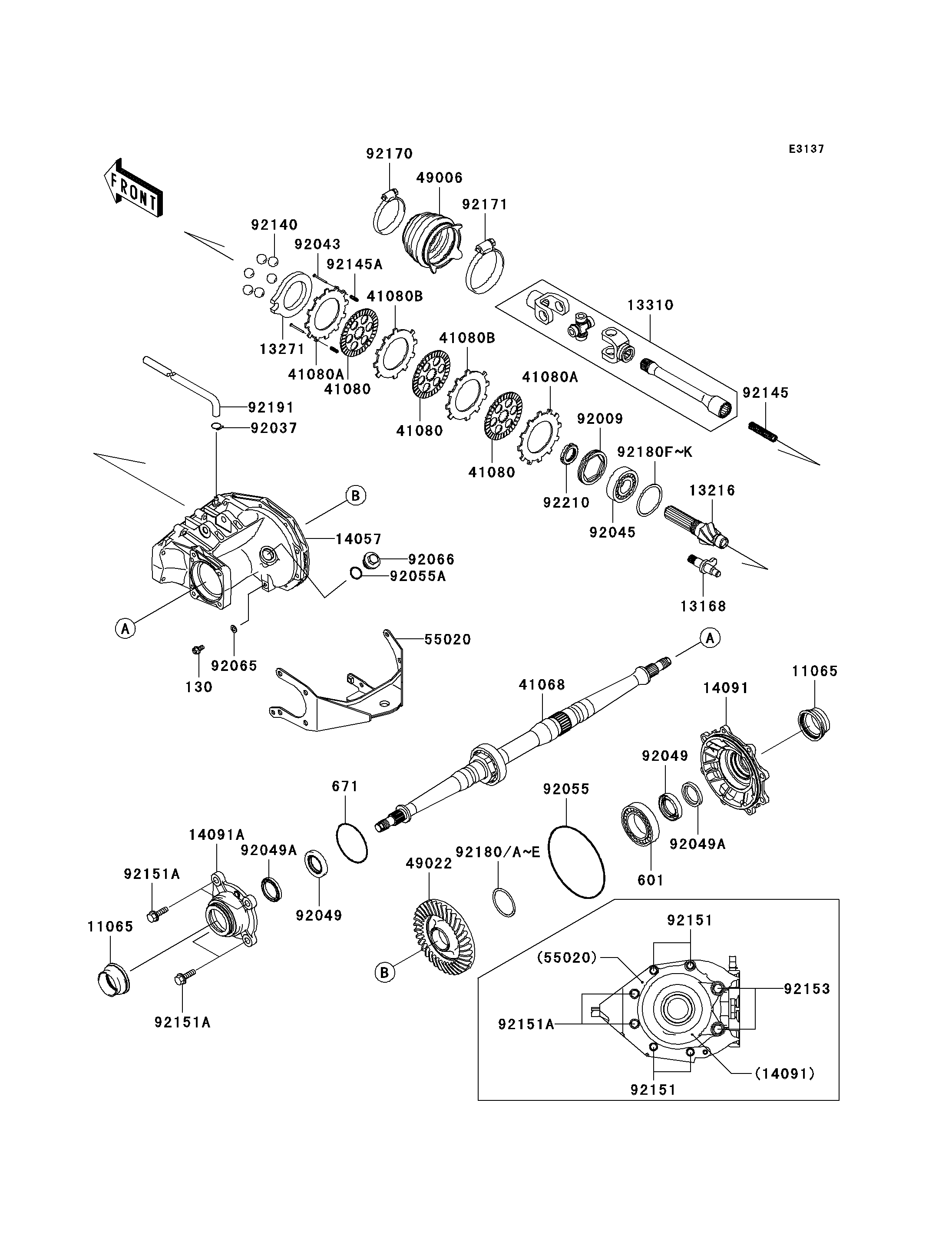

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-1260 2
LEVER,BRAKE 13168 13168-1687 1
GEAR-COMP,RR,8T 13216 13216-0002 1
PLATE,CAM 13271 13271-1367 1
SHAFT-ASSY,RR DRIVE SHAFT 13310 13310-1026 1
CASE-COMP-GEAR 14057 14057-0001 1
COVER,RH 14091 14091-0028 1
COVER,LH 14091A 14091-1422 1
AXLE 41068 41068-1453 1
DISC,FRICTION 41080 41080-1482 3
DISC,PRESSURE 41080A 41080-1483 2
DISC,SEPARATER 41080B 41080-1484 2
BOOT,RR DRIVE SHAFT 49006 49006-1358 1
GEAR-BEVEL,RR,35T 49022 49022-0003 1
GUARD,RR,CASE 55020 55020-0038 1
SCREW-SET-SOCKET,75X10 92009 92009-1667 1
CLAMP,HOSE 92037 92037-1104 1
PIN,3X35 92043 92043-1617 2
BEARING-BALL,BX30-1C3 UR3 92045 92045-0026 1
SEAL-OIL,HTC40X58X8 92049 92049-0012 2
SEAL-OIL,SC40X52X7 92049A 92049-0013 2
RING-O,156.3X3.7 92055 92055-0004 1
RING-O,25.7X2.4 92055A 92055-1136 1
GASKET 92065 92065-023 1
PLUG 92066 92066-1303 1
BALL,D/O#12 92140 92140-1064 6
SPRING,RR DRIVE SHAFT 92145 92145-1300 1
SPRING,RR BRAKE 92145A 92145-1301 2
BOLT,8X30 92151 92151-1908 4
BOLT,10X35 92151A 92151-1909 6
BOLT,12X35 92153 92153-0311 2
CLAMP 92170 92170-1763 1
CLAMP 92171 92171-1383 1
SHIM,55X64X0.15 92180 92180-1417 AR
SHIM,55X64X0.20 92180A 92180-1418 AR
SHIM,55X64X0.50 92180B 92180-1419 AR
SHIM,55X64X0.80 92180C 92180-1420 AR
SHIM,55X64X1.00 92180D 92180-1421 AR
SHIM,55X64X1.20 92180E 92180-1422 AR
SHIM,60X72X0.15 92180F 92180-1423 AR
BOLT-FLANGED,8X16 130 130G0816 1
BEARING-BALL 601 601A6011 1
O RING 671 671D2585 1
SHIM,60X72X0.20 92180G 92180-1424 AR
SHIM,60X72X0.50 92180H 92180-1425 AR
SHIM,60X72X0.80 92180I 92180-1426 AR
SHIM,60X72X1.00 92180J 92180-1427 AR
SHIM,60X72X1.20 92180K 92180-1428 AR
TUBE,BREATHER 92191 92191-1595 1
NUT,30MM 92210 92210-1294 1
