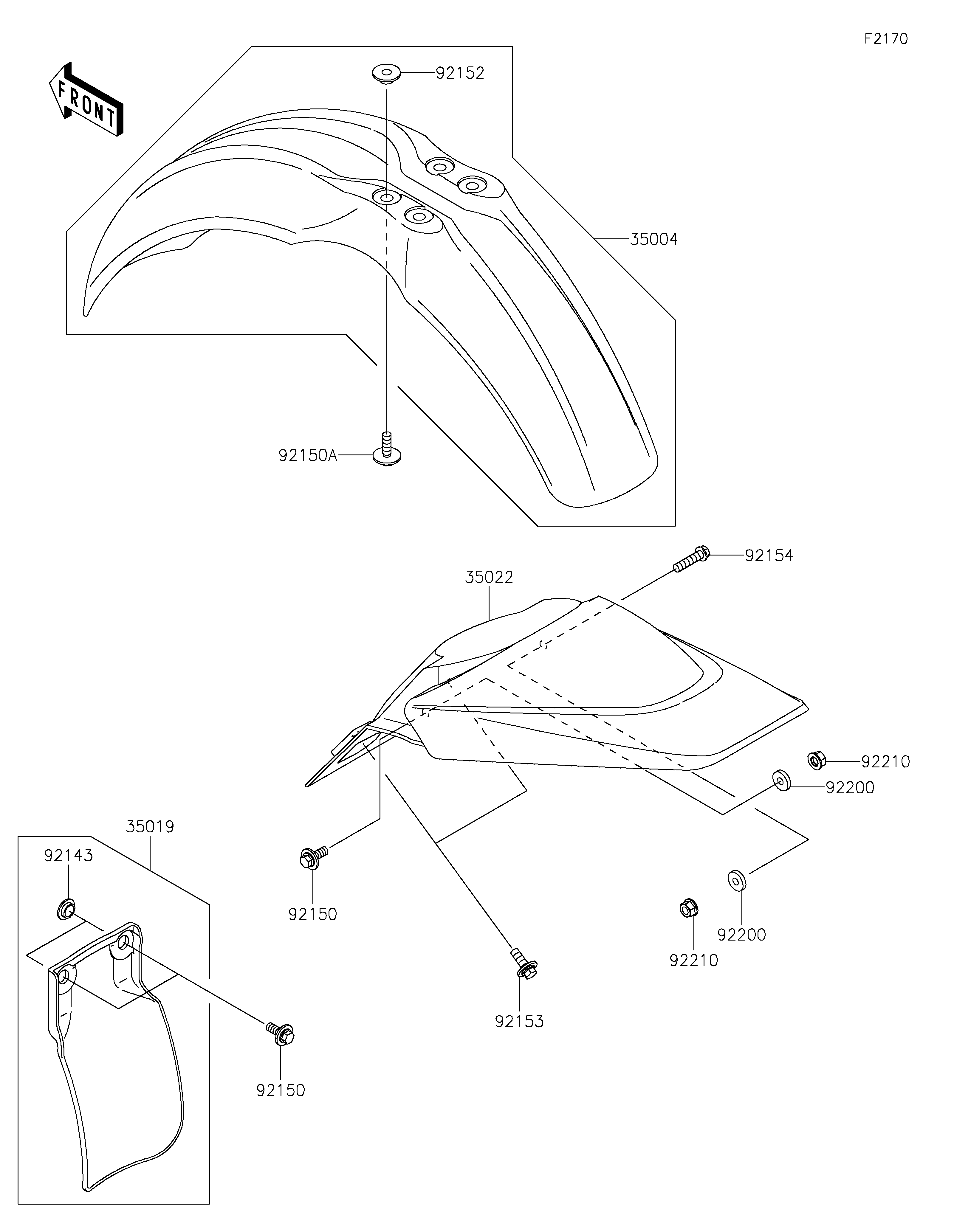

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FRONT,L.GREEN 35004 35004-1416-290 1
FLAP,REAR FENDER,BLACK 35019 35019-1395-6D 1
FENDER-COMP-REAR,L.GREEN 35022 35022-1342-290 1
COLLAR 92143 92143-1196 2
BOLT,FLANGED,6X16 92150 92150-1506 3
BOLT,6X20 92150A 92150-1801 4
COLLAR 92152 92152-1255 4
BOLT,6X20 92153 92153-0502 2
BOLT,FLANGED,6X25 92154 92154-0520 1
WASHER,6.5X20X1.6 92200 92200-0283 2
NUT,FLANGED,6MM 92210 92210-0630 2
