130
130A
14091
14091A
14091B
14091C
35004
35019
35019A
49125
49125A
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92009B
92009B
92009B
92009B
92009B
92015
92015
92015
92015
92015A
92015A
92022
92022
92022
92022
92039
92039
92039
92039
92039
92093
92093A
92093B
92143
92143
92152
92152A
92152B
92152B
92152B
92152B
92161
92161
92172
92172
92172A
92172A
92210
92210

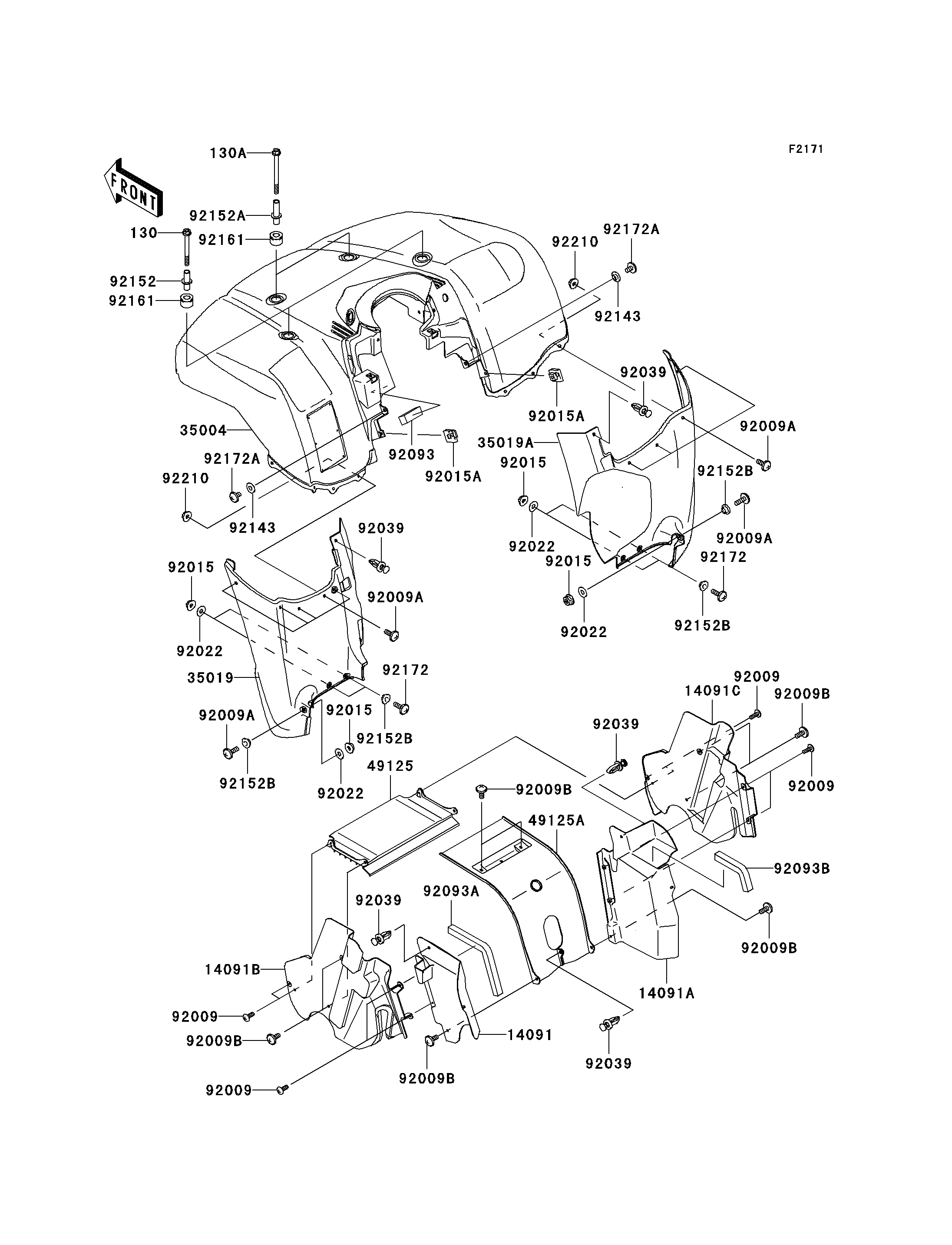

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X75 130 130S0875 2
BOLT-FLANGED,8X95 130A 130S0895 2
COVER,SIDE,RR,LH 14091 14091-1282 1
COVER,SIDE,RR,RH 14091A 14091-1283 1
COVER,SIDE,FR,LH 14091B 14091-1428 1
COVER,SIDE,FR,RH 14091C 14091-1429 1
FENDER-FRONT,C.H.GREEN 35004 35004-0044-826 1
FLAP,FR,LH,F.BLACK 35019 35019-0038-6Z 1
FLAP,FR,RH,F.BLACK 35019A 35019-0039-6Z 1
SHROUD,FR,LWR 49125 49125-0006 1
SHROUD,FR,UPP 49125A 49125-1081 1
SCREW,TAPPING,5X14 92009 92009-1197 8
SCREW,6X16 92009A 92009-1621 11
SCREW,6X14 92009B 92009-1662 8
NUT,FLANGED,6MM 92015 92015-1367 6
NUT,CLAMP,6MM 92015A 92015-1678 2
WASHER,6.5X16X1.0 92022 92022-1093 6
RIVET 92039 92039-1229 5
SEAL,FR FENDER,LH 92093 92093-0038 1
SEAL,INNER COVER,LH 92093A 92093-0039 1
SEAL,INNER COVER,RH 92093B 92093-0040 1
COLLAR 92143 92143-1087 2
COLLAR,L=60.7 92152 92152-0026 2
COLLAR,L=76.8 92152A 92152-0222 2
COLLAR 92152B 92152-0224 6
DAMPER,L=25.5 92161 92161-1166 4
SCREW,6X18 92172 92172-0002 4
SCREW,6X10 92172A 92172-0005 2
NUT,6MM 92210 92210-1368 9
