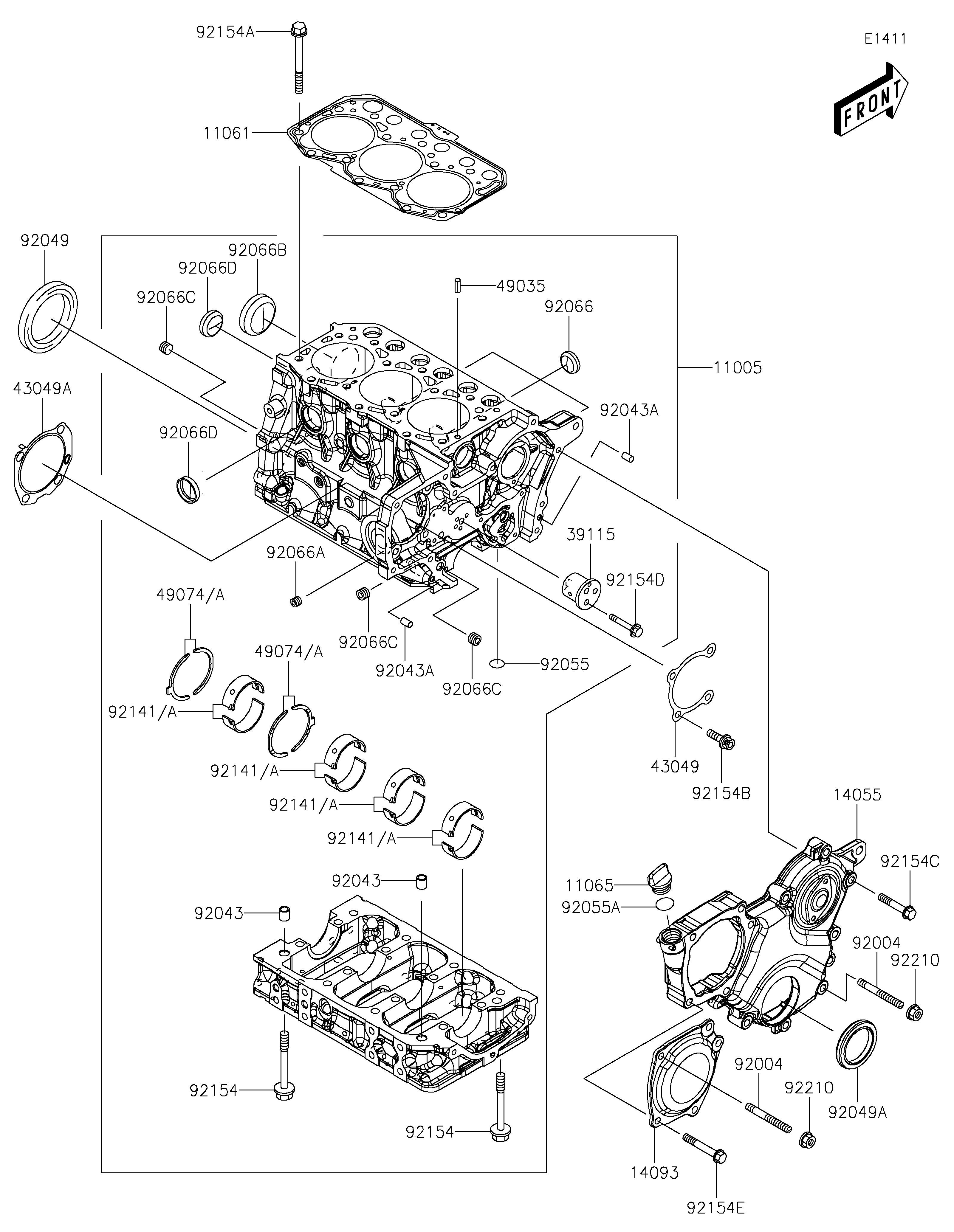

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER-ENGINE 11005 11005-0664 1
GASKET,HEAD 11061 11061-1192 1
CAP 11065 11065-0936 1
CASE-GEAR 14055 14055-0622 1
COVER 14093 14093-0439 1
SHAFT-IDLER 39115 39115-0025 1
PACKING 43049 43049-0035 1
PACKING 43049A 43049-0036 1
PIN-SPRING 49035 49035-0016 2
PLATE-THRUST 49074 49074-0003 2
PLATE-THRUST,O/S,0.25 49074A 49074-0005 AR
STUD,8X60 92004 92004-0744 2
PIN,KNOCK 92043 92043-0883 2
PIN,6X10 92043A 92043-0884 2
SEAL-OIL 92049 92049-0787 1
SEAL-OIL 92049A 92049-0788 1
RING-O 92055 92055-0854 1
RING-O 92055A 92055-0855 1
PLUG 92066 92066-0846 3
PLUG 92066A 92066-0847 1
PLUG 92066B 92066-0849 1
PLUG 92066C 92066-0850 3
PLUG 92066D 92066-0860 4
BEARING-PLANE,STD 92141 92141-0004 4
BEARING-PLANE,U/S,0.25 92141A 92141-0005 AR
BOLT,FLANGED 92154 92154-1981 16
BOLT,FLANGED 92154A 92154-1982 14
BOLT,SOCKET 92154B 92154-1983 4
BOLT,FLANGED,8X35 92154C 92154-1984 7
BOLT,FLANGED,6X40 92154D 92154-1995 3
BOLT,FLANGED,8X45 92154E 92154-2000 4
NUT,8MM 92210 92210-1473 2
