14093
23008
25005
25023
25031
28011
92022
92069
92069
92154
92161
92172
92172A
92173
92200

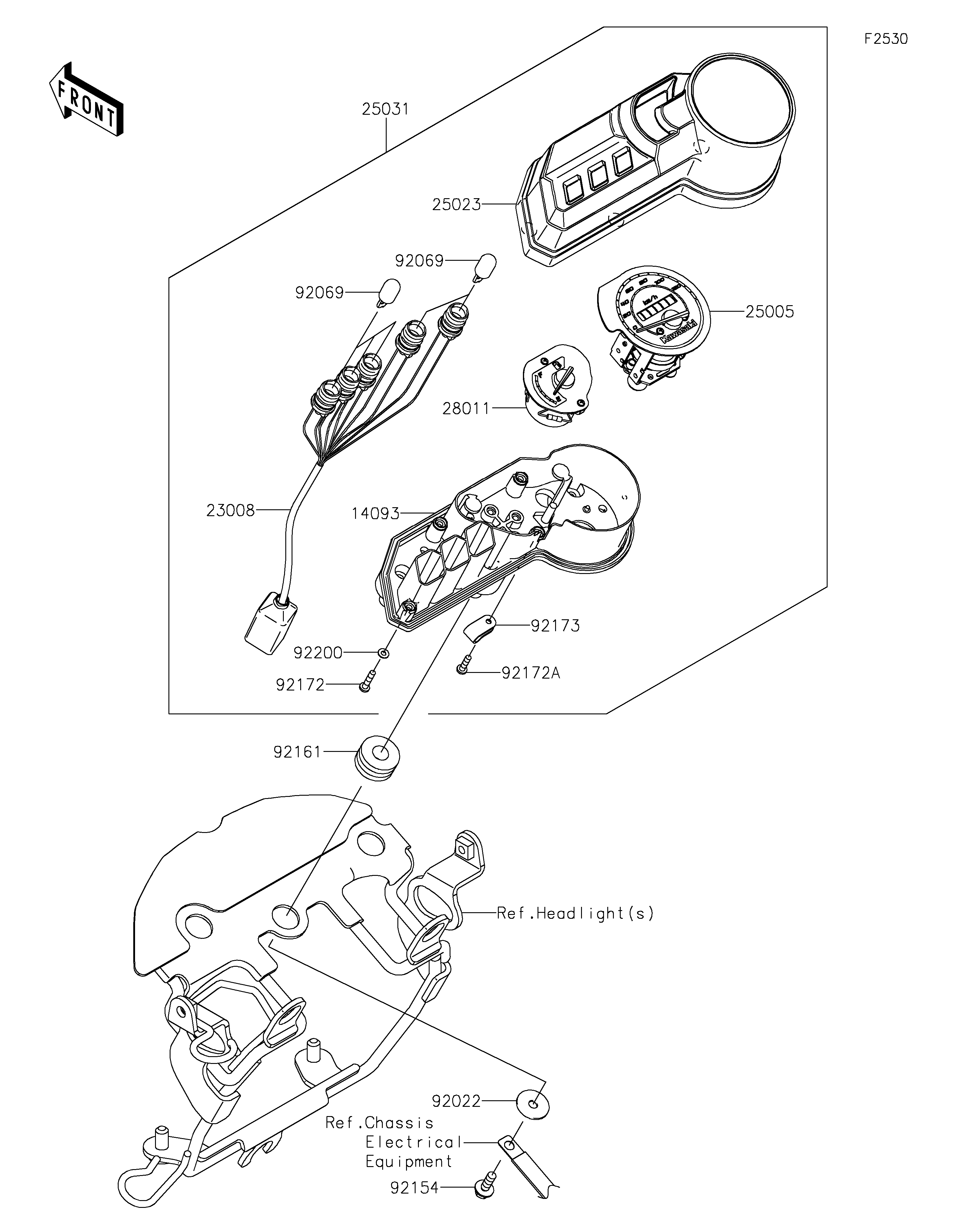

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER 14093 14093-0471 1
SOCKET-ASSY 23008 23008-0175 1
SPEEDOMETER 25005 25005-0138 1
COVER-METER CASE 25023 25023-0123 1
METER-ASSY,KPH 25031 25031-0779 1
METER 28011 28011-0657 1
WASHER,5.5X20X1.2 92022 92022-104 3
BULB,12V 1.7W,T10 92069 92069-0100 5
BOLT,FLANGED,5X14 92154 92154-0458 3
DAMPER,10X24X12 92161 92161-2112 3
SCREW,3X12 92172 92172-1103 5
SCREW 92172A 92172-1104 1
CLAMP 92173 92173-1577 1
WASHER 92200 92200-1823 5
