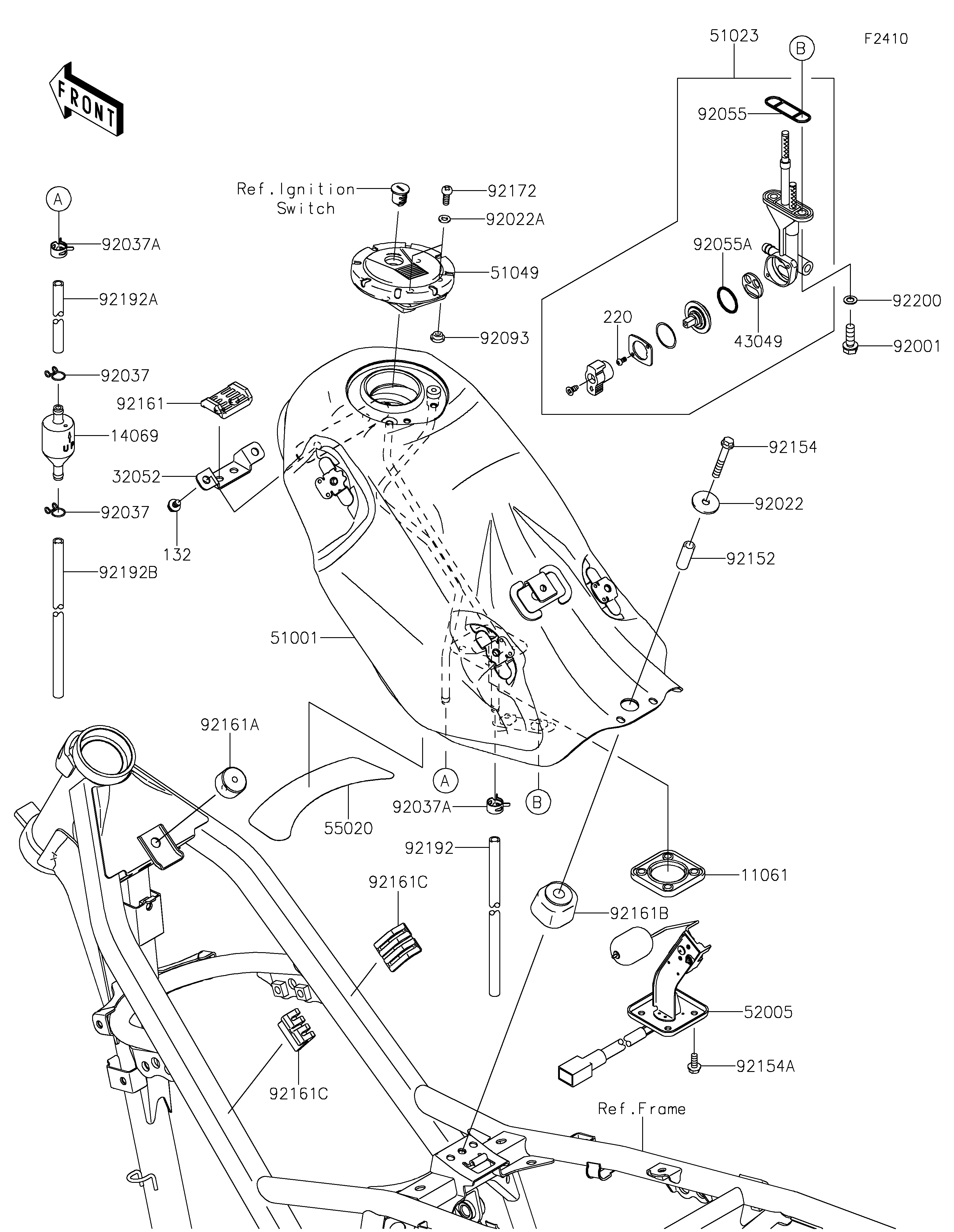

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL GAUGE 11061 11061-0279 1
BOLT-FLANGED-SMALL,6X8 132 132BB0608 2
BREATHER,FUEL TANK 14069 14069-1004 1
SCREW-PAN-CROS,3X8 220 220AA0308 2
BRACKET-TANK 32052 32052-0735 1
PACKING,TAP VALVE 43049 43049-1091 1
TANK-COMP-FUEL,F.S.BLACK 51001 51001-0828-25Q 1
TAP-ASSY,FUEL 51023 51023-0037 1
CAP-TANK,FUEL 51049 51049-0049 1
GAUGE,FUEL TANK 52005 52005-0748 1
GUARD 55020 55020-0950 1
BOLT,6X20 92001 92001-1091 2
WASHER,6.5X24X2 92022 92022-1690 1
WASHER,5.1X10X1.0 92022A 92022-1977 2
CLAMP,TUBE 92037 92037-147 2
CLAMP 92037A 92037-1601 2
RING-O,FUEL TAP PACKING 92055 92055-1112 1
RING-O,TAP LEVER 92055A 92055-1419 1
SEAL,RO 2X12X4.8 92093 92093-0722 1
COLLAR,6.8X10X27 92152 92152-2175 1
BOLT 92154 92154-1134 1
BOLT,FLANGED,5X12 92154A 92154-1215 4
DAMPER 92161 92161-0705 1
DAMPER 92161A 92161-1533 1
DAMPER 92161B 92161-1817 1
DAMPER 92161C 92161-2111 2
SCREW,5X10 92172 92172-0496 2
TUBE,6X9X620 92192 92192-1085 1
TUBE,6X9X56 92192A 92192-1442 1
TUBE,6X9X260 92192B 92192-1443 1
WASHER,6.5X11.5X0.8 92200 92200-0177 2
