11056
132
14079
14092
32098
32098A
39137
482
55020
55020
92022
92022
92039
92043
92072
92122
92152
92152A
92152B
92154
92154
92154A
92154B
92154C
92154D
92161
92210

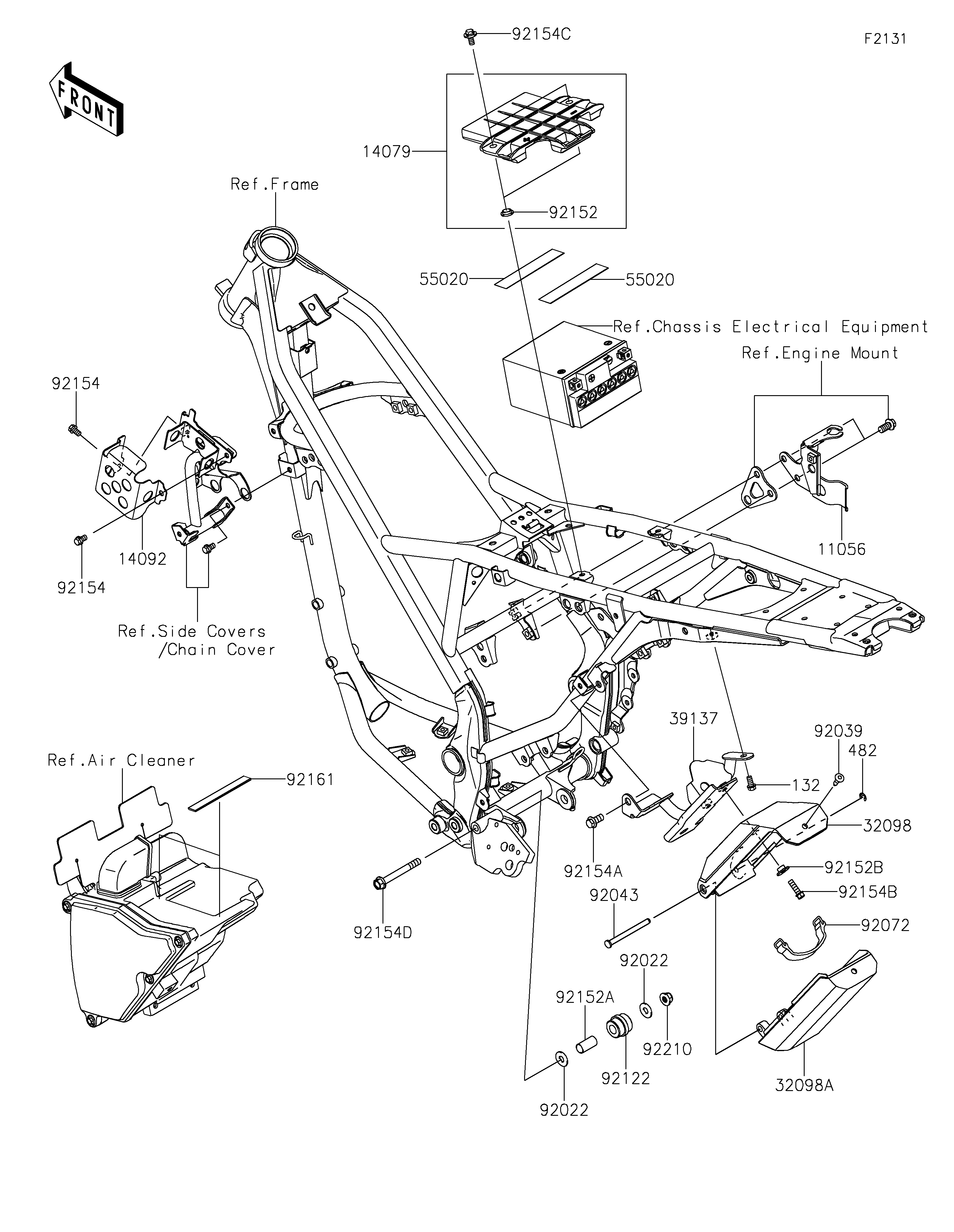

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RESERVOIR 11056 11056-7776 1
BOLT-FLANGED-SMALL,6X12 132 132BA0612 1
HOLDER-ASSY,BATTERY 14079 14079-0031 1
COVER,IGNITER 14092 14092-0035 1
CASE-TOOL,BASE 32098 32098-0022 1
CASE-TOOL,COVER 32098A 32098-0024 1
STAY-COMP,TOOL CASE 39137 39137-0668 1
CIRCLIP-TYPE-E 482 482EA5000 1
GUARD 55020 55020-0594 2
WASHER,8.5X20X1.6 92022 92022-1561 2
RIVET 92039 92039-0709 1
PIN 92043 92043-0834 1
BAND 92072 92072-0738 1
ROLLER,GUIDE CHAIN 92122 92122-0041 1
COLLAR,8.8X11.2X4 92152 92152-0909 2
COLLAR,9.5X12.5X25 92152A 92152-1881 1
COLLAR,6.8X10X6.6 92152B 92152-1978 2
BOLT,FLANGED,6X10 92154 92154-0459 2
BOLT,FLANGED,8X16 92154A 92154-0462 1
BOLT,FLANGED,6X16 92154B 92154-1157 2
BOLT,FLANGED,6X14 92154C 92154-1231 2
BOLT,FLANGED,8X80 92154D 92154-1355 1
DAMPER 92161 92161-0838 2
NUT,LOCK,FLANGED,8MM 92210 92210-0140 1
