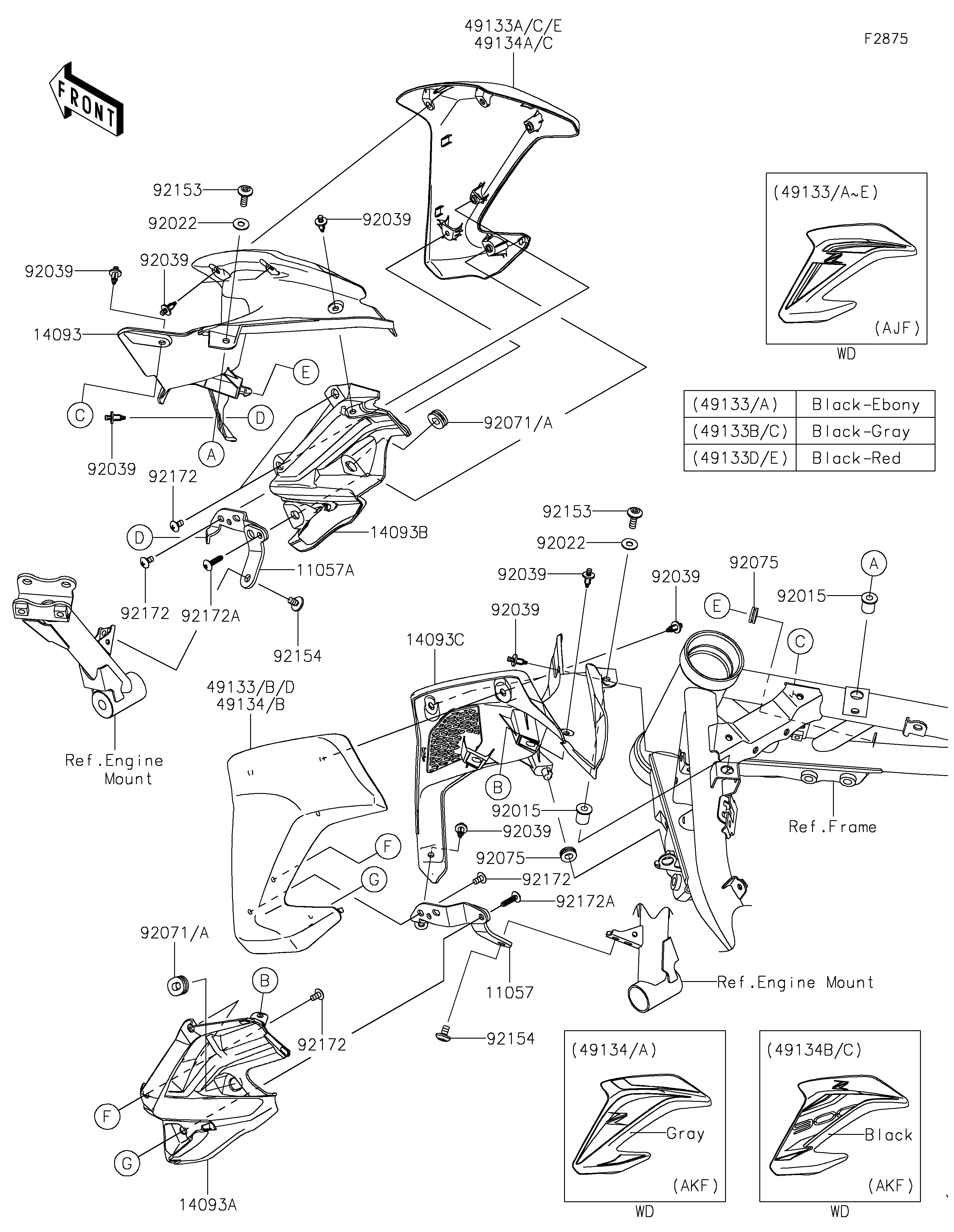

2019 Z900 - Shroud

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
14093
14093A
14093B
14093C
49134
49134A
49134B
49134C
92015
92015
92022
92022
92039
92039
92039
92039
92039
92039
92039
92039
92071A
92071A
92075
92075
92153
92153
92154
92154
92172
92172
92172
92172
92172A
92172A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SHROUD,LH 11057 11057-0254 1
BRACKET,SHROUD,RH 11057A 11057-0255 1
COVER,INNER,RH,FR 14093 14093-0506 1
COVER,INNER,LH,RR 14093A 14093-0507 1
COVER,INNER,RH,RR 14093B 14093-0508 1
COVER,INNER,LH,FR 14093C 14093-0638 1
SHROUD,LH,M.M.GRAY 49134 49134-5010-25X 1
SHROUD,RH,M.M.GRAY 49134A 49134-5011-25X 1
SHROUD,LH,M.F.S.BLACK 49134B 49134-5012-739 1
SHROUD,RH,M.F.S.BLACK 49134C 49134-5013-739 1
NUT 92015 92015-1700 2
WASHER,6.5X16X1.0 92022 92022-1654 2
RIVET 92039 92039-0068 10
GROMMET,EMBOSSED 0777 92071A 92071-0777 2
DAMPER 92075 92075-161 2
BOLT,6X18 92153 92153-0816 2
BOLT,SOCKET,6X10 92154 92154-2667 2
SCREW,5X10 92172 92172-0864 6
SCREW,TAPPING,5X20 92172A 92172-1159 2
