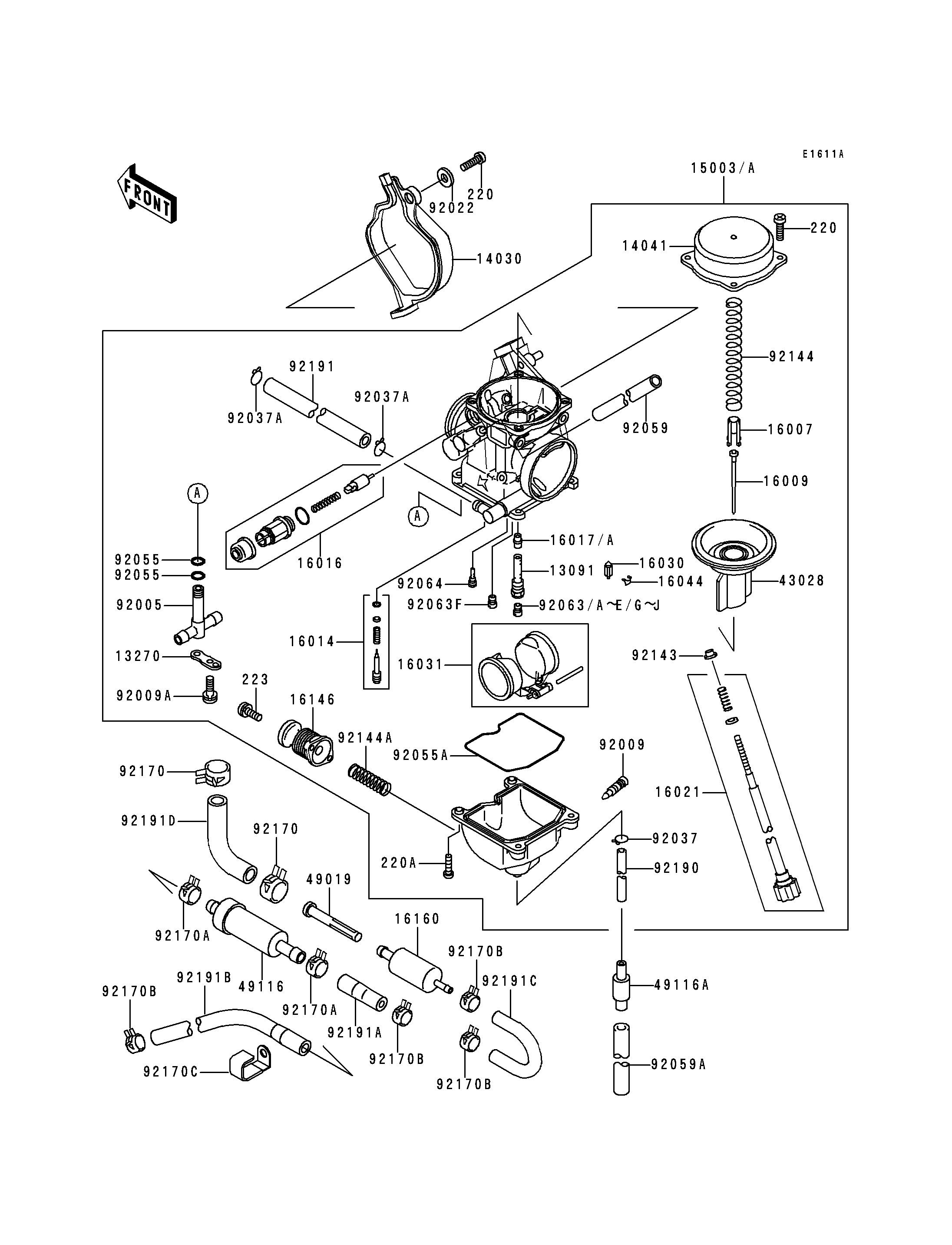

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,NEEDLE JET 13091 13091-1259 1
PLATE,FITTING STAY 13270 13270-1063 1
COVER-CARBURETOR 14030 14030-1054 1
COVER-COMP,MIXING,INSIDE 14041 14041-1061 1
SEAT-SPRING,VALVE 16007 16007-1134 1
NEEDLE-JET,N3RC 16009 16009-1928 1
SCREW-PILOT AIR 16014 16014-1080 1
PLUNGER,STARTER 16016 16016-1101 1
SCREW-THROTTLE STOP 16021 16021-1213 1
VALVE-FLOAT 16030 16030-1007 1
FLOAT 16031 16031-1077 1
CLAMP,FLOAT VALVE 16044 16044-007 1
COVER-ASSY,PUMP 16146 16146-1129 1
DIAPHRAGM,VALVE 43028 43028-1081 1
VALVE-ASSY 49116A 49116-1126 1
FITTING 92005 92005-1235 1
SCREW,DRAIN,M6X0.75 92009 92009-1551 1
SCREW 92009A 92009-1713 1
WASHER,5.2X13X1 92022 92022-1380 1
CLAMP,TUBE 92037 92037-1201 1
CLAMP,TUBE 92037A 92037-1531 2
RING-O,4.5X1.5 92055 92055-1427 2
RING-O,FLOAT CHAMBER 92055A 92055-1518 1
TUBE,6.5X9.5X260 92059 92059-1598 1
TUBE,7X10X100 92059A 92059-1736 1
JET-MAIN,#140 92063 92063-1013 1 (OPTION)
JET-MAIN,#135 92063A 92063-1014 1 (OPTION)
JET-MAIN,#138 92063B 92063-1015 1 (OPTION)
JET-MAIN,#142 92063C 92063-1016 1 (OPTION)
JET-MAIN,#145 92063E 92063-1017 1 (OPTION)
JET-MAIN,#85 92063F 92063-1023 1
JET-MAIN,#148 92063H 92063-1324 1 (OPTION)
JET-MAIN,#150 92063I 92063-1330 1 (OPTION)
JET-MAIN,#152 92063J 92063-1331 1 (OPTION)
JET-PILOT,#35 92064 92064-1101 1
COLLAR 92143 92143-1589 1
SPRING,VACUUM VALVE 92144 92144-1066 1
SPRING,PUMP 92144A 92144-1672 1
TUBE,4.5X8X330 92190 92190-1557 1
TUBE,6.5X11.5X130 92191 92191-1144 1
SCREW-PAN-CROS 220 220B0408 5
SCREW-PAN-CROS 220A 220D0414 4
SCREW-PAN-WS-CROS 223 223C0412 2
CARBURETOR-ASSY 15003 15003-1401 1
CARBURETOR-ASSY 15003A 15003-1415 1
JET-NEEDLE 16017 16017-1319 1
JET-NEEDLE,#6 16017A 16017-1393 1
BODY,FILTER 16160 16160-1151 1
FILTER-WATER 49019 49019-1068 1
VALVE-ASSY 49116 49116-1081 1
JET-MAIN,#145 92063D 92063-1017 1
JET-MAIN,#148 92063G 92063-1324 1
CLAMP 92170 92170-1491 2
CLAMP 92170A 92170-1492 2
CLAMP 92170B 92170-1493 4
CLAMP 92170C 92170-1863 1
TUBE 92191A 92191-1223 1
TUBE 92191B 92191-1224 1
TUBE 92191C 92191-1248 1
TUBE 92191D 92191-1249 1
