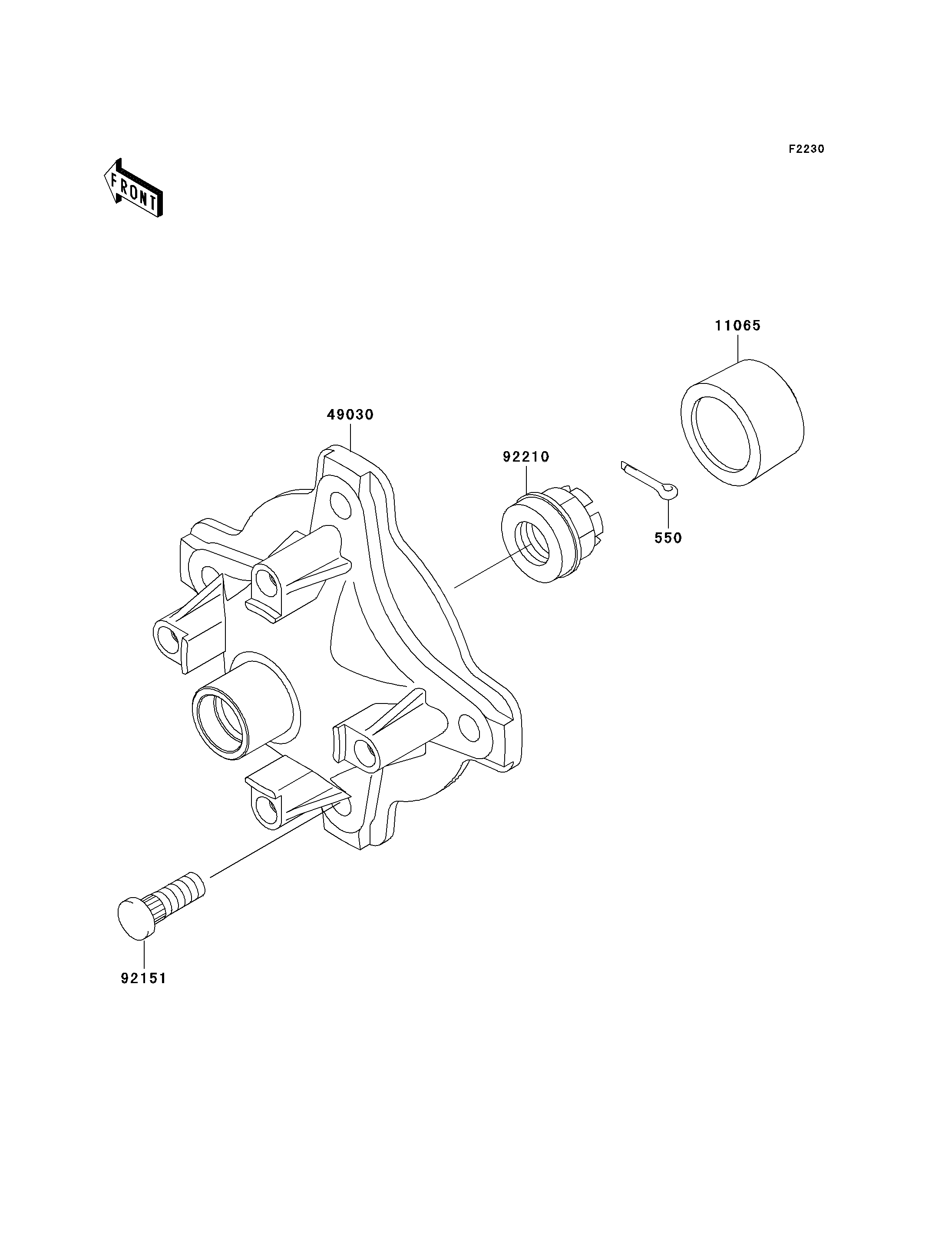

550
11065
49030
92151
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-COTTER,4.0X25 550 550D4025 2
CAP,WHEEL 11065 11065-1153 2
HUB,FR 49030 49030-7508 2
BOLT,10X29.5 92151 92151-1392 8
NUT,CASTLE,18MM 92210 92210-1349 2
