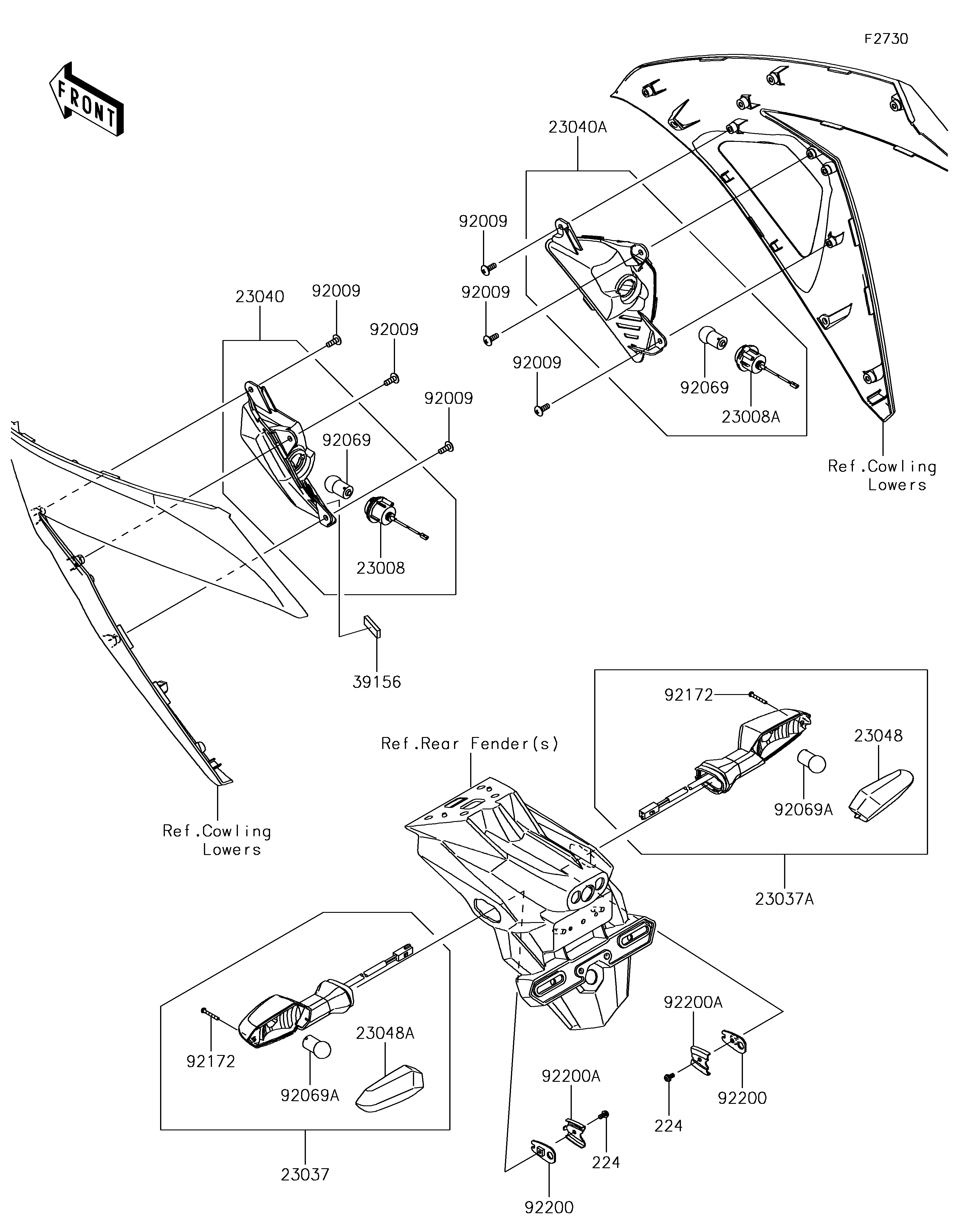

224
224
23008
23008A
23037
23037A
23040
23040A
23048
23048A
39156
92009
92009
92009
92009
92009
92009
92069
92069
92069A
92069A
92172
92172
92200
92200
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-WP-CROS,4X8 224 224AB0408 2
SOCKET-ASSY,LH 23008 23008-0163 1
SOCKET-ASSY,RH 23008A 23008-0164 1
LAMP-ASSY-SIGNAL,RR,LH 23037 23037-0304 1
LAMP-ASSY-SIGNAL,RR,RH 23037A 23037-0305 1
LAMP-SIGNAL,FR,LH 23040 23040-0127 1
LAMP-SIGNAL,FR,RH 23040A 23040-0128 1
LENS-SIGNAL LAMP,RR,RH 23048 23048-0025 1
LENS-SIGNAL LAMP,RR,LH 23048A 23048-0026 1
PAD,10X30X4 39156 39156-0927 1
SCREW,TAPPING,5X14 92009 92009-1197 6
BULB,12V 10W 92069 92069-0058 2
BULB,12V 10W 92069A 92069-0076 2
SCREW,2.9X22 92172 92172-0395 2
WASHER,SIGNAL LAMP 92200 92200-0164 2
WASHER,SIGNAL LAMP 92200A 92200-0165 2
