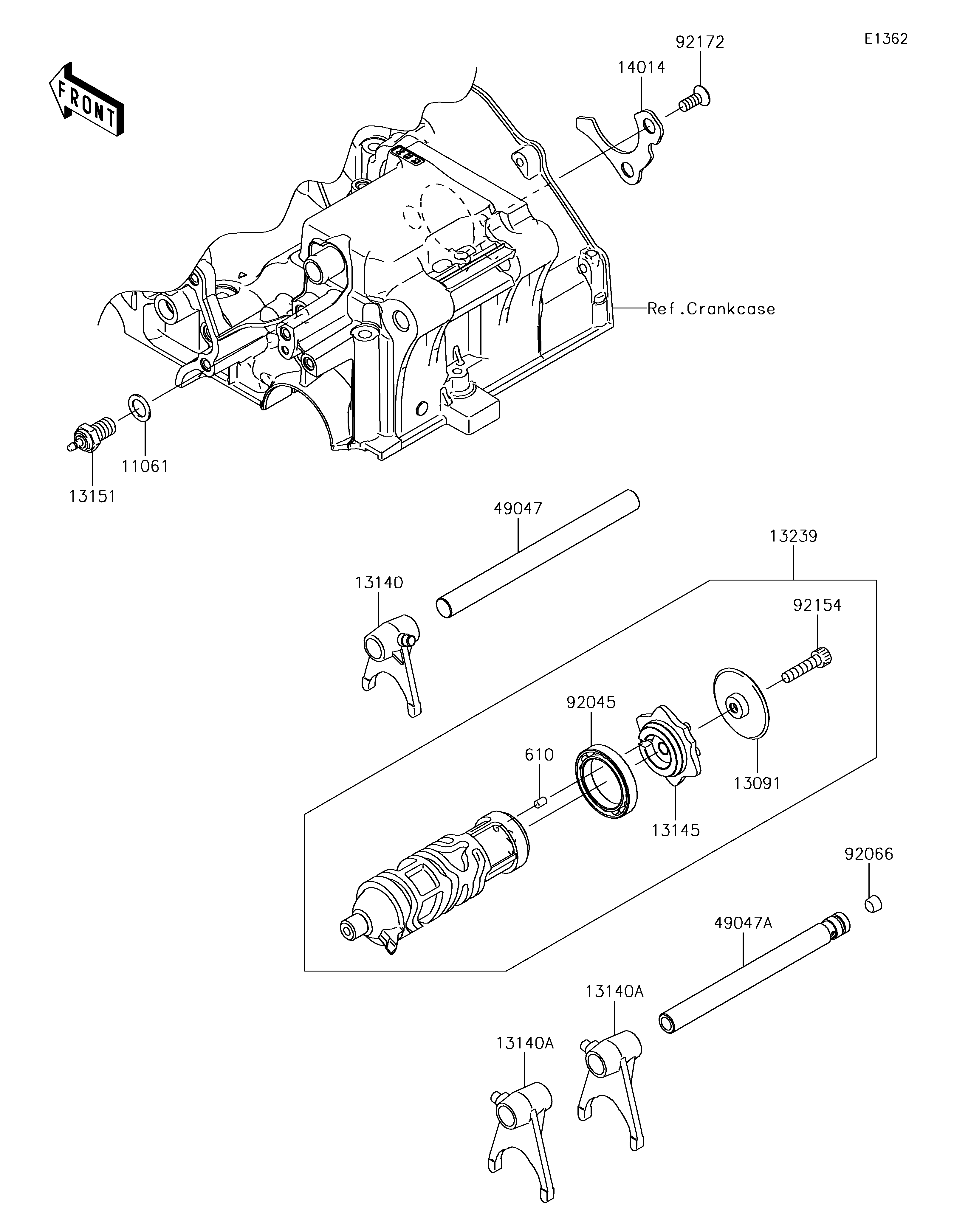

2017 Ninja 300 - Gear Change Drum/Shift Fork(s)

11061
13091
13140
13140A
13140A
13145
13151
13239
14014
49047
49047A
610
92045
92066
92154
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,10.5X16X1 11061 11061-0373 1
HOLDER,CHANGE DRUM 13091 13091-1464 1
FORK-SHIFT,IN 13140 13140-1148 1
FORK-SHIFT,OUT 13140A 13140-1149 2
CAM-CHANGE DRUM 13145 13145-0556 1
SWITCH-COMP,NEUTRAL 13151 13151-1102 1
DRUM-ASSY-CHANGE 13239 13239-0562 1
PLATE-POSITION 14014 14014-0564 1
ROD-SHIFT,IN 49047 49047-0625 1
ROD-SHIFT,OUT 49047A 49047-0626 1
ROLLER,4X6 610 610A0406 1
BEARING-BALL,6806 92045 92045-1152 1
PLUG 92066 92066-1246 1
BOLT,SOCKET,6X25 92154 92154-0954 1
SCREW,6X15 92172 92172-0812 2
