130
130
130
130
130
130
130
132
132
132
132
132A
132A
39156
39156A
53007
53007A
53007B
53007C
53045
53045
53061
53061A
53061B
53061C
53061C
53066A
53066A
53066B
53066B
92026
92026
92026
92039
92039
92145
92145
92153
92153
92161
92161
92161
92161
92200
92200
92200

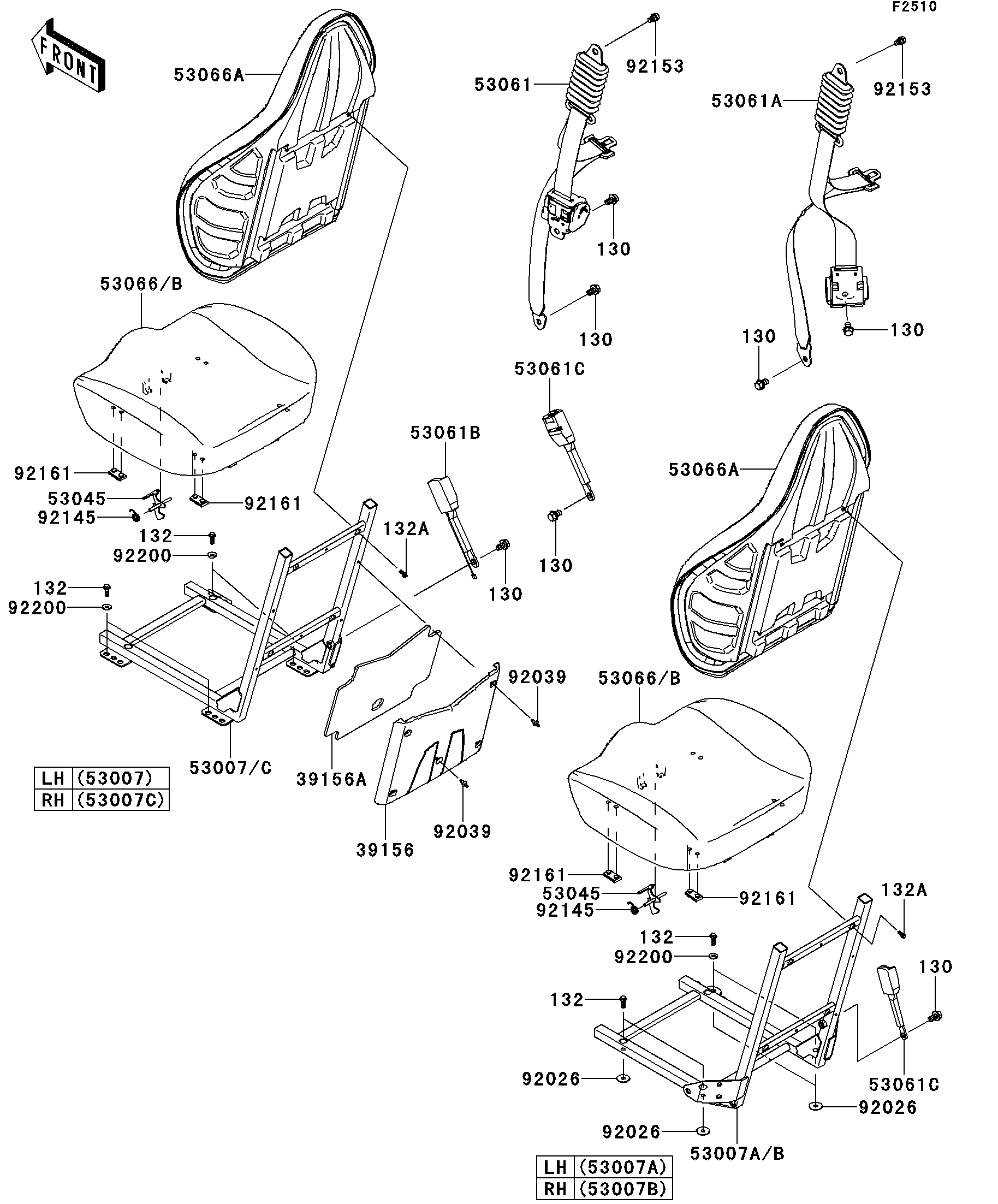

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,12X20 130 130BB1220 12
BOLT-FLANGED-SMALL,8X22 132 132BA0822 16
BOLT-FLANGED-SMALL,6X14 132A 132BB0614 16
PAD,SEAT BACK 39156 39156-0805 2
PAD,FR SEAT BACK 39156A 39156-0864 2
FRAME-SEAT,FR,LH 53007 53007-0332 1
FRAME-SEAT,RR,LH 53007A 53007-0333 1
FRAME-SEAT,RR,RH 53007B 53007-0334 1
FRAME-SEAT,FR,RH 53007C 53007-0335 1
HOOK-ASSY 53045 53045-0566 4
BELT-SEAT,RETRACTOR,FR 53061 53061-0317 2
BELT-SEAT,RETRACTOR,RR 53061A 53061-0318 2
BELT-SEAT,BUCKLE,FR,LH 53061B 53061-0319 1
BELT-SEAT,BUCKLE 53061C 53061-0320 3
SEAT-ASSY,BACK,SILVER/BLACK 53066A 53066-0343-13Z 4
SEAT-ASSY,BASE,BLACK 53066B 53066-0374-MA 4
SPACER,8.6X30X4.5 92026 92026-0714 8
RIVET,FASTENER 92039 92039-0713 10
SPRING,SEAT LATCH 92145 92145-0022 4
BOLT,FLANGED,10X16 92153 92153-1740 4
DAMPER,SEAT 92161 92161-1489 16
WASHER,8.2X20.0X2.5 92200 92200-0205 12
