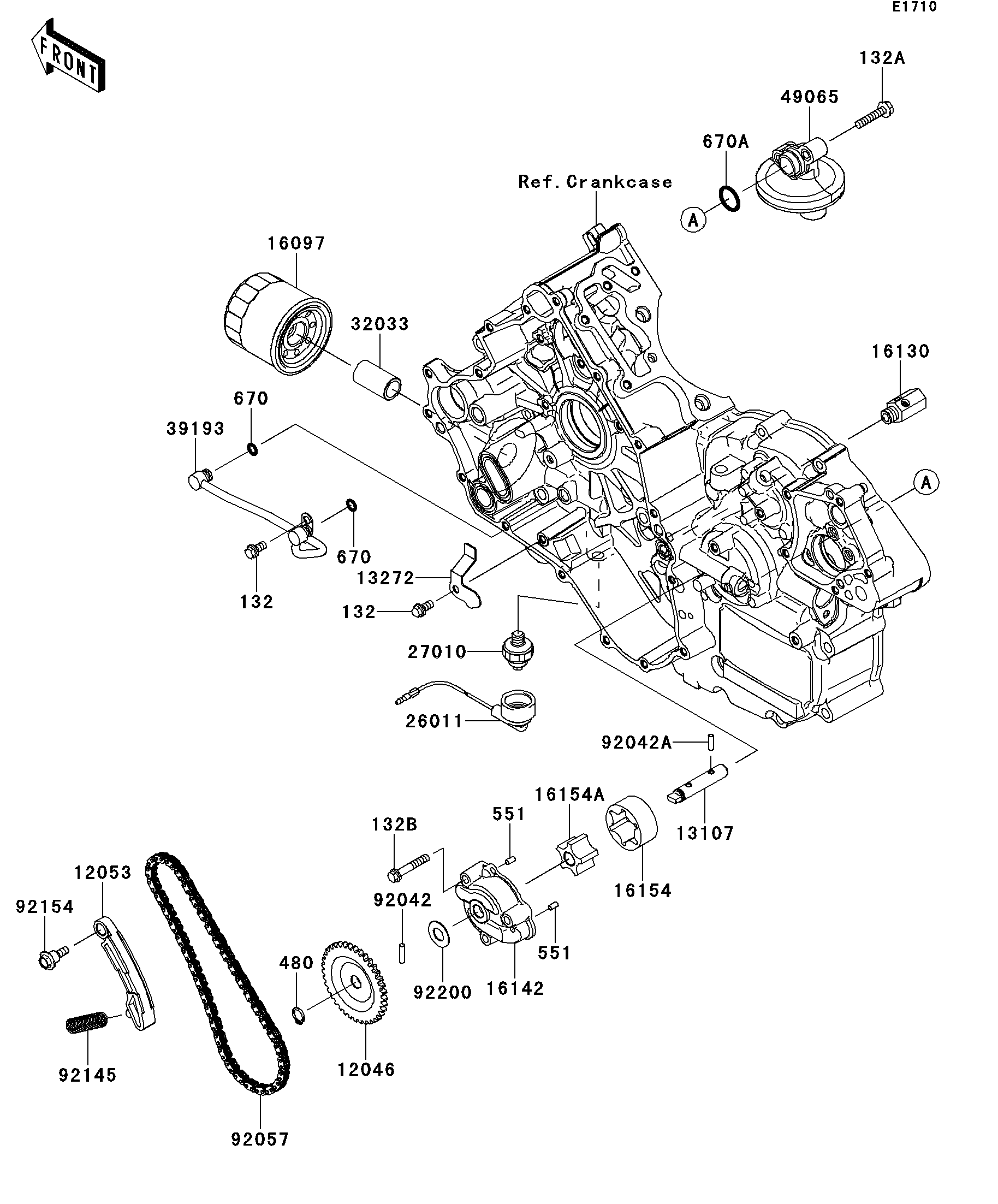

2013 Teryx4 750 4x4 EPS LE - Oil Pump/Oil Filter

12046
12053
13107
132
132
13272
132A
132B
16097
16130
16142
16154
16154A
26011
27010
32033
39193
480
49065
551
551
670
670
670A
92042
92042A
92057
92145
92154
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET,OIL PUMP,37T 12046 12046-0557 1
GUIDE-CHAIN 12053 12053-0180 1
SHAFT,OIL PUMP 13107 13107-0718 1
BOLT-FLANGED-SMALL,6X12 132 132BA0612 2
PLATE 13272 13272-0988 1
BOLT-FLANGED-SMALL,6X30 132A 132BA0630 2
BOLT-FLANGED-SMALL,6X35 132B 132BA0635 3
FILTER-ASSY-OIL 16097 16097-0003 1
VALVE-ASSY-RELIEF 16130 16130-1058 1
COVER-PUMP 16142 16142-0704 1
ROTOR-PUMP,OUTER 16154 16154-0706 1
ROTOR-PUMP,INNER 16154A 16154-0707 1
WIRE-LEAD 26011 26011-0751 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
PIPE,OIL FILTER 32033 32033-1535 1
PIPE-OIL 39193 39193-0570 1
CIRCLIP-TYPE-C,11MM 480 480J1100 1
FILTER-OIL 49065 49065-0710 1
PIN-DOWEL,4X8 551 551A0408 2
O RING,7MM 670 670D1507 2
O RING 670A 670D2018 1
PIN,DOWEL,4X16.8 92042 92042-029 1
PIN,DOWEL,4X13.8 92042A 92042-030 1
CHAIN,DID SCR-0409 SV 92057 92057-0561 1
SPRING 92145 92145-0830 1
BOLT,FLANGED,6X8.3 92154 92154-0709 1
WASHER,11.3X23X1 92200 92200-0719 1
