32190
32190
32190A
32190B
92015
92153
92154
92154
92154A
92154B
92154C
92154D
92210
92210
92210A
92210A

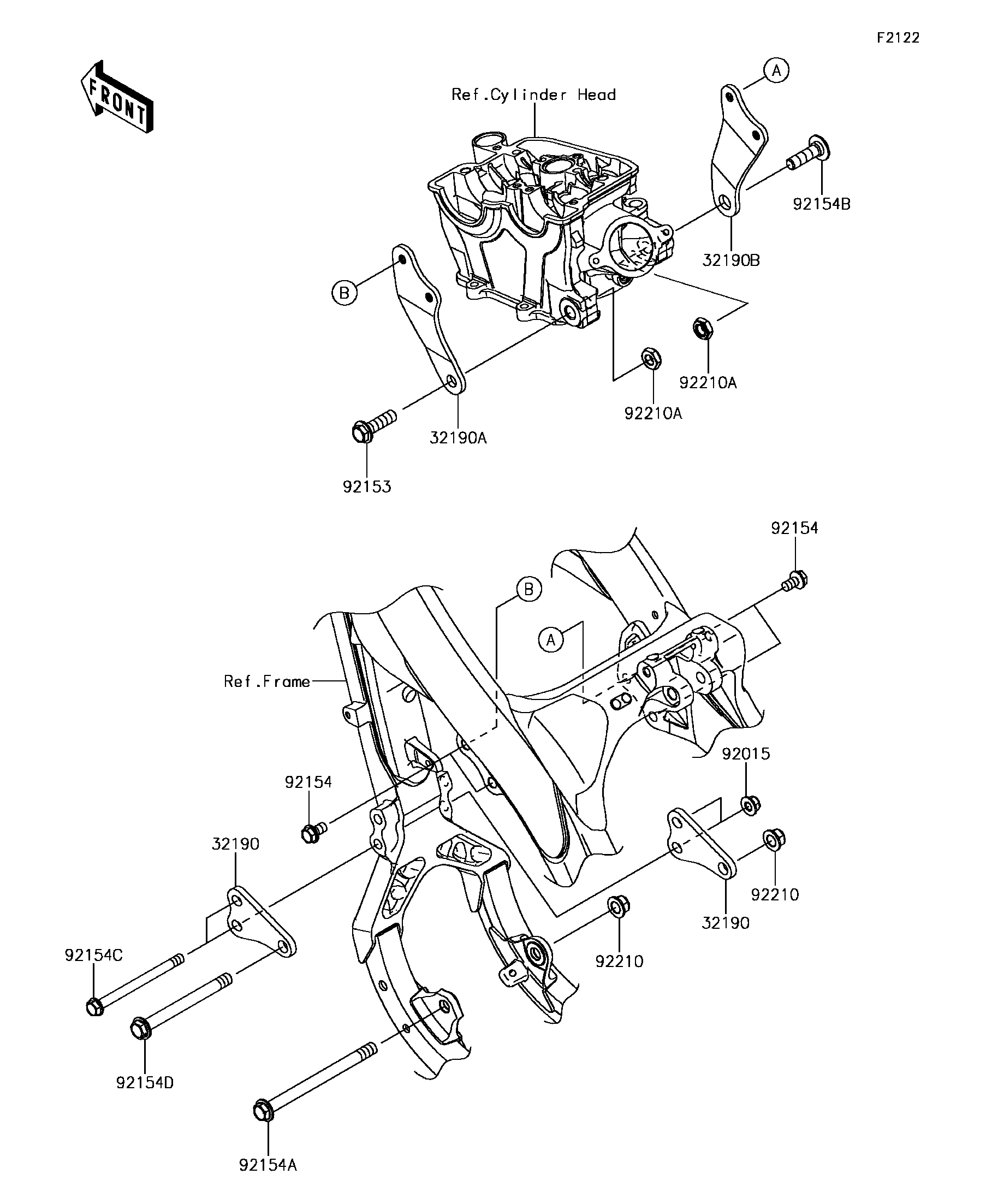

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-ENGINE,FR 32190 32190-0714 2
BRACKET-ENGINE,UPP,LH 32190A 32190-0715 1
BRACKET-ENGINE,UPP,RH 32190B 32190-0717 1
NUT,8MM 92015 92015-1432 2
BOLT,FLANGED,10X35 92153 92153-0802 1
BOLT,FLANGED,8X14 92154 92154-0380 4
BOLT,FLANGED,10X130 92154A 92154-0517 1
BOLT,SOCKET,10X35 92154B 92154-2102 1
BOLT,FLANGED,8X102 92154C 92154-2155 2
BOLT,FLANGED,10X104 92154D 92154-2156 1
NUT,LOCK,FLANGED,10MM 92210 92210-1080 2
NUT,LOCK,10MM 92210A 92210-1184 2
