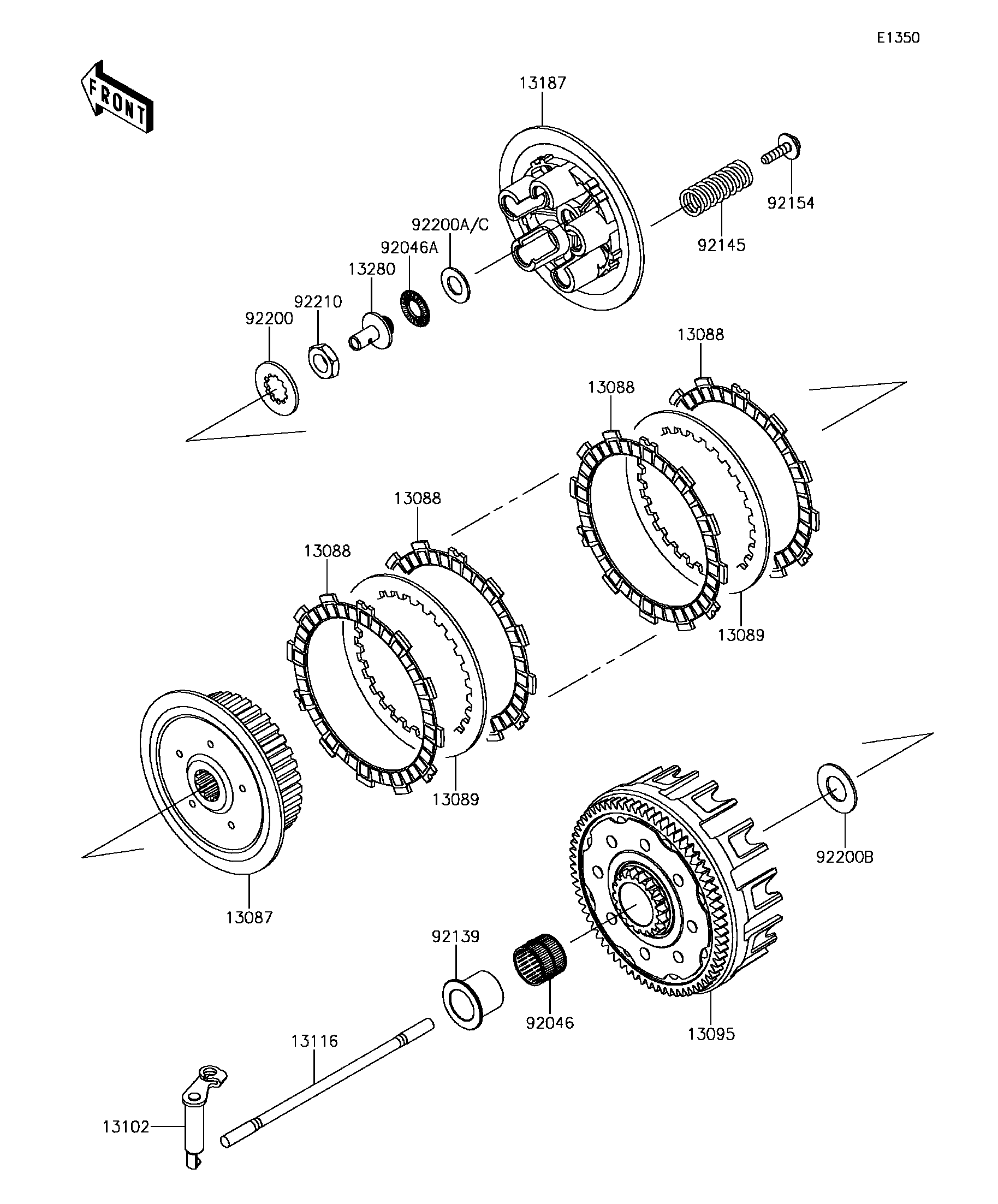

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HUB-CLUTCH 13087 13087-0017 1
PLATE-FRICTION 13088 13088-0018 8
PLATE-CLUTCH,T=1.6 13089 13089-0005 7
HOUSING-COMP-CLUTCH 13095 13095-0107 1
RELEASE-COMP-CLUTCH 13102 13102-0050 1
ROD-PUSH 13116 13116-0727 1
PLATE-CLUTCH OPERATING 13187 13187-1089 1
HOLDER 13280 13280-0339 1
BEARING-NEEDLE,WRS273124A 92046 92046-0016 1
BEARING-NEEDLE,FNTA-1326 92046A 92046-1190 1
BUSHING 92139 92139-0014 1
SPRING,K=10.7N/MM 92145 92145-0351 5
BOLT,6X25 92154 92154-0180 5
WASHER,21.6X38X2.5 92200 92200-0027 1
WASHER,13.4X25X1.0 92200A 92200-0045 AR
WASHER,22.3X43X2 92200B 92200-0098 1
WASHER,13.4X25.0X1.5 92200C 92200-1548 1
NUT,16MM 92210 92210-1207 1
