12048
12053
12053A
12053B
13271
14013
14013A
21118
49118
49118A
92055
92057
92145
92153
92153A
92154
92154A

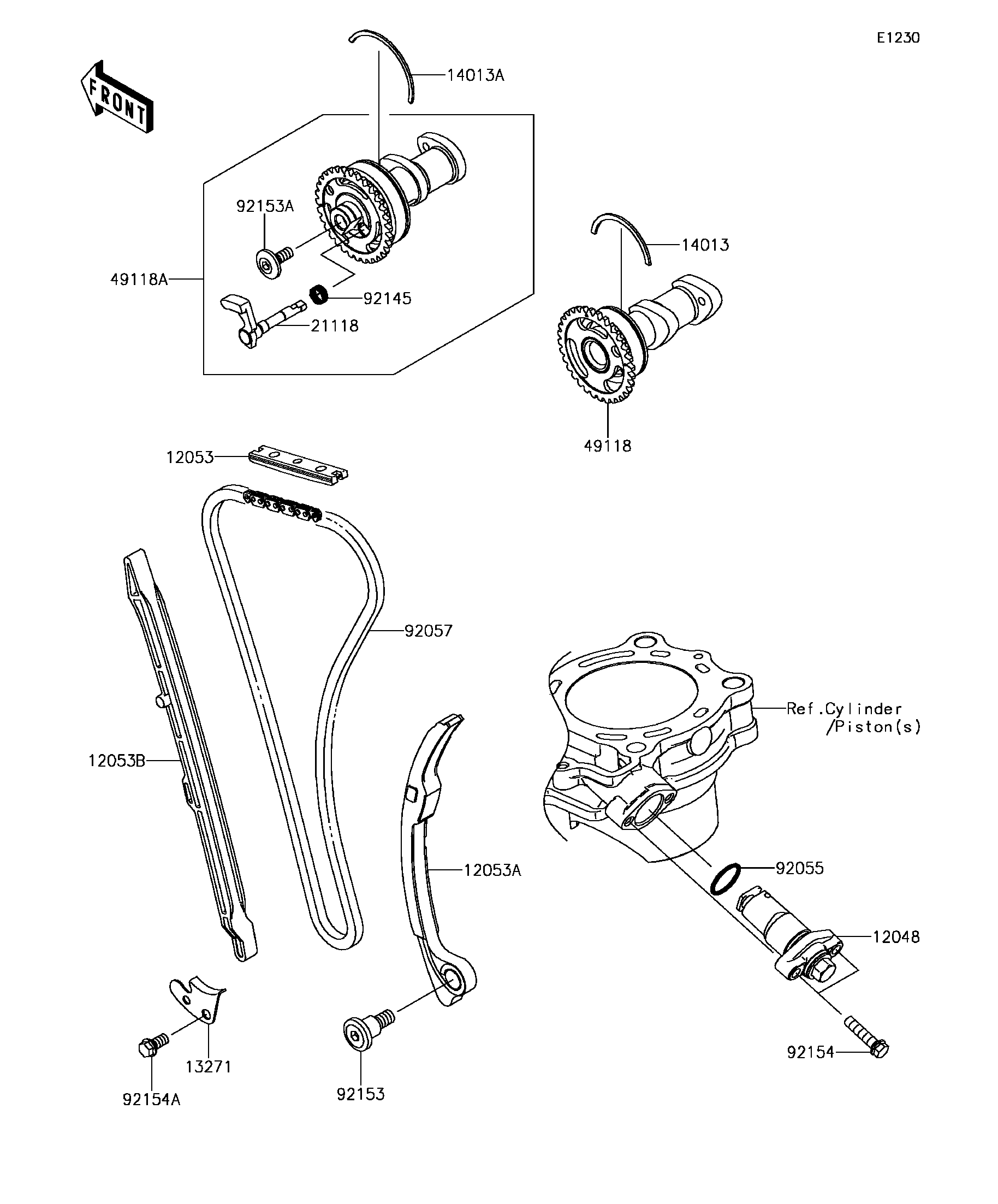

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TENSIONER-ASSY 12048 12048-0056 1
GUIDE-CHAIN,UPP 12053 12053-0009 1
GUIDE-CHAIN,RR 12053A 12053-0231 1
GUIDE-CHAIN,FR 12053B 12053-0238 1
PLATE,CAM CHAIN STOPPER 13271 13271-0808 1
RING-POSITION 14013 14013-0001 1
RING-POSITION 14013A 14013-0002 1
DECOMPRESSOR 21118 21118-0016 1
CAMSHAFT-COMP,IN 49118 49118-0865 1
CAMSHAFT-COMP,EXHAUST 49118A 49118-0866 1
RING-O,18.8X1.9 92055 92055-086 1
CHAIN,CAM,98XTRH2005-116M 92057 92057-0688 1
SPRING,DECOMP 92145 92145-0758 1
BOLT,12X24.5 92153 92153-0572 1
BOLT,SOCKET,6X16 92153A 92153-0918 1
BOLT,FLANGED,6X25 92154 92154-0520 2
BOLT,FLANGED,6X12 92154A 92154-2095 1
