13070
14079
21007
41080
43048
43056
43057
43080
43082
49006
49006A
92043
92043A
92049
92093
92145
92150
92154

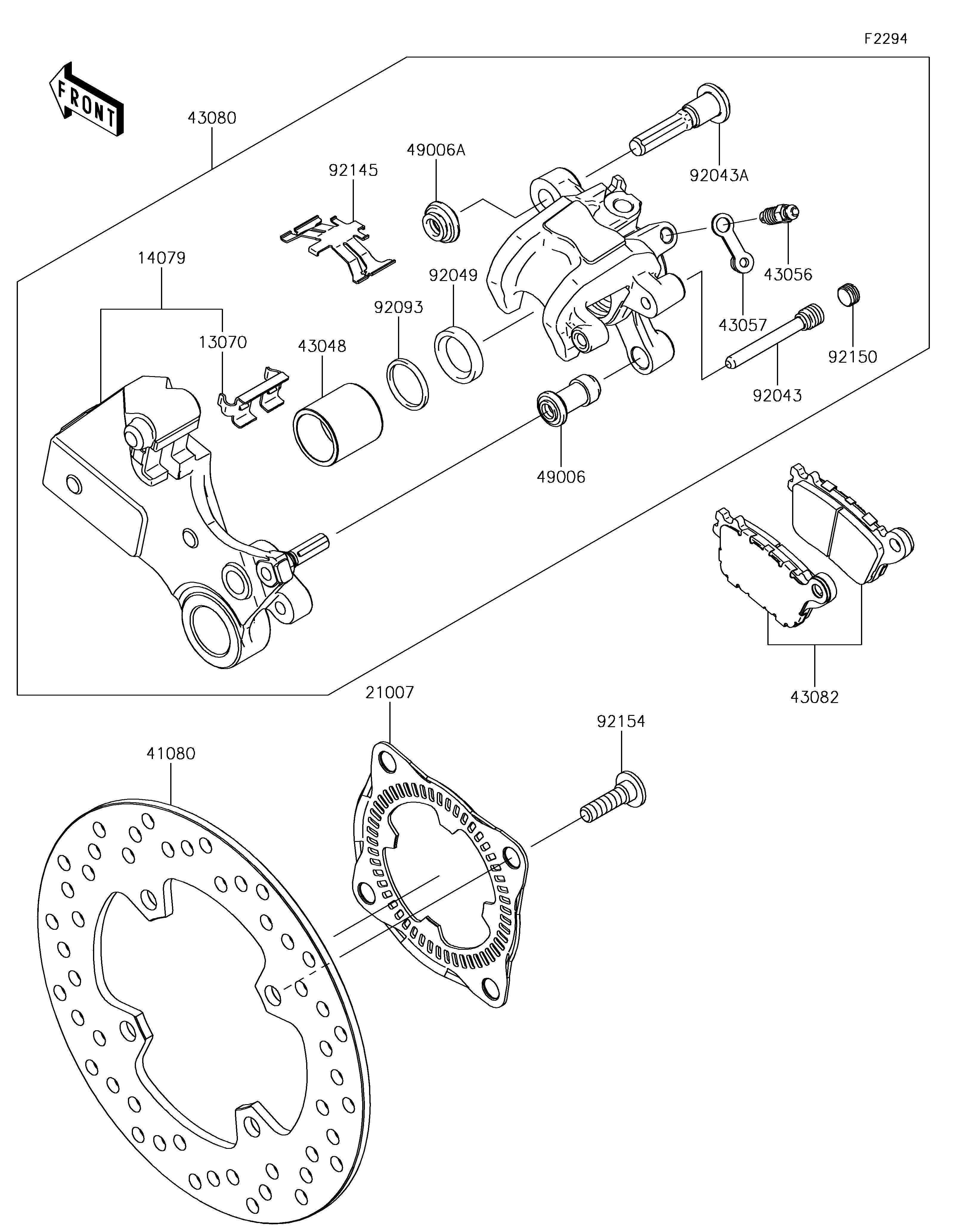

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE 13070 13070-0126 1
HOLDER-ASSY 14079 14079-0074 1
ROTOR,RR WHEEL 21007 21007-0167 1
DISC,RR 41080 41080-0662 1
PISTON-CALIPER 43048 43048-0018 1
BREATHER 43056 43056-1055 1
CAP-BREATHER 43057 43057-1001 1
CALIPER-SUB-ASSY,RR,BLACK 43080 43080-0097-DJ 1
PAD-ASSY-BRAKE 43082 43082-0115 1
BOOT,CALIPER 49006 49006-1088 1
BOOT,CALIPER 49006A 49006-1242 1
PIN,PAD 92043 92043-0106 1
PIN 92043A 92043-1508 1
SEAL-OIL,PISTON 92049 92049-1331 1
SEAL,PISTON 92093 92093-1272 1
SPRING 92145 92145-0810 1
BOLT,PLUG 92150 92150-1692 1
BOLT,SOCKET,8X30 92154 92154-1865 4
