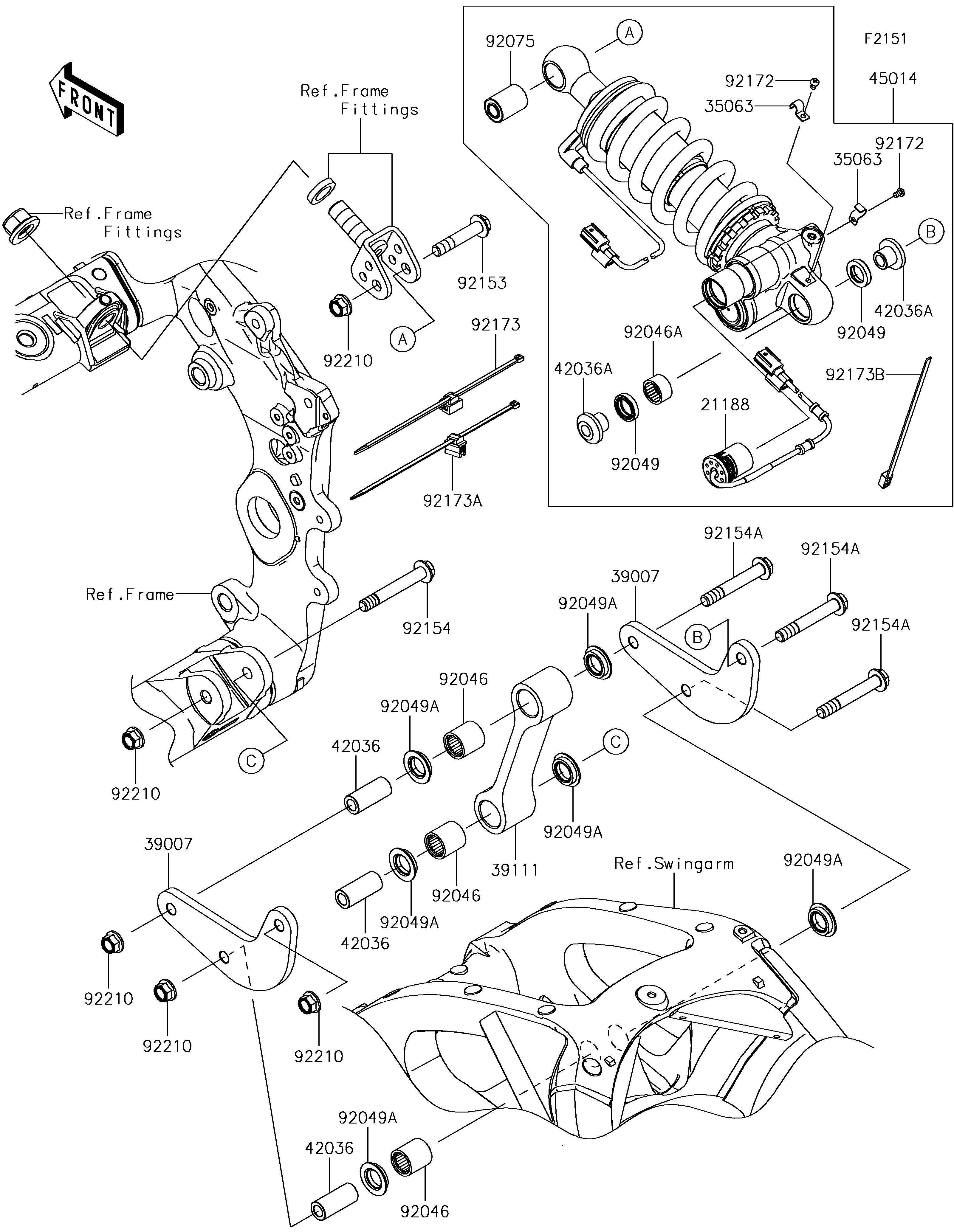

2018 Ninja® ZX-10R - Suspension/Shock Absorber

21188
35063
35063
39007
39007
39111
42036
42036
42036
42036A
42036A
45014
92046
92046
92046
92046A
92049
92049
92049A
92049A
92049A
92049A
92049A
92049A
92075
92153
92154
92154A
92154A
92154A
92172
92172
92173
92173A
92173B
92210
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SOLENOID 21188 21188-0014 1
STAY 35063 35063-1439 2
ARM-SUSP 39007 39007-0419 2
ROD-TIE,SUSPENSION 39111 39111-0337 1
SLEEVE,10.1X17X39 42036 42036-0075 3
SLEEVE 42036A 42036-0789 2
SHOCKABSORBER,KECS,L.GREEN+GRN 45014 45014-0607-52Q 1
BEARING-NEEDLE,SFYZM172425 92046 92046-1273 3
BEARING-NEEDLE,7E-HVS16X22X12 92046A 92046-1301 1
SEAL-OIL 92049 92049-0792 2
SEAL-OIL,MHA17245.7F 92049A 92049-1223 6
DAMPER,SHOCKABSORBER 92075 92075-1426 1
BOLT,FLANGED,10X51 92153 92153-1545 1
BOLT,FLANGED,10X71 92154 92154-0384 1
BOLT,FLANGED,10X67 92154A 92154-3783 3
SCREW 92172 92172-1252 2
CLAMP 92173 92173-1578 1
CLAMP,EDGE CLIP CABLE,L=200 92173A 92173-1896 1
CLAMP 92173B 92173-1918 1
NUT,LOCK,FLANGED,10MM 92210 92210-1139 5
