290
290
290
290
32160
32160A
32160B
32160C
551
551
92045
92045
92049
92049A
92152
92152
92152A
92152B
92154
92154
92154A
92154A
92154B
92154B
92200
92200A
92210
92210A
92210B
92210C

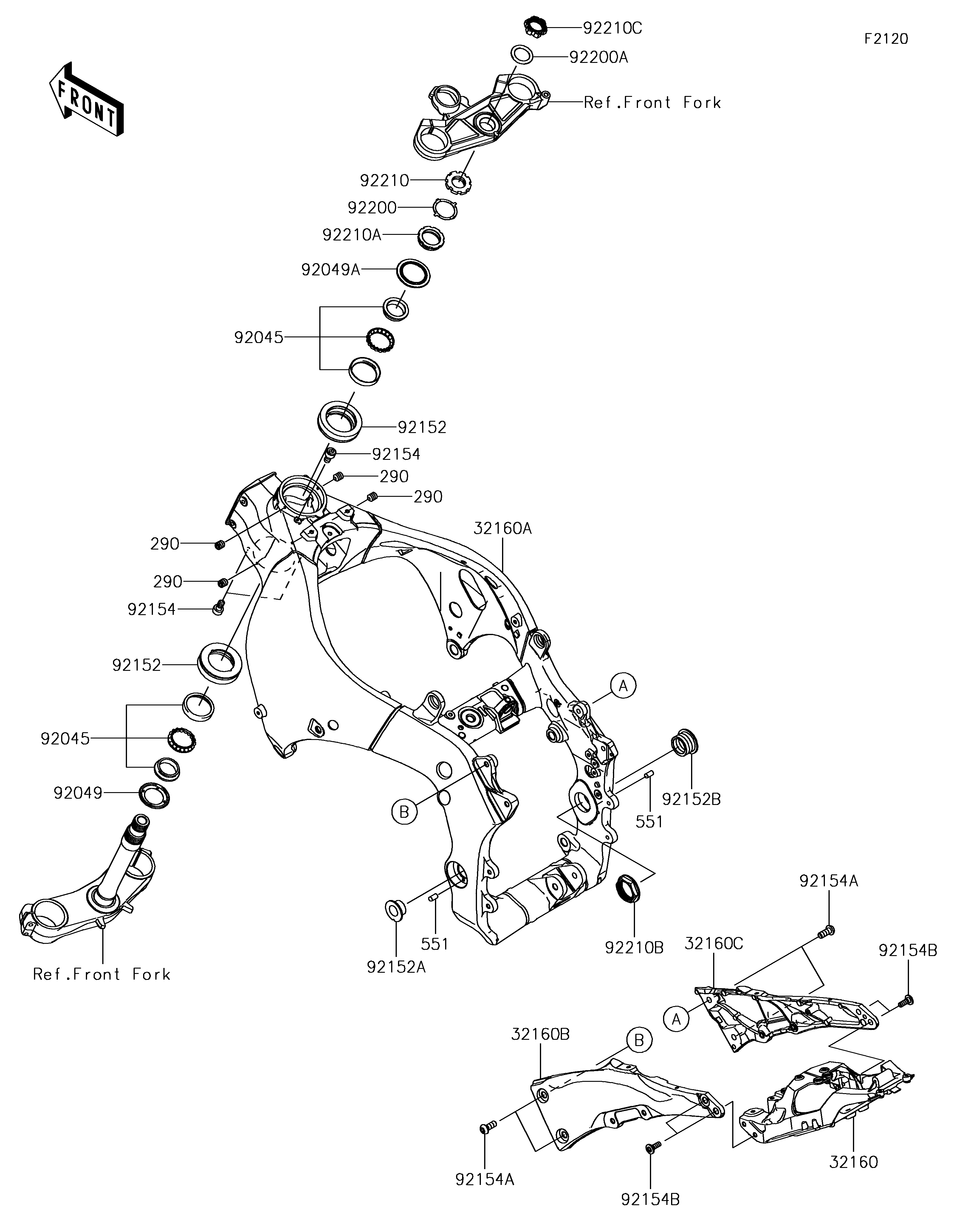

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-SET-SOCKET,5X6 290 290Q0506 4
FRAME-COMP,RR,CNT 32160 32160-0801 1
FRAME-COMP,MAIN 32160A 32160-0882 1
FRAME-COMP,RR,LH,F.S.BLACK 32160B 32160-0885-18R 1
FRAME-COMP,RR,RH,F.S.BLACK 32160C 32160-0886-18R 1
PIN-DOWEL 551 551R0408 2
BEARING-BALL,SF07A17PX1V1 92045 92045-1384 2
SEAL-OIL,DS35X55X4 92049 92049-0022 1
SEAL-OIL,43X55.5X8.6 92049A 92049-0742 1
COLLAR,55X77X18.5 92152 92152-2165 2
COLLAR,20.5X40X17.5 92152A 92152-2300 1
COLLAR,30X47X24 92152B 92152-2301 1
BOLT,SOCKET,5X10 92154 92154-1642 3
BOLT,SOCKET,10X25 92154A 92154-1900 4
BOLT,SOCKET,8X23 92154B 92154-1901 4
WASHER 92200 92200-0036 1
WASHER,28.5X40X1.6 92200A 92200-0595 1
NUT,35MM 92210 92210-0095 1
NUT,35MM 92210A 92210-0823 1
NUT,38MM 92210B 92210-1441 1
NUT,28MM 92210C 92210-1460 1
