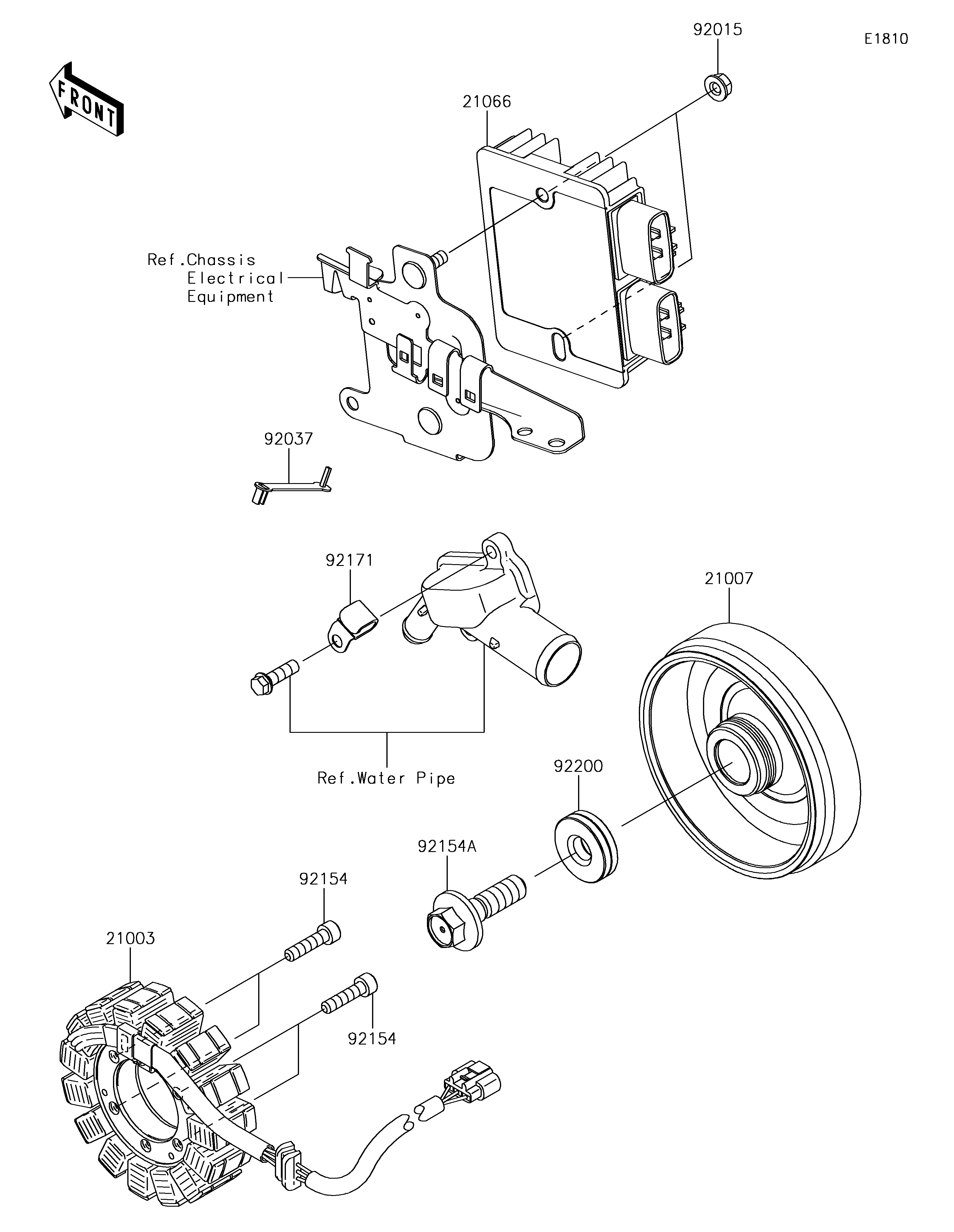

21003
21007
21066
92015
92037
92154
92154
92154A
92171
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STATOR 21003 21003-0107 1
ROTOR 21007 21007-0591 1
REGULATOR-VOLTAGE 21066 21066-0748 1
NUT,FLANGED,6MM 92015 92015-1367 2
CLAMP,SPEED,L=43 92037 92037-1290 1
BOLT,SOCKET,6X25 92154 92154-0477 4
BOLT,12X40 92154A 92154-1944 1
CLAMP 92171 92171-0534 1
WASHER,12X34X9 92200 92200-0369 1
