11061
12046
12053
13107
13107A
132
132A
16097
16130
16142
16154
16160
21053
32033
480
49063
49065
551
551
59256
92002
92022
92022A
92042
92042A
92049
92055
92055A
92055B
92057
92152
92154
92154A
92154A
92154B
92200

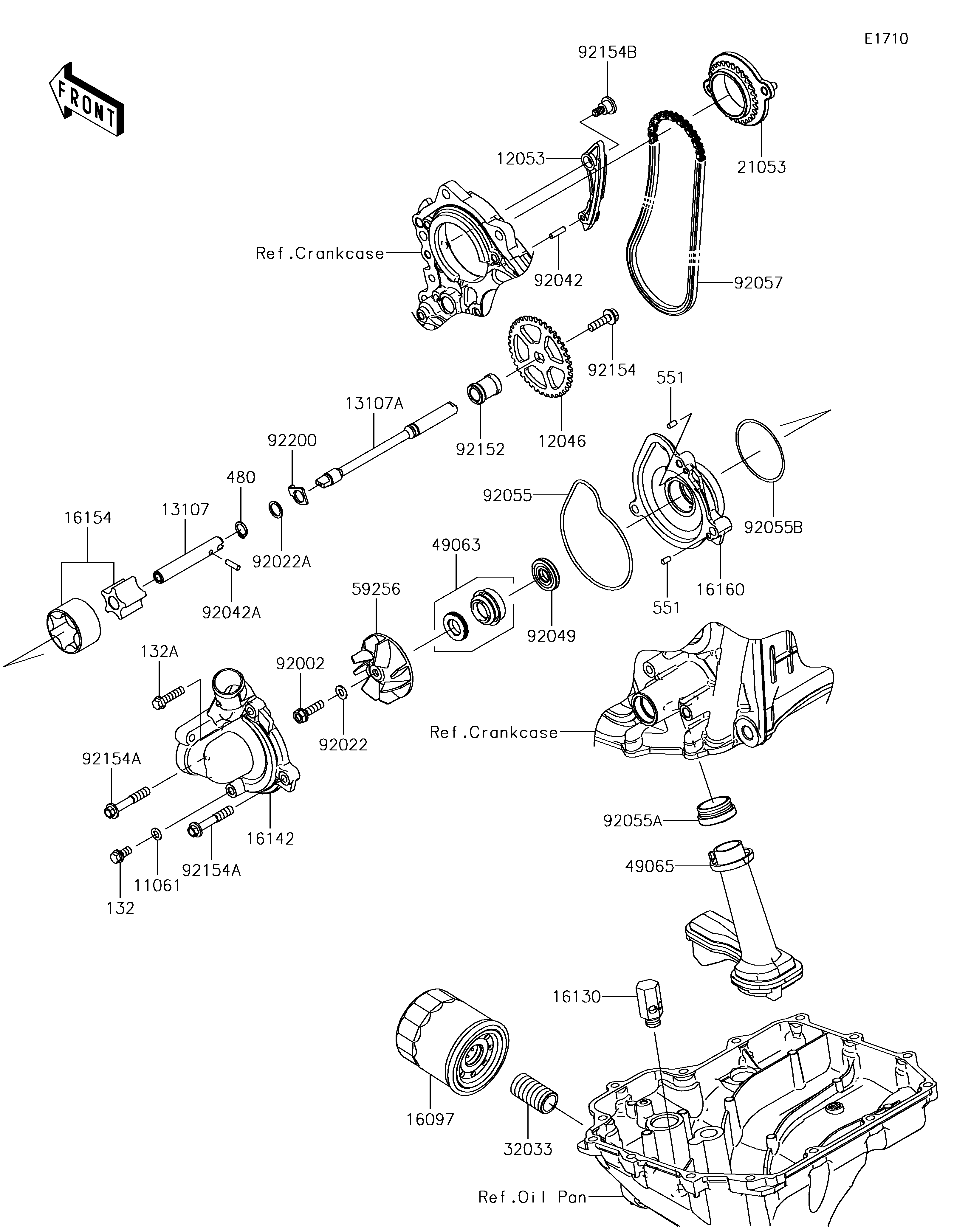

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11061 11061-0107 1
SPROCKET,OIL PUMP,38T 12046 12046-0094 1
GUIDE-CHAIN 12053 12053-0181 1
SHAFT,LH 13107 13107-0230 1
SHAFT,RH 13107A 13107-0838 1
BOLT-FLANGED-SMALL,6X12 132 132BC0612 1
BOLT-FLANGED-SMALL,6X25 132A 132BC0625 1
FILTER-ASSY-OIL 16097 16097-0011 1
VALVE-ASSY-RELIEF 16130 16130-0005 1
COVER-PUMP,WATER 16142 16142-0734 1
ROTOR-PUMP 16154 16154-0708 1
BODY,WATER PUMP 16160 16160-0226 1
SPROCKET-ASSY,PUMP DRIVE,29T 21053 21053-0007 1
PIPE,OIL FILTER 32033 32033-1535 1
CIRCLIP-TYPE-C,11MM 480 480J1100 1
SEAL-MECHANICAL,WATER 49063 49063-1055 1
FILTER-OIL 49065 49065-0042 1
PIN-DOWEL,4X8 551 551A0408 2
IMPELLER 59256 59256-0011 1
BOLT,6X22 92002 92002-1154 1
WASHER,6.1X12X1 92022 92022-077 1
WASHER,11.2X15X1 92022A 92022-311 1
PIN,DOWEL,4X15.8 92042 92042-014 1
PIN,DOWEL,4X13.8 92042A 92042-030 1
SEAL-OIL 92049 92049-0778 1
RING-O,WATER PUMP 92055 92055-0208 1
RING-O,OIL FILTER 92055A 92055-1503 1
RING-O,52.6X2.4 92055B 92055-1520 1
CHAIN,PUMP DRIVE 92057 92057-0674 1
COLLAR 92152 92152-0865 1
BOLT,FLANGED,6X22 92154 92154-0387 1
BOLT,FLANGED,6X40 92154A 92154-1890 2
BOLT,6MM 92154B 92154-1891 1
WASHER 92200 92200-1771 1
