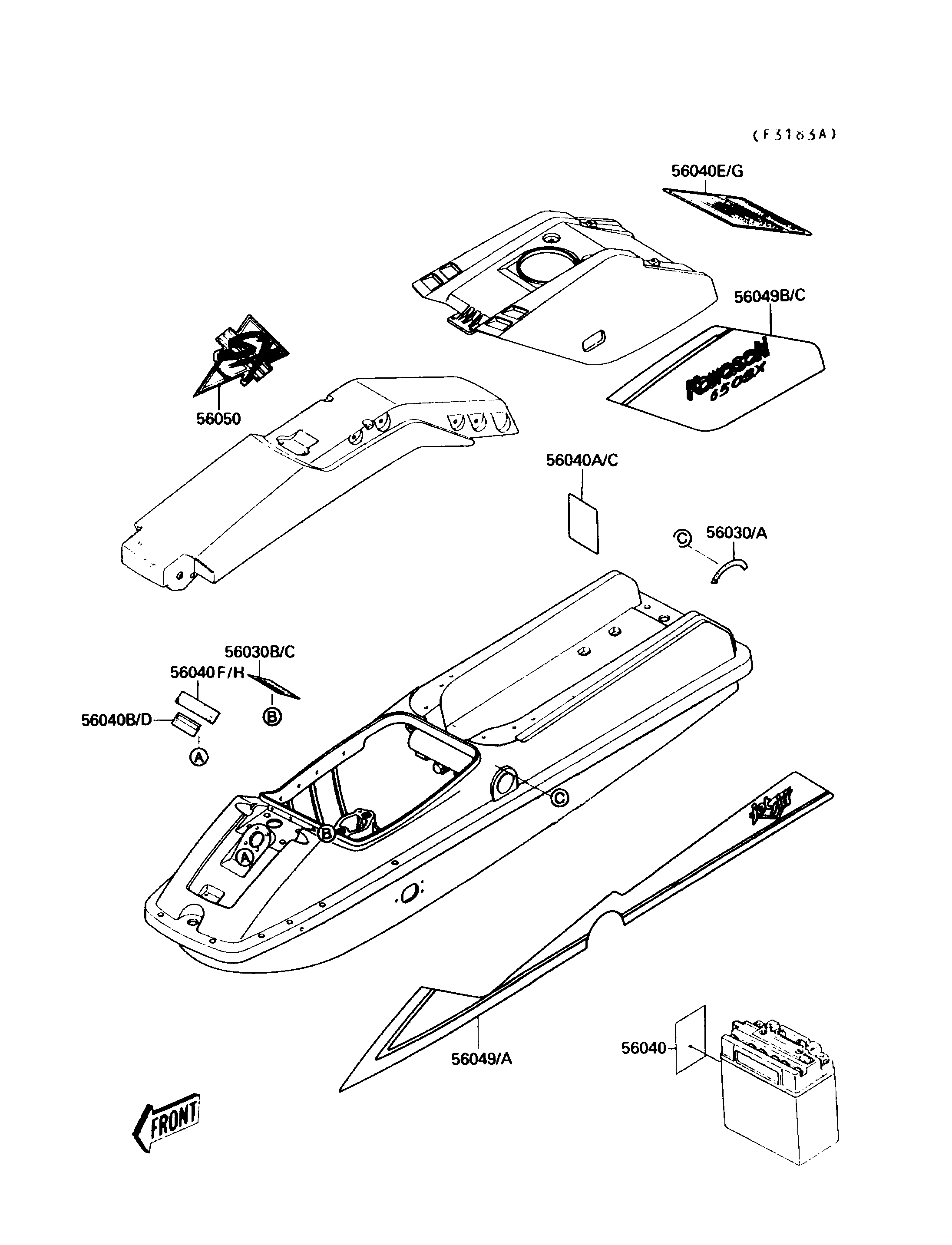

56030
56030A
56030B
56030C
56040
56040A
56040B
56040C
56040D
56040E
56040F
56040G
56040H
56049
56049A
56049B
56049C
56050
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,FIRE EXTINGUISHER 56030 56030-3759 1
LABEL,FIRE EXTINGUISHER(FRENCH 56030A 56030-3760 1 CN
LABEL,OIL RECOMMENDED 56030B 56030-3761 1
LABEL,OIL RECOMMENDED(FRENCH) 56030C 56030-3765 1 CN
LABEL,BATTERY CAUTION(FRENCH) 56040 56040-1106 1 CN
LABEL-WARNING,JET PUMP 56040A 56040-3798 1
LABEL-WARNING,FUEL 56040B 56040-3802 1
LABEL,NOZZLE CHECK(FRENCH) 56040C 56040-3807 1 CN
LABEL,FUEL SUPPLY(FRENCH) 56040D 56040-3809 1 CN
LABEL-WARNING,IMPORTANT SAFETY 56040E 56040-3814 1
LABEL-WARNING,BREAK IN 56040F 56040-3824 1
LABEL-WARNING,(FRENCH) 56040G 56040-3864 1 CN
LABEL,OIL CAUTION(FRENCH) 56040H 56040-3865 1 CN
PATTERN,HULL,LH 56049 56049-1333 1
PATTERN,HULL,RH 56049A 56049-1334 1
PATTERN,ENGINE HOOD,LH 56049B 56049-1335 1
PATTERN,ENGINE HOOD,RH 56049C 56049-1336 1
MARK,SX 56050 56050-1431 1
