13107
13272
13280
21176
21176A
21176B
25031
27003
311
311
41073
92002
92009
92022
92071
92152
92160
92200
92200
92200A
92200A
92210

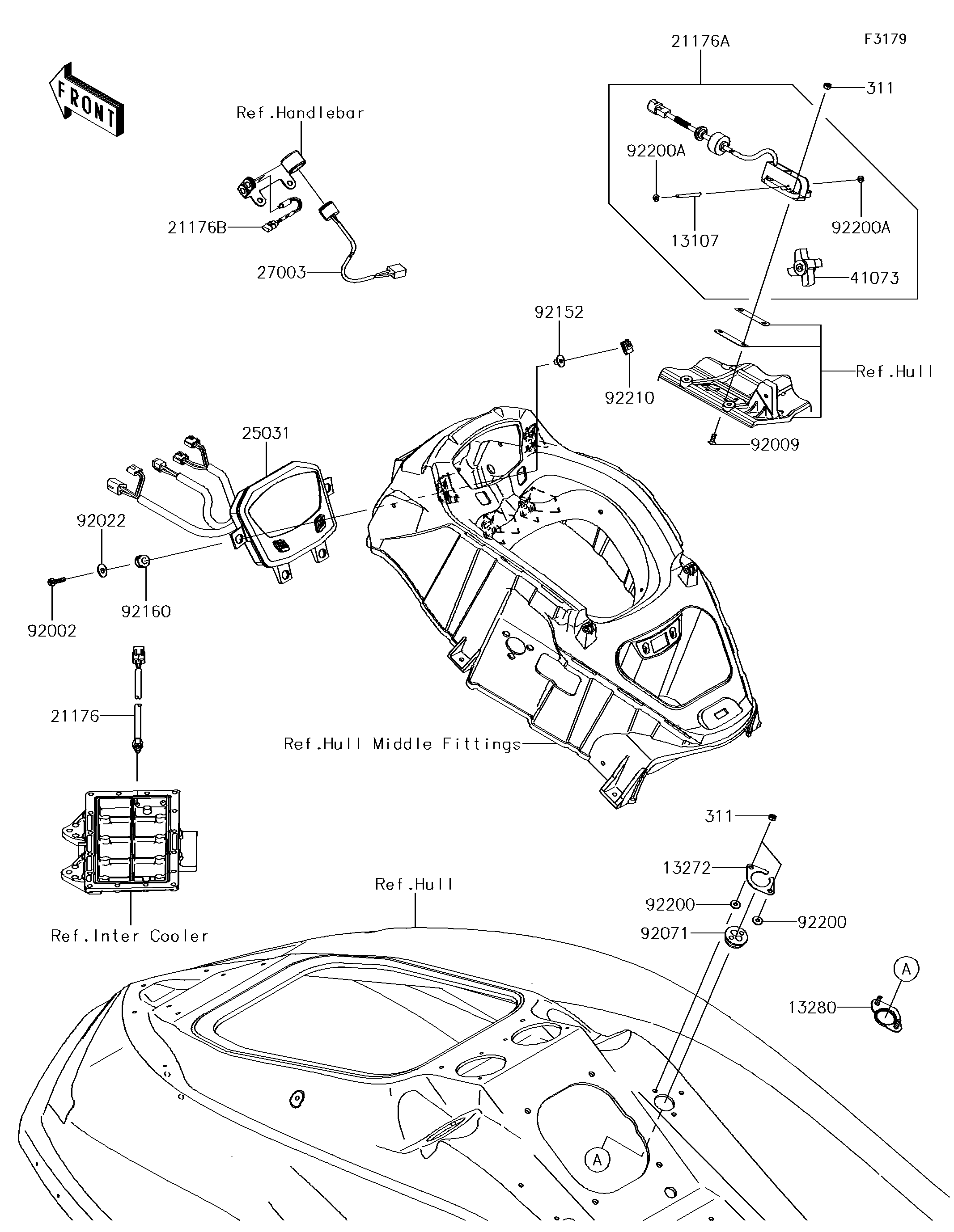

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT 13107 13107-3807 1
PLATE 13272 13272-3729 1
HOLDER 13280 13280-0724 1
SENSOR,TEMP 21176 21176-0072 1
SENSOR,SPEED 21176A 21176-3775 1
SENSOR,AIR TEMP 21176B 21176-3778 2
METER-ASSY 25031 25031-0689 1
HORN 27003 27003-3706 1
NUT-HEX,6MM 311 311R0600 6
WHEEL-ASSY,PADDLE 41073 41073-3701 1
BOLT,6X25 92002 92002-3714 4
SCREW,6X16 92009 92009-3703 4
WASHER,6.5X20X1.5 92022 92022-3710 4
GROMMET,HARNESS 92071 92071-3790 1
COLLAR 92152 92152-3755 4
DAMPER,10X20X12 92160 92160-1167 4
WASHER,6.5X16X2.0 92200 92200-1543 2
WASHER 92200A 92200-3805 2
NUT,6MM 92210 92210-3768 4
