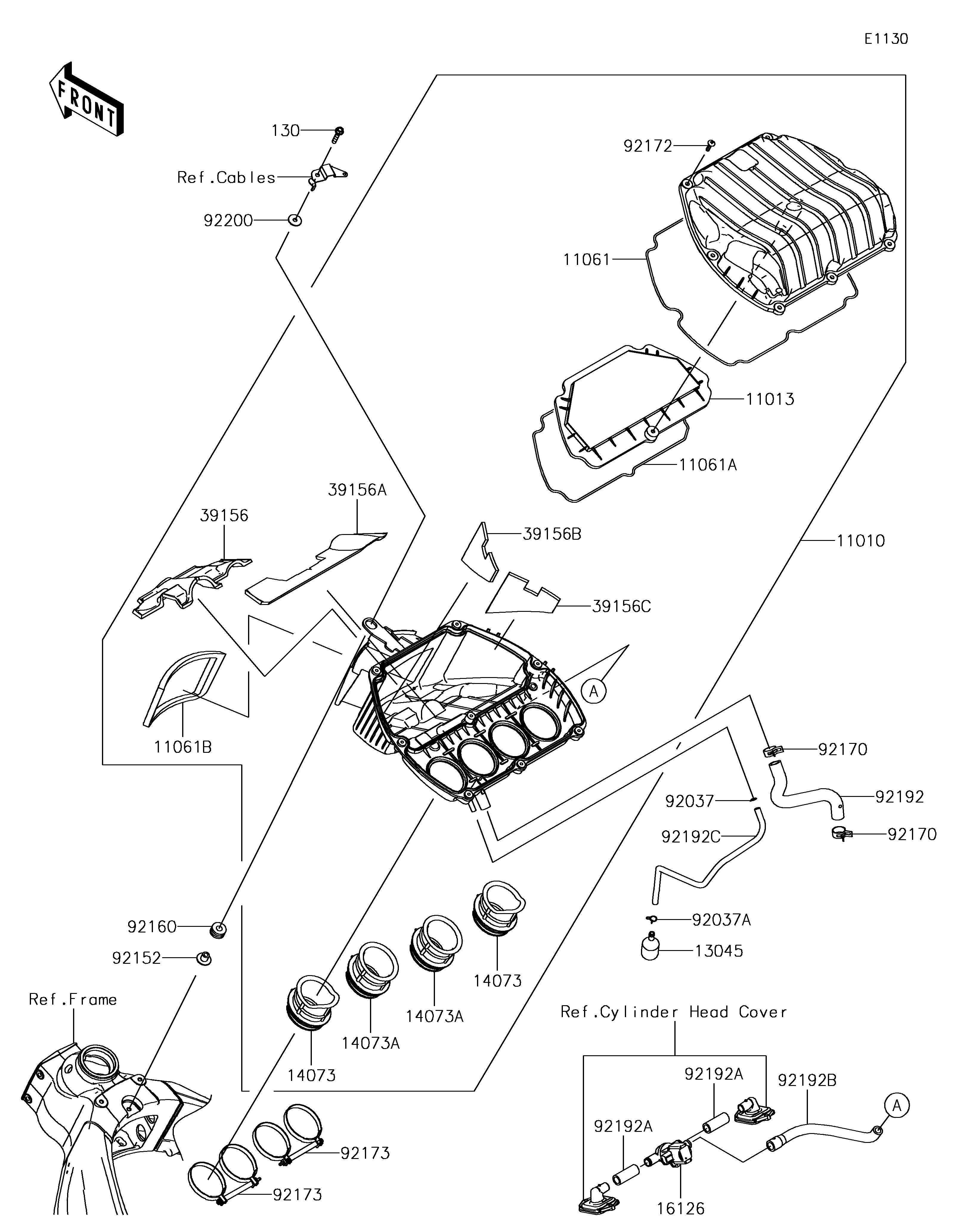

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-0879 1
ELEMENT-AIR FILTER 11013 11013-0036 1
GASKET,UPP CASE 11061 11061-0379 1
GASKET,LWR CASE 11061A 11061-0380 1
GASKET,FRAME-A/C 11061B 11061-0381 1
BOLT-FLANGED,6X30 130 130BB0630 1
RECEIVER-OIL 13045 13045-1057 1
DUCT,FUNNEL #1&#4 14073 14073-0742 2
DUCT,FUNNEL #2&#3 14073A 14073-0766 2
VALVE,AIR SWITCHING 16126 16126-0745 1
PAD,FR 39156 39156-0513 1
PAD,RR 39156A 39156-0514 1
PAD,LH 39156B 39156-0515 1
PAD,RH 39156C 39156-0516 1
CLAMP,TUBE 92037 92037-010 1
CLAMP 92037A 92037-1712 1
COLLAR,6.5X10.5X13.1 92152 92152-0547 1
DAMPER 92160 92160-1162 1
CLAMP 92170 92170-1060 2
SCREW 92172 92172-1072 8
CLAMP 92173 92173-0115 2
TUBE,BLOWBY 92192 92192-0429 1
TUBE,12X17.6X44 92192A 92192-0851 2
TUBE,ASV-A/C 92192B 92192-0879 1
TUBE,6X9X430 92192C 92192-1254 1
WASHER,6.5X22X1.6 92200 92200-1087 1
